60 Operating Manual
TX2560 M2 / RX2560 M2
Starting up and operation
I Please note the following when operating with tape drives:
If the system is programmed to eject the media automatically, the
accessible drives must not be obstructed.
The drive cover is replaced and the server locked in the reverse order.
6.1.2 Access to the HDD modules (floorstand model)

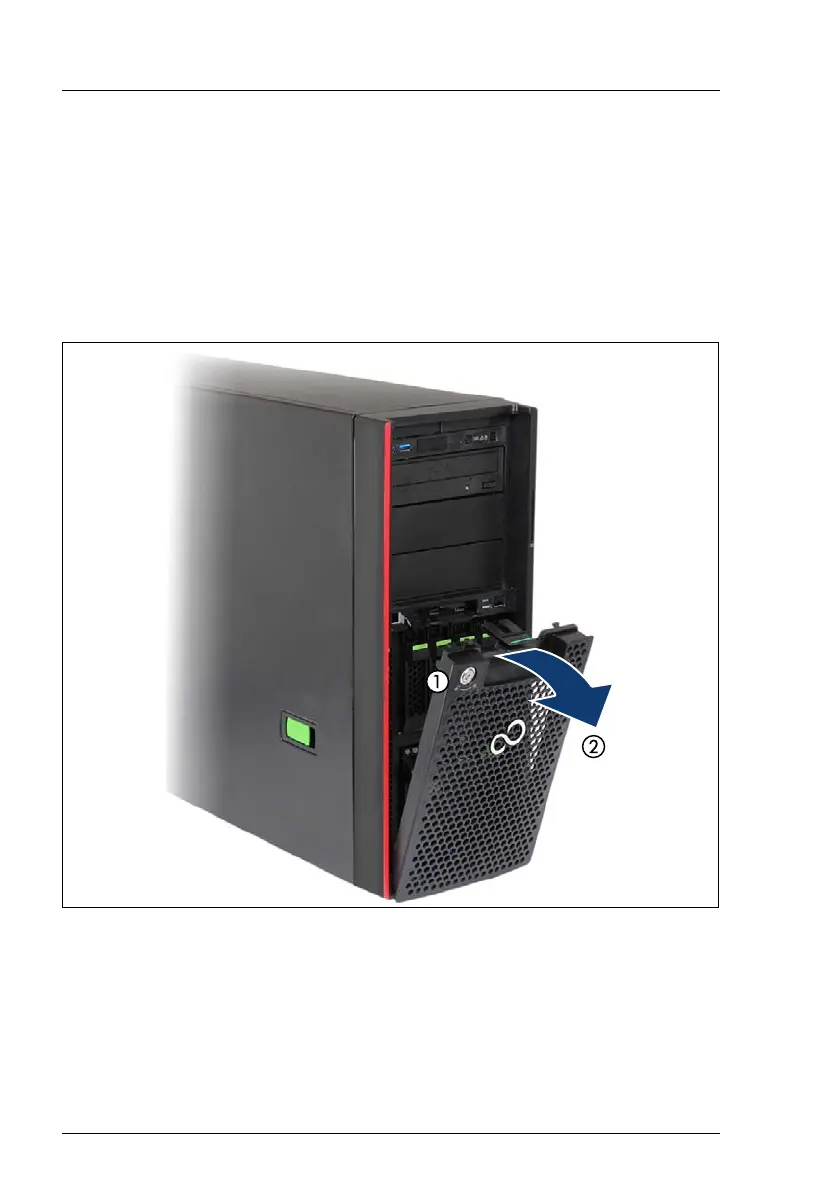

Figure 6: Removing the hard disk cover
Ê Unlock the server (1).
Ê Remove the HDD/SSD cover (2).
The HDD/SSD cover is replaced and the server locked in the reverse order.
