7.3 Replacing the Pick Roller
ScanSnap fi-5110EOXM Operator's Guide 93
Replacing Consumables
7

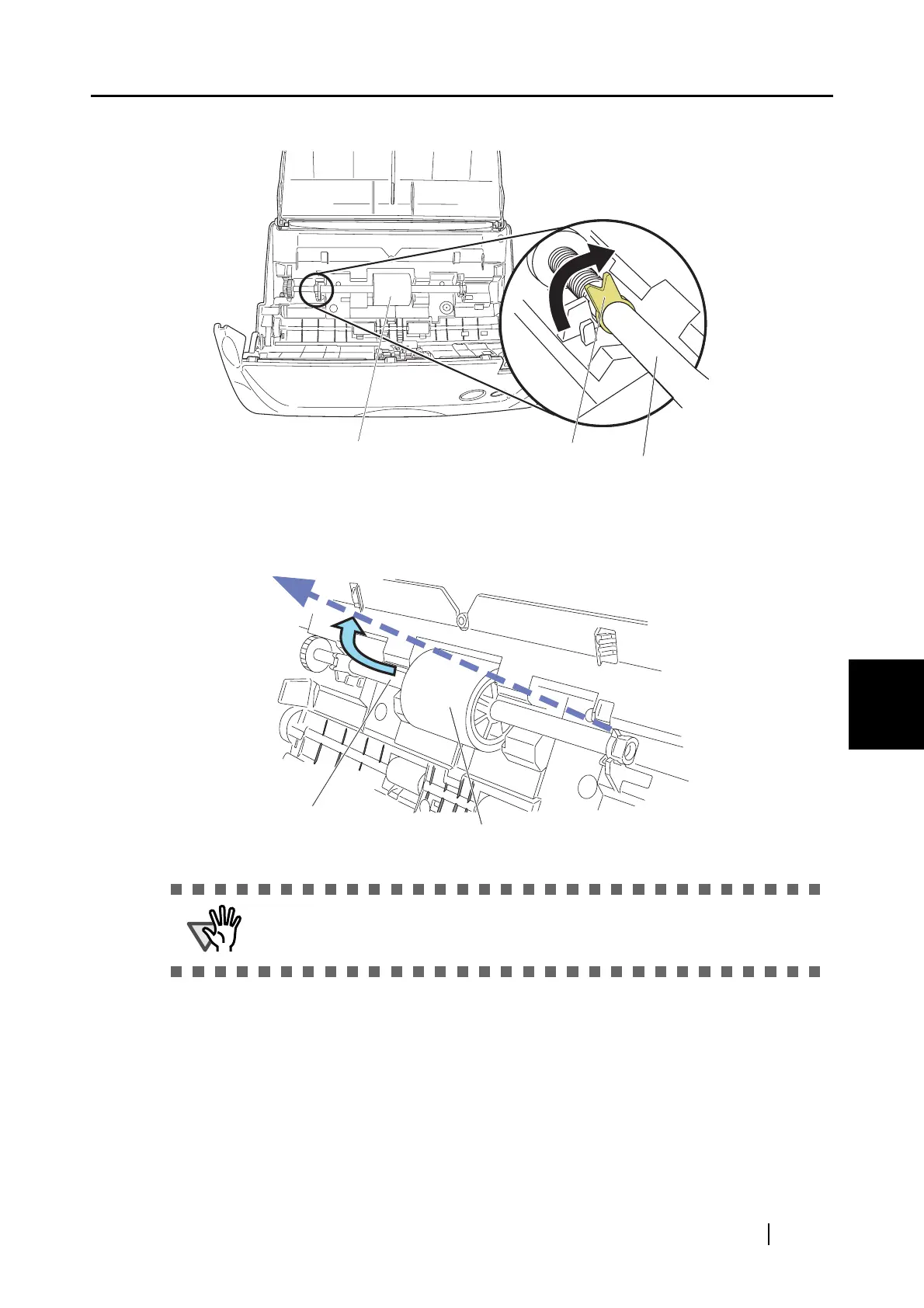

4. Rotate the Pick roller bushing (on the left side).
5. Remove the Pick roller with its shaft.
Hold the left part of the shaft, and raise it to remove the shaft from the scanner while pulling
the shaft to the left.
ATTENTION
If the area around the Pick roller is contaminated by paper debris, it may cause
scanning errors. Remove the dirt using a dry cloth moistened with Cleaner F1.
* Do not use water, neutral detergent or aerosol spray.
Pick roller bushing
Pick roller
Pick roller shaft
Pick roller shaft
Pick roller
