7.3 Replacing the Pick Roller
ScanSnap fi-5110EOXM Operator's Guide 95
Replacing Consumables
7

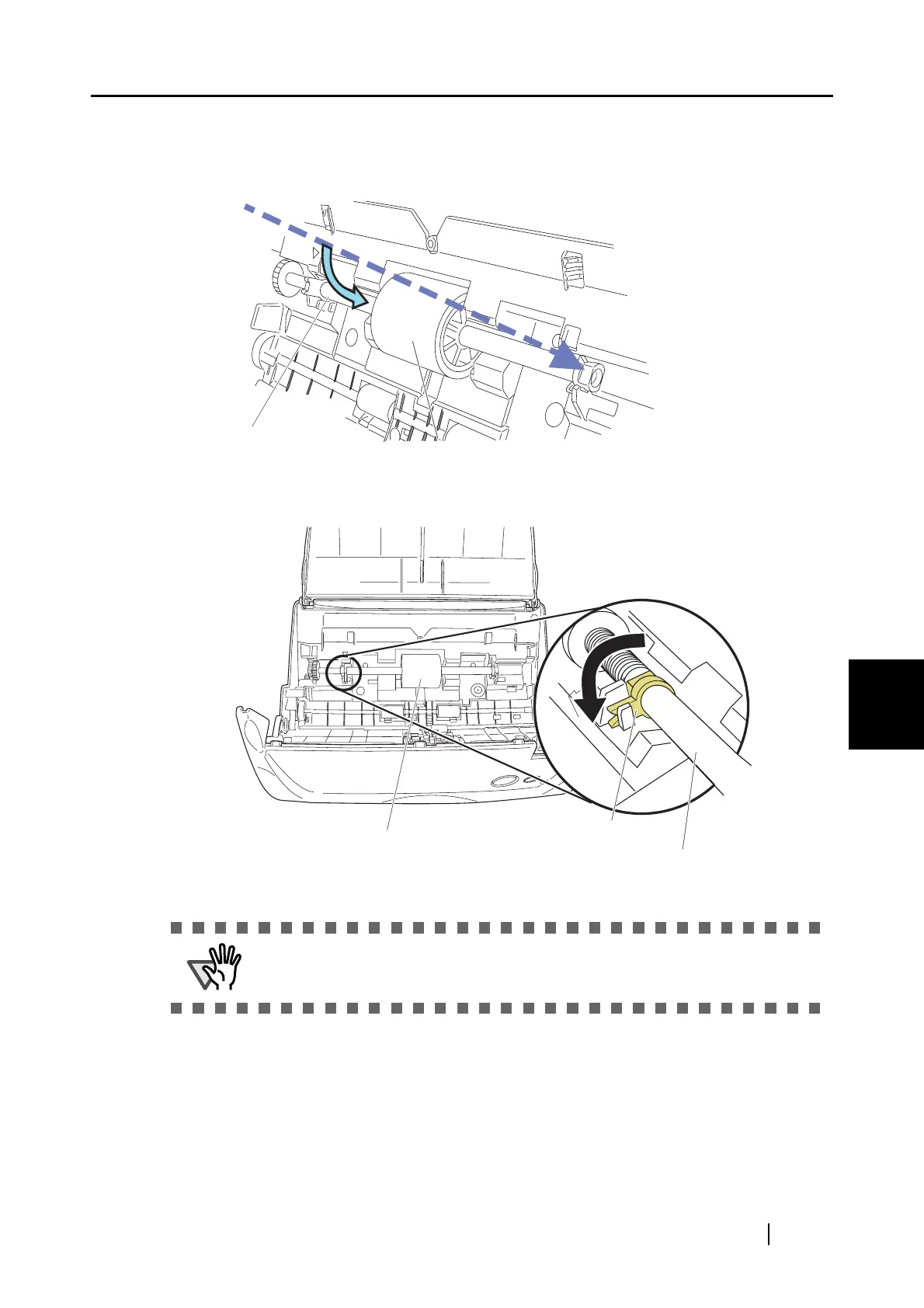

8. Install the Pick roller with its shaft to the scanner.
Insert the right end of the shaft to the roller bushing (right), and set the shaft to the slot while
lowering it.
9. Rotate the roller bushing (on the left) by rotating it as shown below.
ATTENTION
Make sure that the Pick roller is fully attached. Otherwise, document jams or
other feeding errors may occur.
Pick roller
Pick roller shaft
Pick roller
Pick roller shaft
Pick roller bushing
