4.2.2 Rear panel

The rear panel of the tape library provides access to the SAS or Fibre Channel (FC)

connector, tape drives, the power connector, LAN, and to the serial and USB port.

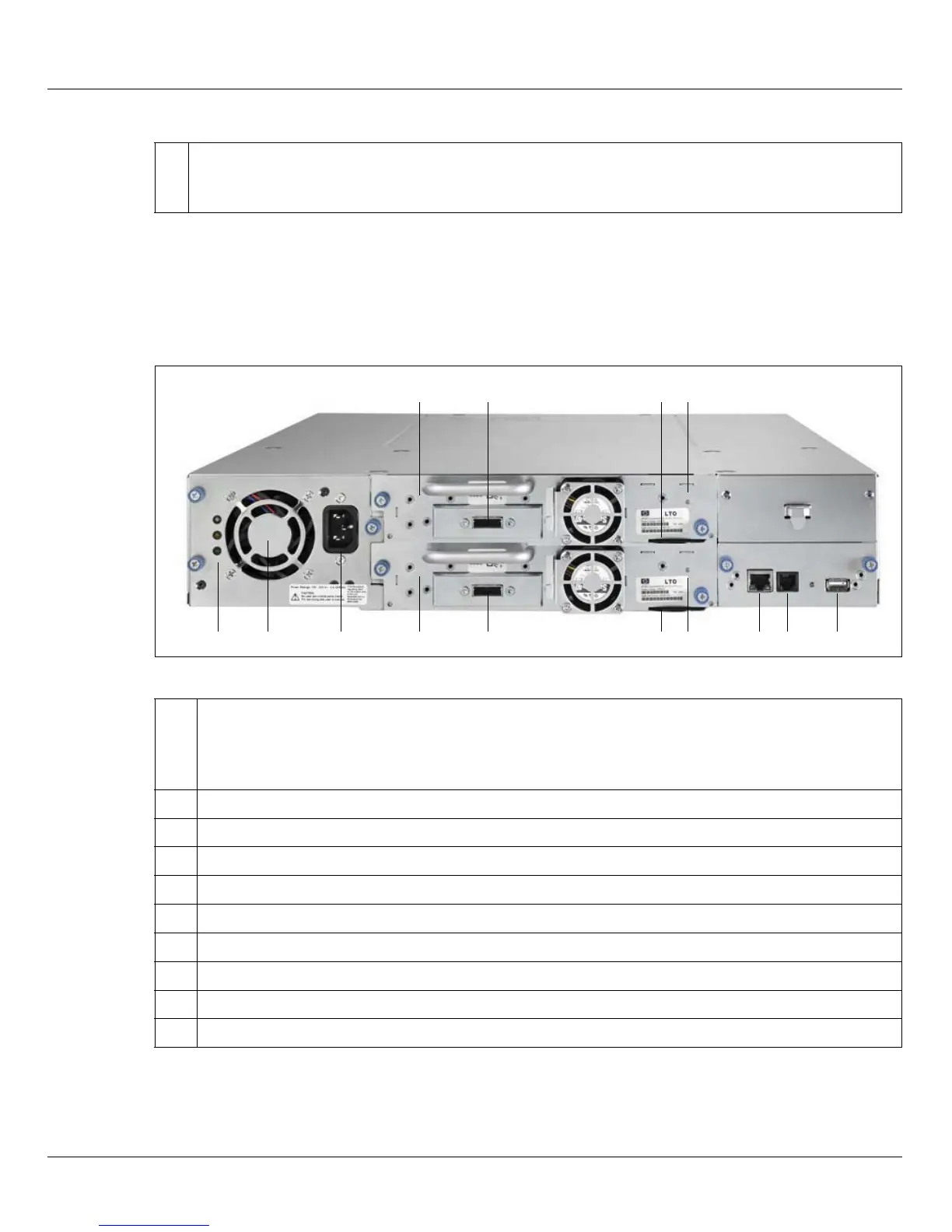

Figure 14: ETERNUS LT40 S2 rear panel (SAS variant with two drives)

10 Control key buttons CANCEL and ENTER.

The cancel button is used to cancel a user action and return to the last OCP menu item.

The enter button is used to go to a sub menu or execute an action.

1 Power Supply LED’s from top:

– blue LED on >> AC connected

– yellow LED on >> degraded fan

– green LED on >> Power good

2Air vent

3 Power connector

4 Tape drives

5 SAS or Fibre Channel (FC) connector for each drive

6 Product label foil for each drive

7 Tape Drive LED for each drive

8 LAN port (connected to the Net Unit)

9 Serial port (Customer Support)

10 USB port (Customer Support)

1 2 3 4 5 6 87 9 10

45 67
