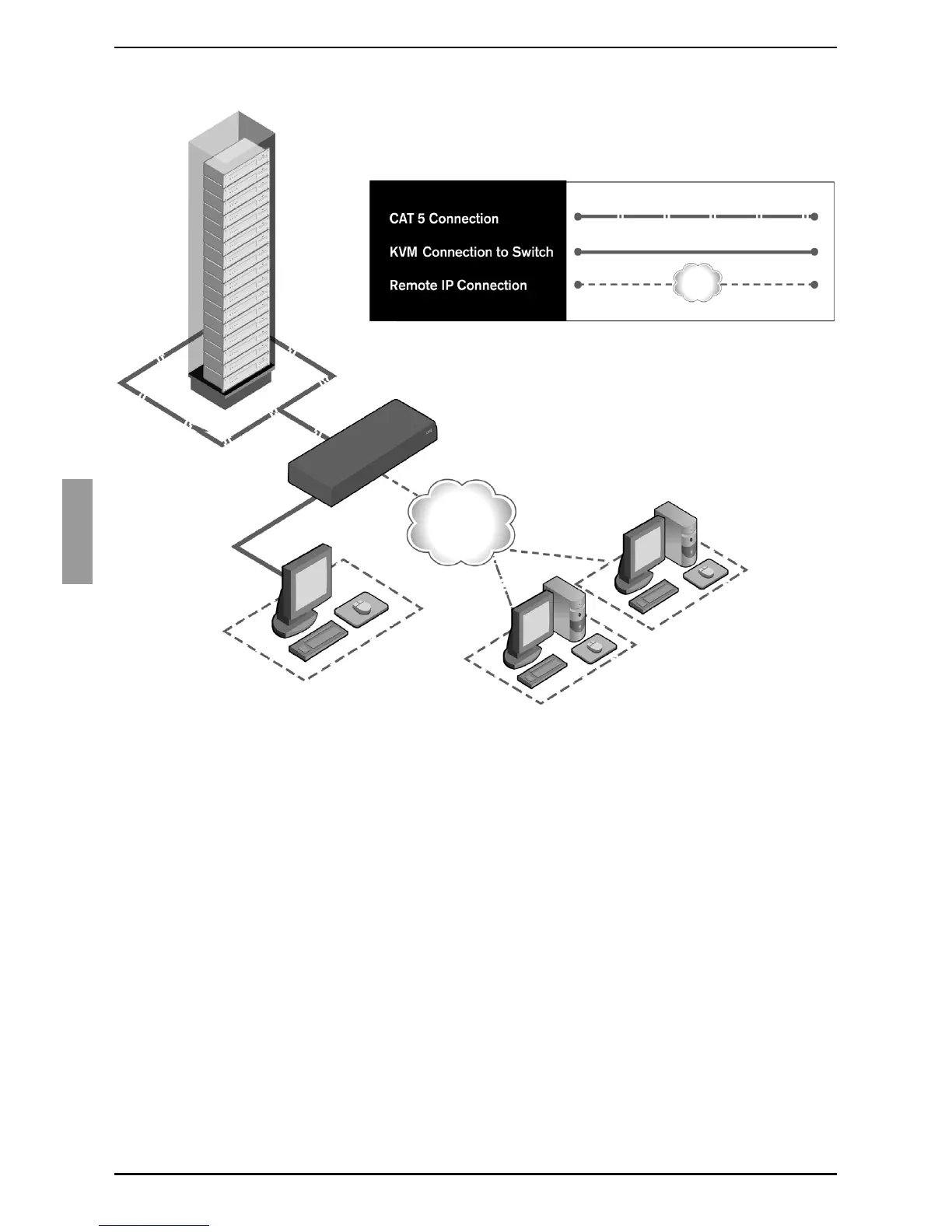

Figure 4 illustrates one possible configuration for the KVM s3-1621 appliance.
Figure 4: Example KVM s3-1621 appliance configuration
2.1.2 Setting up the network
The KVM s3-1621 appliance and KVM-IAs use IP addresses to uniquely identify the
appliances and the target devices. These appliances support both Dynamic Host
configuration Protocol (DHCP) and static IP addressing. To avoid confusion, have IP
addresses that are reserved for each appliance and remain static while the appliances
are connected to the network. For additional information on setting up the KVM s3-1621
appliance using the KVM s3 Client, and for information on how the KVM s3-1621
appliance uses TCP/IP, see the
KVM s3 Client Installation and User’s Guide .
Digital user
Analog user
KVM s3-1621
Ethernet
Digital user
Rack of
target servers
appliance
