Basic operations
34
590-591-609D
Press Print Screen. The Main window opens.
Click Commands - Display Versions - Upgrade. The Upgrade window opens.
Click Upgrade. A Warning window opens. Clicking OK opens the Upgrade Process
window. The progress of the upgrade is indicated in the Programmed field.
3.11.4 Viewing the display configuration
Use the Display configuration window to view the current configuration of the switching
system.
Click Commands - Display config. The Display configuration window opens and
lists the current system configuration values.
3.11.5 Viewing and disconnecting user connections
You can view and disconnect users from target devices through the User Status
window. The user (U) is always visible; however, you can display either the target
device name or EID number to which a user is connected. If there is no user currently
connected to a channel, the User and Server Name fields are blank.
3.11.5.1 Viewing current user connections
Click Commands - User Status. The User Status window opens.

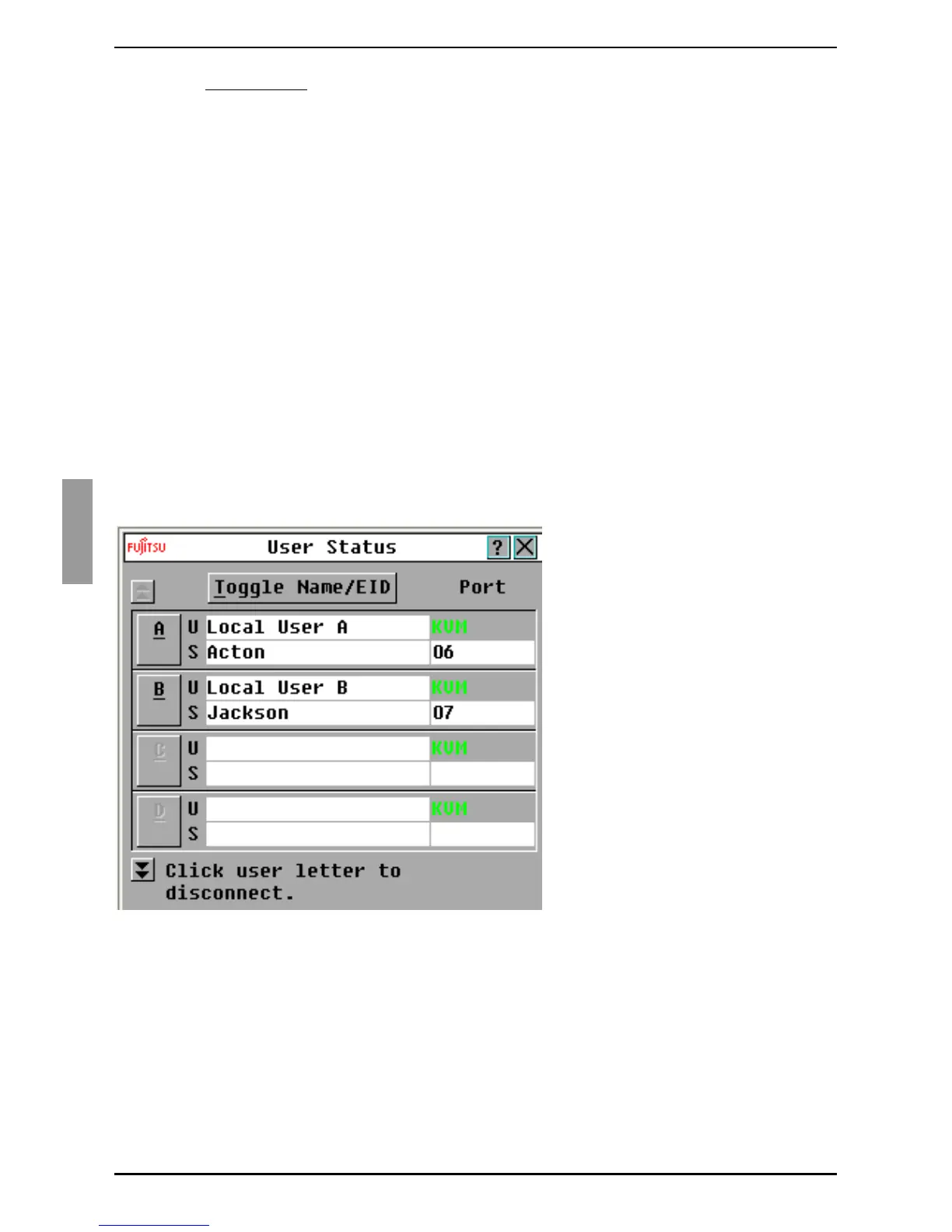

Figure 21: User Status window
3.11.5.2 Disconnecting a user
From the User Status window, click the letter that corresponds to the user to
disconnect. The Disconnect
window opens.
Complete one of the following steps:
•Click OK to disconnect the user and return to the User Status window.
-or-
