3 Basic operations
3.1 Controlling the switching system from the
analog port
The KVM s3-1621 appliance includes ports on the rear panel that you can use to
connect a keyboard, monitor, and mouse to the appliances for direct analog access.
The KVM s3-1621 appliance uses the OSCAR interface, which has intuitive menus to
configure the switching system and select target devices. Switches can be identified by
customizable names.
3.2 Starting the OSCAR interface
To view, configure, and control target devices in the switching system from the OSCAR
interface from a KVM connection to the analog port, perform one of the following
actions:
Press Print Screen to start the OSCAR interface.
-or-
Press the Control
, Alt, or Shift key twice within 1 second to start the OSCAR
interface.
You can use any of these key sequences instead of pressing Print Screen
in any
procedure in this document. To specify which key sequences can be used to start the
OSCAR interface, click Setup - Menu.

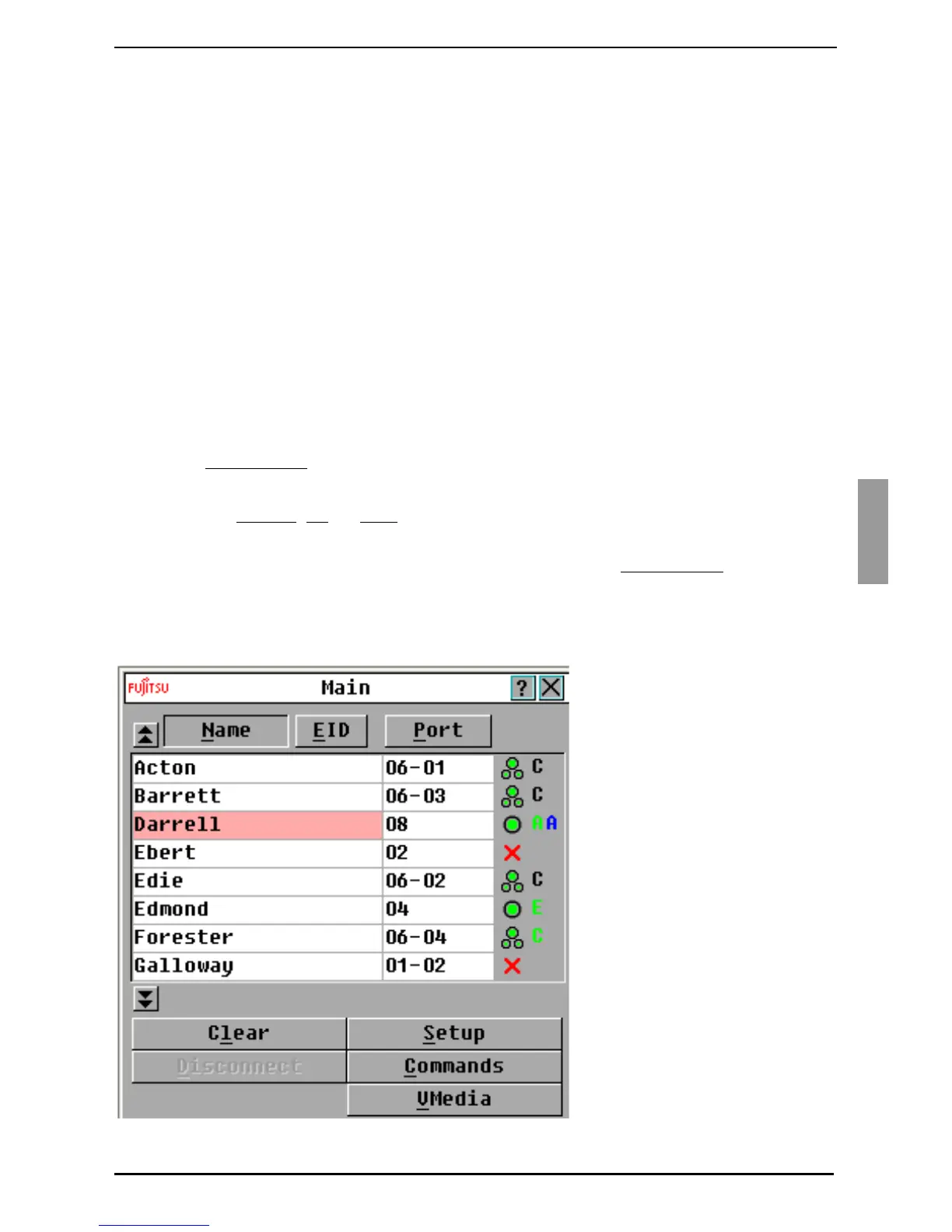

The following illustration is an example of the Main window of the OSCAR interface.
Figure 6: Example of a Main window
