Basic operations
24
590-591-609D
For example, if the earlier appliance model is connected to ARI port 6, the earlier
appliance model port is listed as 06, and the target devices that are under it are
numbered sequentially as 06-01, 06-02, and so on.
3.9.2.2 Assigning a switch type
In the Devices window, select the port number.
Click Modify. The Device Modify window opens.

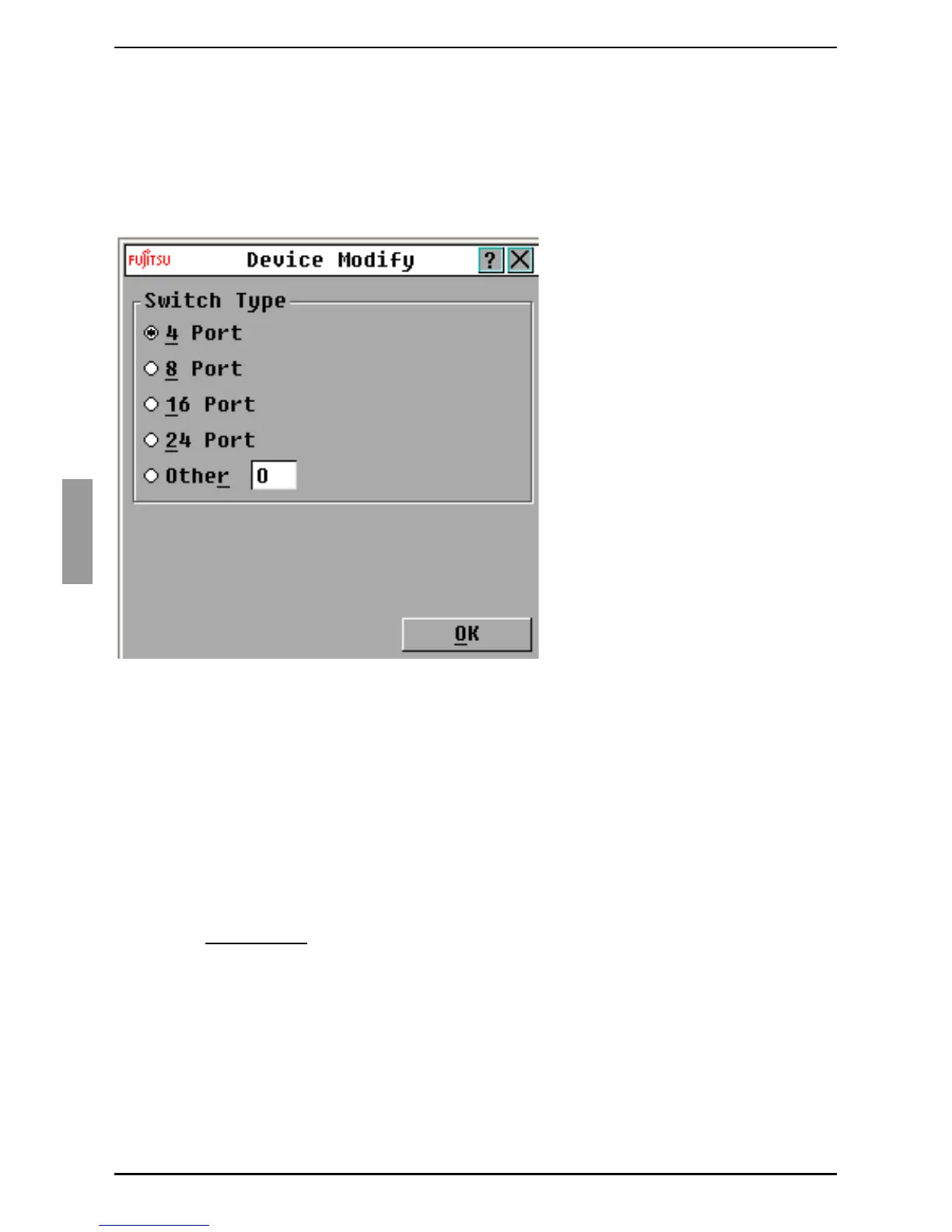

Figure 11: Device Modify window
Select or type the number of ports that are supported by the tiered earlier appliance
model and click OK.
Repeat steps 1 to 3 for each port for which you want to assign a switch type.
Click OK in the Devices window to save settings.
3.9.3 Changing the display behavior
Use the Menu window to change the order of the target devices and set a screen delay
for the OSCAR interface. The display order setting affects the order in which target
devices are listed in several windows, including the Main and Devices windows.
Press Print Screen to start the OSCAR interface. The Main window opens.
Click Setup - Menu. The Menu window opens.
