CHAPTER2 Dependence Functions
2.4.8.1.1 Trace Data Display Examples (RAW Data)
This section describes trace data that is displayed in the RAW data mode.
■ RAW Data Display
This format displays frames that are output from the emulator without analyzing them.

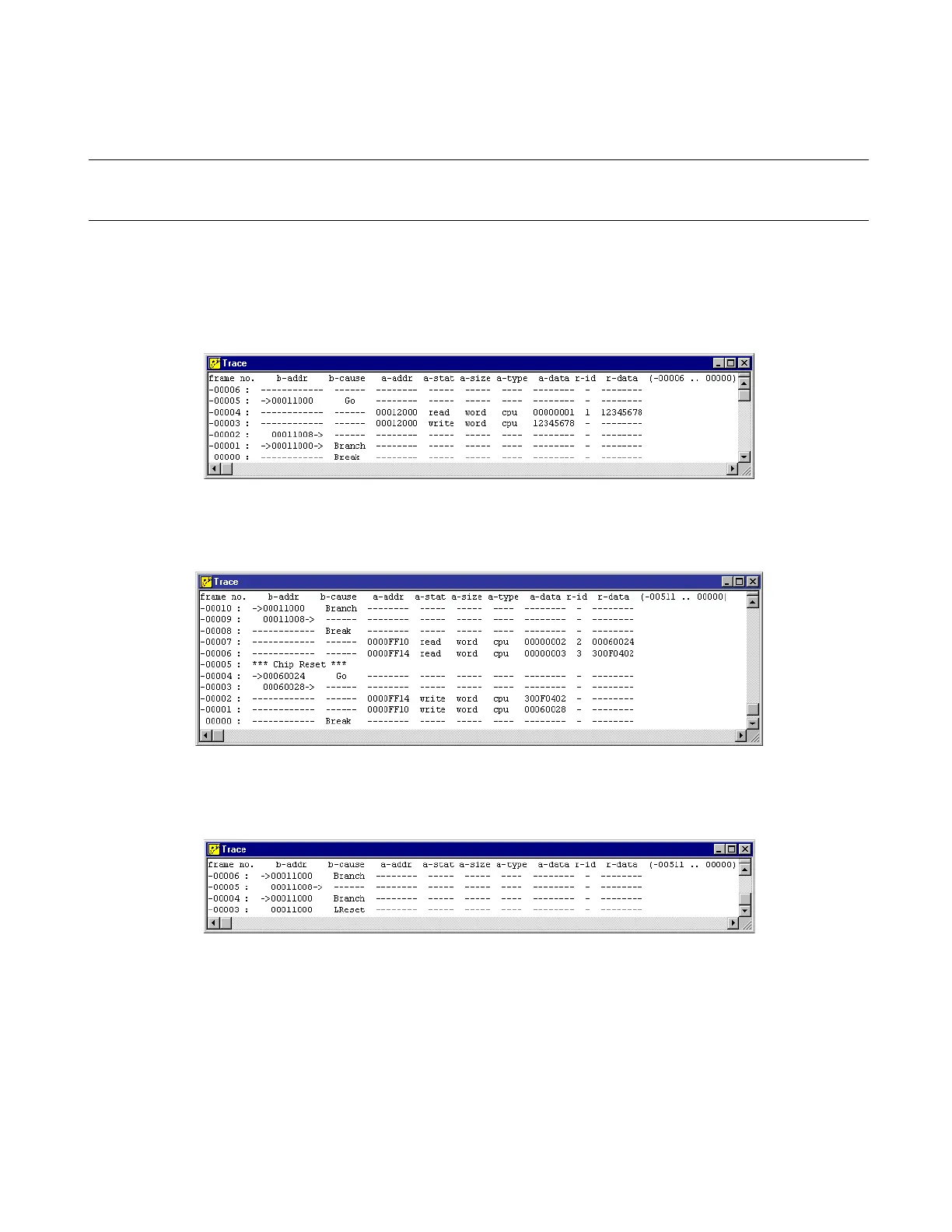

Figure 2.4-11 shows a RAW data display example.
Figure 2.4-11 RAW Data Display
If a chip reset has occurred, "***Chip Reset***" appears next to "frame no" as shown in Figure 2.4-12 .
This is a frame that is processed and output, not a frame that is found when a chip reset is detected.
Figure 2.4-12 RAW Data Display (When a Chip Reset Has Occurred)
If a low-level reset has occurred, "LReset" appears in "b-cause" as shown in Figure 2.4-13 . The address
where a low-level reset has occurred is displayed in "b-addr".
Figure 2.4-13 RAW Data Display (When a Low-Level Reset Has Occurred)
