Working with the Table t PC

Remove the SIM card from the SIM card carrier (3).

Push the SIM ca rd carrier back into its lower mounting slot (4).

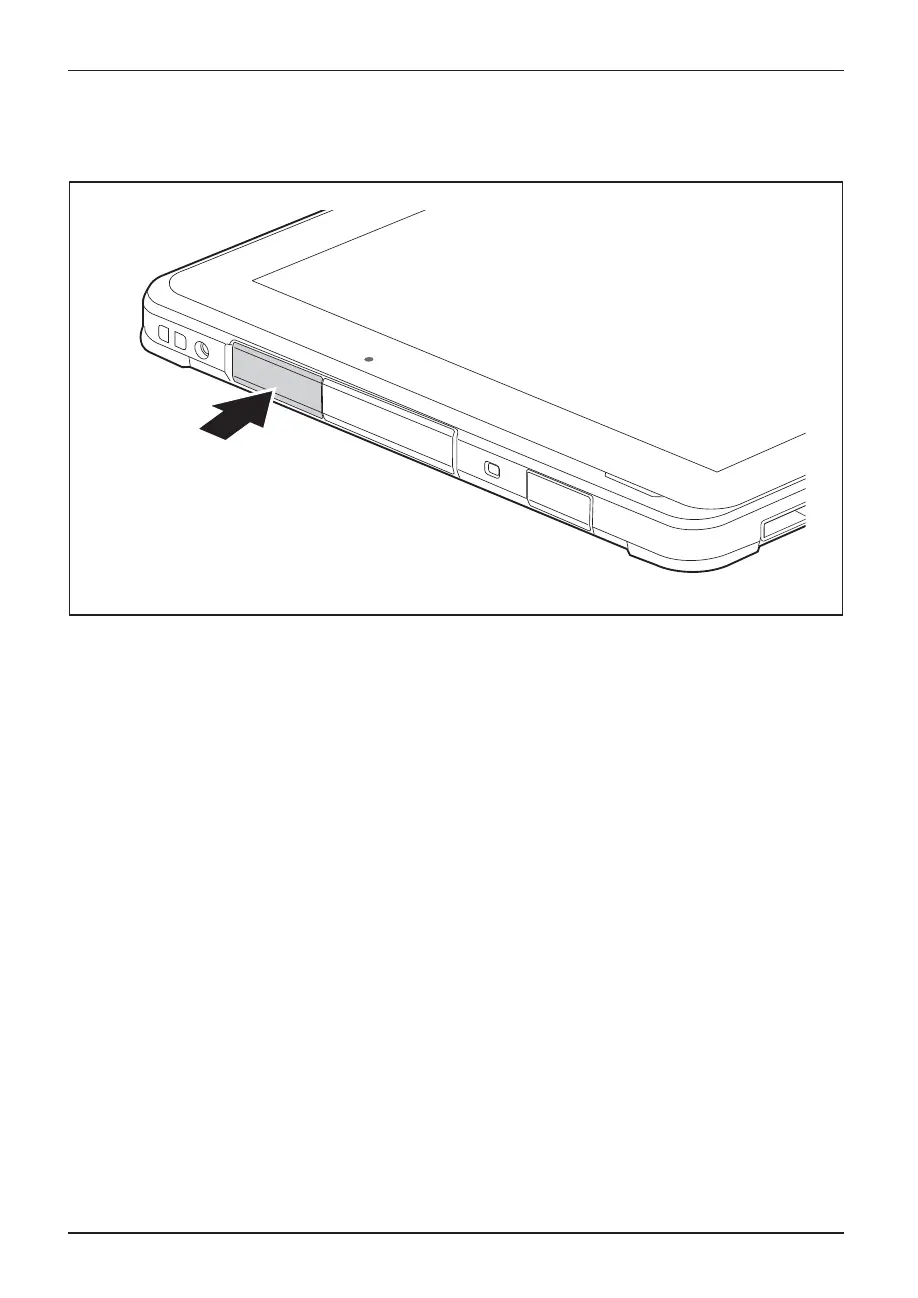

Ź Close the SD memory and SIM card slot cover (5).

42 Fujitsu
