Fujitsu UTY-RVNUM User Manual

En-7

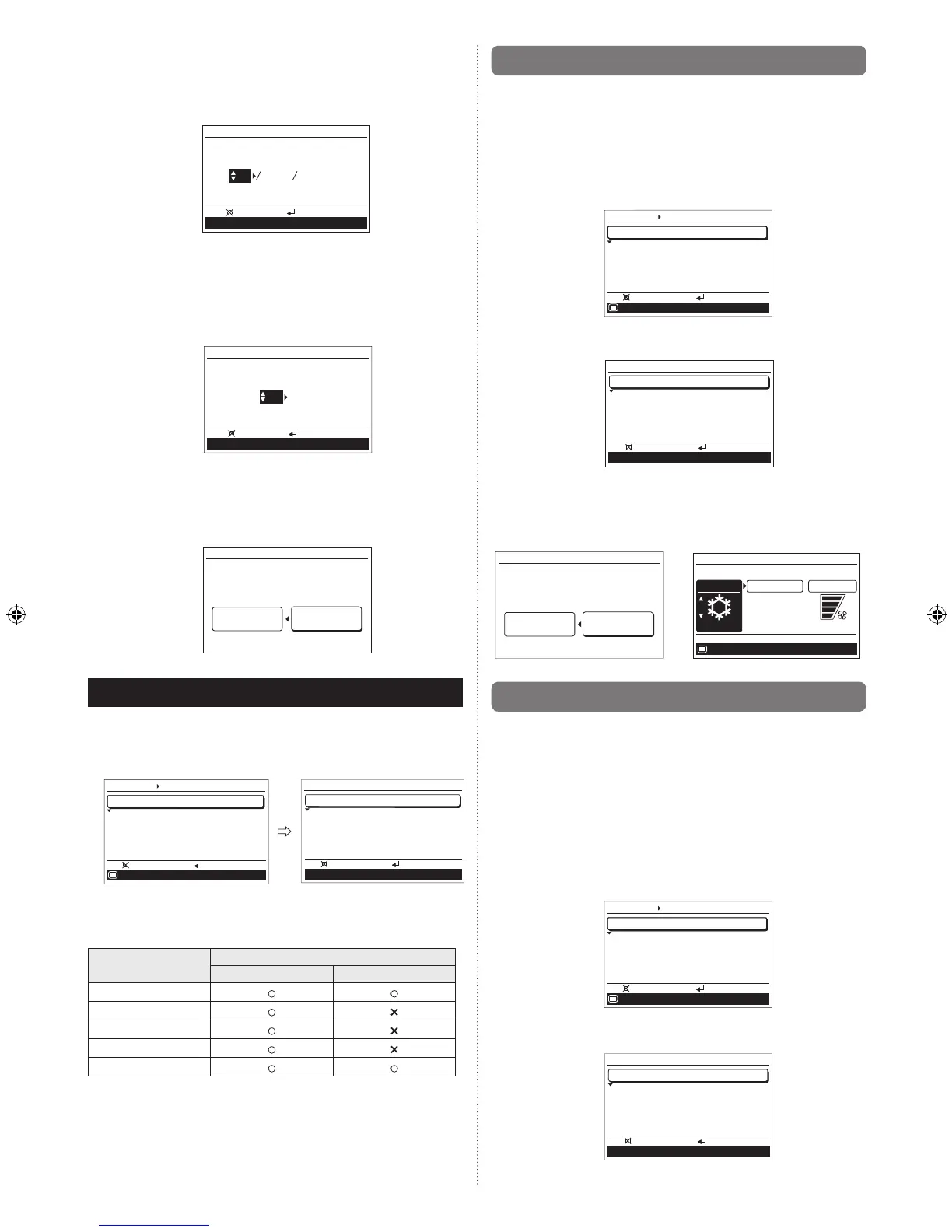

4
Set the “Day”, “Month”, and “Year”.
Switch the setting item with [Cursor button (Left/Right)], and adjust
with [Cursor button (Up/Down)].
When [Cancel button] is pressed, it returns to the “Change display
format” screen.
Year Day
Monday
08 2012
Month
Date
20
OK:
Cancel:
When [Enter button] is pressed, the “Time” screen is displayed.
5
Set the “hour” and “min”.
Switch the setting item by [Cursor button (Left/Right)], and adjust with
[Cursor button (Up/Down)].
“Min” can be set quickly if the button is pressed continuously.
When [Cancel button] is pressed, it returns to the “Date” screen.
min
00 AM
hour
Time
OK:
Cancel:
10:
When [Enter button] is pressed, the “Conrmation” screen is displayed.
6
When setting is completed, select “Yes” with [Cursor button (Left/
Right)], and press [Enter button].
When correcting a setting, set it again as it returns to the “Language”
screen when “No” is selected and press [Enter button].
Initial setting will be ended. OK?
No Yes
9. SERVICE SCREEN SETTING
When [Menu button] is pressed twice while “Monitor” screen is displayed, it
switches to the “Submenu” screen.
Press the [Screen switch button (Left)] and [Screen switch button (Right)]
simultaneously for 5 seconds to switch to “Service” screen.
Back:
Setting:
Date and time
Submenu
[
1/2
]
Monitor
Screen
Filter sign
R.C. sensor control
Room temp. display
Off
Off
Mo 10:00AM
Back : Setting:
Service
Mo 10:00AM
Function setting
Error history
I.U.address verification
Version
Test run
(R.C. Sensor control : Remote Controller sensor control)
(I.U.address verication : Indoor Unit address verication)
Service screen
Function name
Setting
Primary unit Secondary unit
Test run
Function setting
Error history
I.U.address verication
Version
9.1. Test run
If the unit is operating, turn it off.•
Test run stops in 60 minutes.• When the [On/Off button] is pressed during
the test run, the test run will be canceled.
After completing the test run, wait enough until starting the operation.•
1
When [Menu button] is pressed twice while “Monitor” screen is dis-
played, it switches to the “Submenu” screen.
If [Menu button] is pressed while the “Submenu” screen is displayed,
the display returns to the “Monitor” screen.
Back:
Setting:
Date and time
Submenu
[
1/2
]
Monitor
Screen
Filter sign
R.C. sensor control
Room temp. display
Off
Off
Mo 10:00AM
2
Press the [Screen switch button (Left)] and [Screen switch button
(Right)] simultaneously for 5 seconds to switch to “Service” screen.
Back : Setting:
Service
Mo 10:00AM
Function setting
Error history
I.U.address verification
Version
Test run
When you select [Test run] with the [Cursor button (Up/Down)] and press the
[Enter button], following conrmation screen is displayed.
To start the test run, select “Yes” with the [Cursor button (Left/Right)], and
press the [Enter button].
In Set temp, test run is displayed.
The test run will be performed. OK?
No Yes
►
Mode
Menu
Cool
Monitor
Set temp.
Fan
High
Mo 10:00AM
Test
run
9.2. Function setting
This procedure changes the function settings used to control the indoor unit
according to the installation conditions. Incorrect settings can cause the
indoor unit to malfunction. This procedure should be performed by author-
ized installation or service personnel only.
Perform the “FUNCTION SETTING” according to the installation conditions
using the remote controller. (Refer to the indoor unit installation manual for
details on the function numbers and setting values.)
Perform the setting during the operation is stopped.
1
When [Menu button] is pressed twice while “Monitor” screen is dis-
played, it switches to the “Submenu” screen.
If [Menu button] is pressed while the “Submenu” screen is displayed,
the display returns to the “Monitor” screen.
Back:
Setting:
Date and time
Submenu
[
1/2
]
Monitor
Screen
Filter sign
R.C. sensor control
Room temp. display
Off
Off
Mo 10:00AM
2
Press the [Screen switch button (Left)] and [Screen switch button
(Right)] simultaneously for 5 seconds to switch to “Service” screen.
Back : Setting:
Service
Mo 10:00AM
Function setting
Error history
I.U.address verification
Version
Test run
9380222057_IM.indb 7 28/8/2555 10:33:45
