19.PARAMETER TABLE
1.10.x.1 Operating range of the analog output:
Defines the operating range of the output voltage. The minimum voltage value corresponds to 0% and the maximum value corresponds to 100%
capacity of the linked compressor or fan.
0 = 0-10V
1 = 0-5V
2 = 1-5V
1.10.x.2 : Minimum value of the analog output
It is the minimum value that the analog output will take when it is actuated. This value is used to limit the minimum rotation speed of the compressor or
fan.
1.10.x.3 :Starting value of the analog output
It is the value of the analog output during the start time.
1.10.x.4 Maximum value of the analog output
It is the maximum value that the analog output will take when it is actuated. This value is used to limit the maximum rotation speed of the compressor or
fan.
1.11 Refrigerant curves: - Point 1 to point 20:
It allows to adjust a customized saturated refrigerant curve. If you want to use a refrigerant that is not included in the list, you can enter the saturation,
pressure, and temperature values. The pressure and temperature values must be entered in ascending order from 1 to 20, that is, values from point 2
must be greater than the values of point 1. A minimum of 10 points must be configured for control. (Point 1 to point 10).
The letter '' x '' represents points 1 to 20.
1.11.x.1 Point x - Pressure of the mapped curve:
Point pressure value.
1.11.x.2 : Refrigerant saturation temperature value
Point temperature value.
Feature
Minimum
Maximum Unit
Standard
Description
1.11.x.1
1.11.x.2
200,0 (392,0)
850,0 (58,6)
-50,1 (-58,2)
-14,8 [off] (-1,1) -14,8 [off] (-1,1)
-50,1 (-58,2)
Psi (Bar)
°C (°F)
Point x - Temperature of the mapped curve
Point x - Pressure of the mapped curve

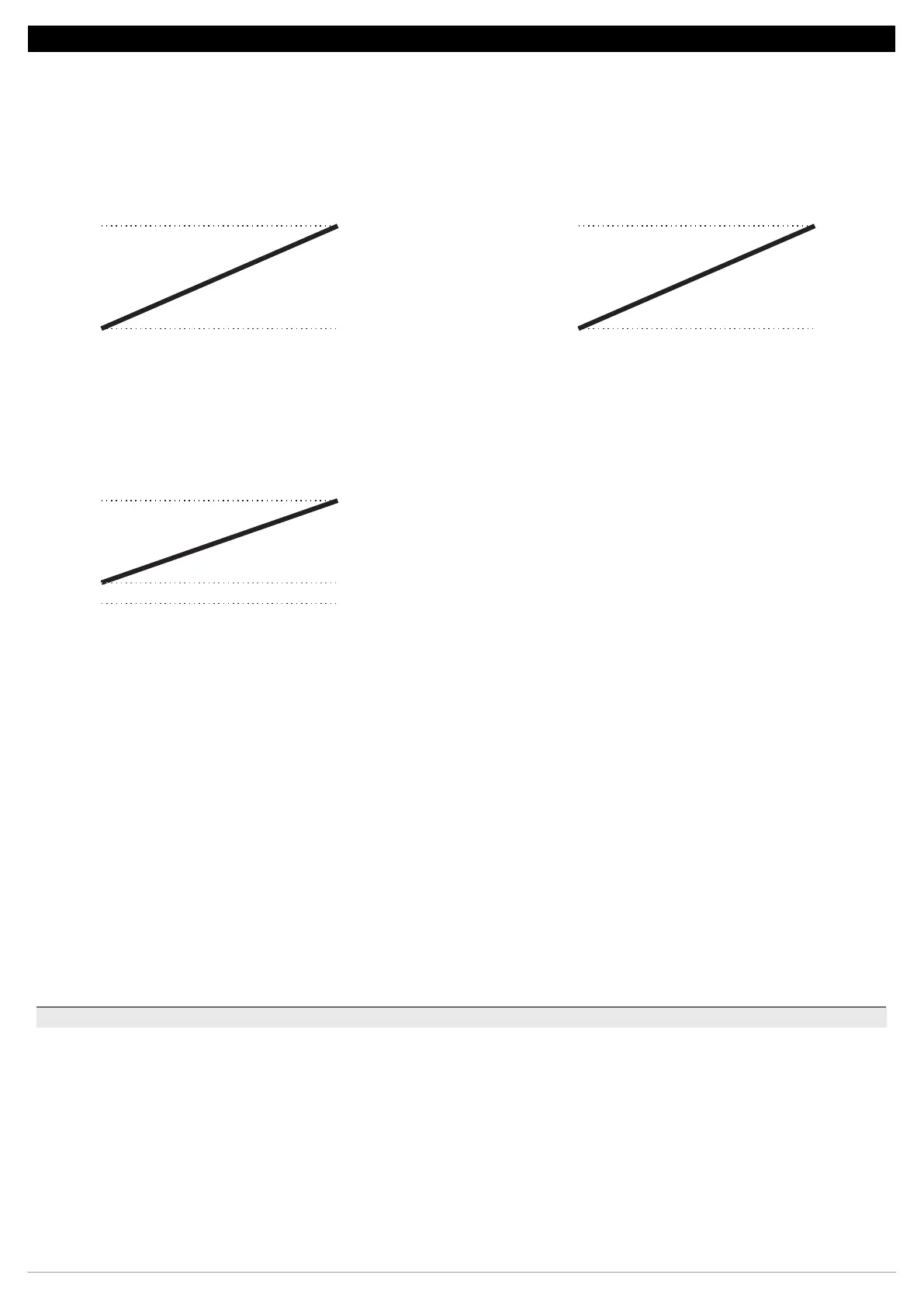

10V
0V
0% 100%
Capacity
Output voltage
0-10V
5V
0V
0% 100%
Capacity
Output voltage
0-5V
5V
1V
0% 100%
Capacity
Output Voltage
1-5V
69
