FULTON 60E - Page 16

GFSE-Std-0499
2 2

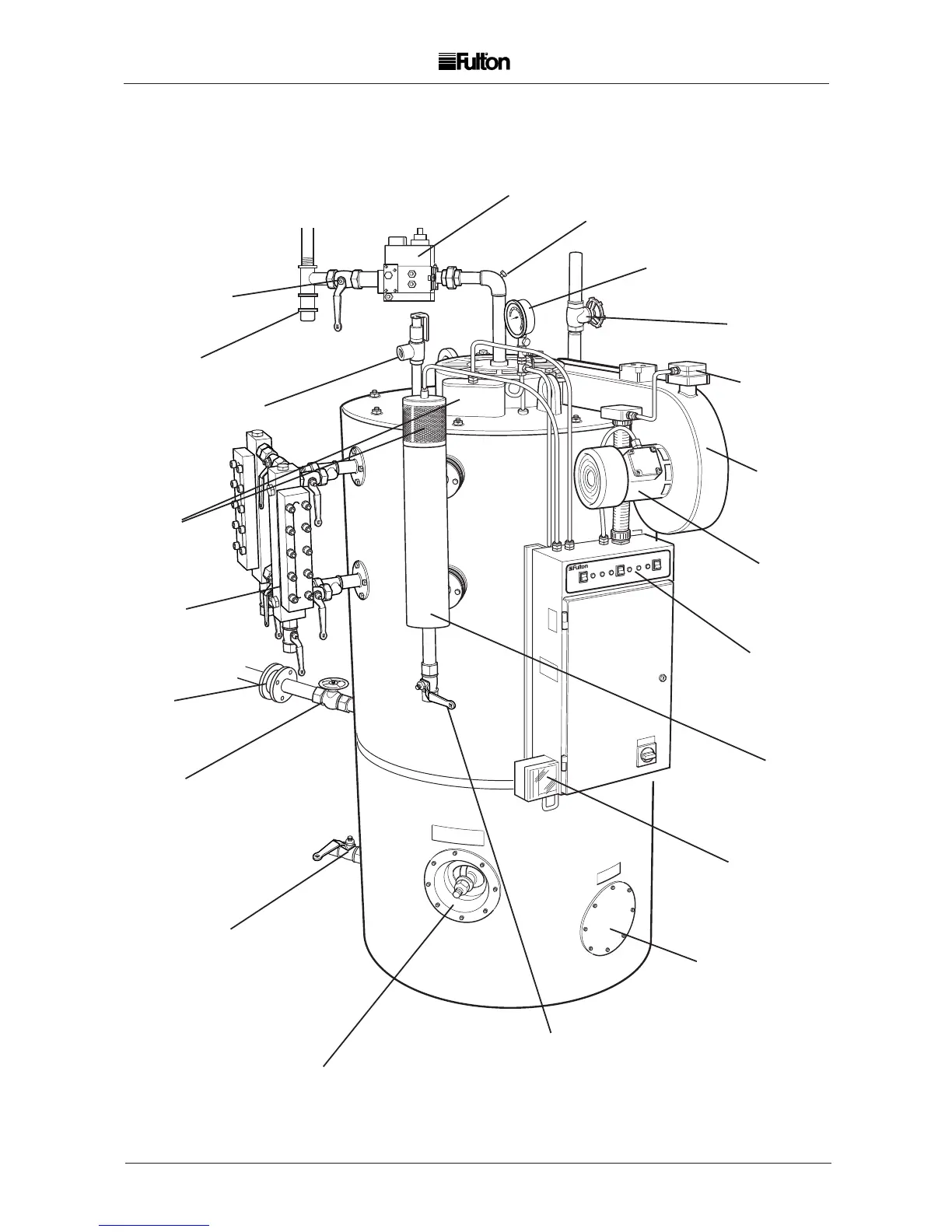

FIG. 7 COMMISSIONING THE BOILER
11
GAS COCK
MODULAR
GAS UNIT
PRESSURE
TEST POINT
MAIN STEAM
VALVE
STEAM SAFETY
VALVE
WATER
LEVEL
PROBES
AIR SAFETY
SWITCH
BLOWER
HOUSING
BURNER
MOTOR
WATER
COLUMN
STEAM
PRESSURE
GAUGE
SCALE
TRAP
CHECK
VALVE
STOP
VALVE
WATER
GAUGE
CONTROL
PANEL
COLUMN
BLOWDOWN
VALVE
PRESSURE
CONTROL
HAND HOLE
CLEAN OUT
DOOR
MAIN
BLOWDOWN
VALVE
