FULTON 60E - Three Monthly; Burner Assembly

GFSE-Std-0499

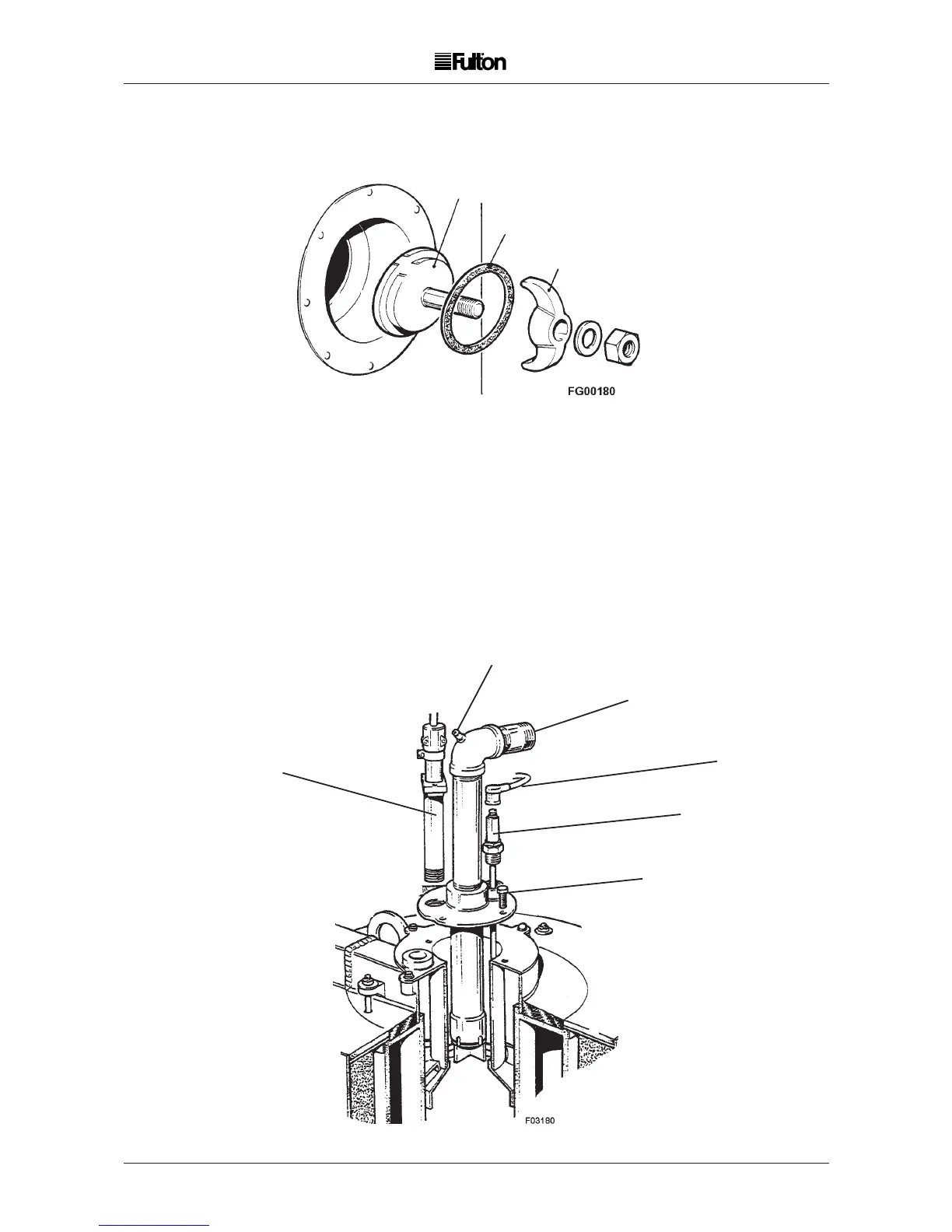

FIG. 17 HANDHOLE
4 4
FIG 18 BURNER ASSEMBLY
30
CRAB
GASKET
HANDHOLE
COVER PLATE
4.4 THREE MONTHLY (Monthly tests plus)
(a) Drain and isolate the boiler.
(b) Remove the lower handhole assemblies and inspect the interior of the pressure vessel for scale
and sludge build up.
(c) Remove the feedwater pipe from the top of the boiler. Check the pipes and out are clear and
free from debris.
ULTRA-VOILET
SENSOR
IGNITION
ELECTRODE
BURNER UNIT
SECURING BOLTS
GAS PRESSURE
TEST POINT
IGNITION
LEAD
GAS TRAIN
CONNECTION POINT
