Fulton Heating Solutions, Inc. -- PHW Manual -- 2010-0713
Page 56
2. Starting the Fulton Pulse Combustion Hydronic Heating Boiler

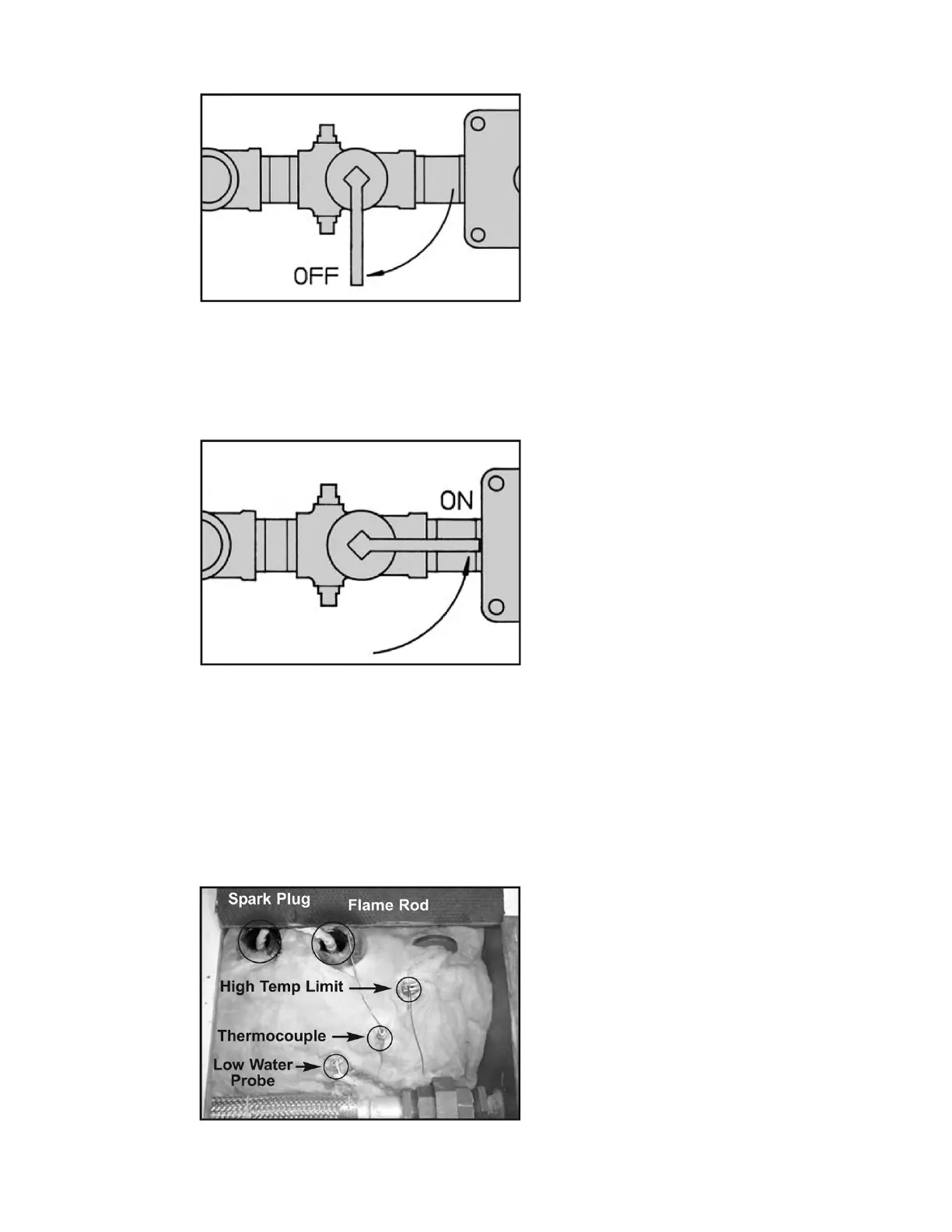

a) Open the main gas cock knob counter clockwise 1/4 turn to “ON” position (Figure 19).
b) Turn on all electric power to the boiler.
c) Set temperature control to desired setpoint.
d) Turn operating switch on boiler to “ON” position. The boiler is energized and 35 second
prepurge begins. After 35 seconds the spark ignitor and gas valve (2 seconds later) are
energized. If combustion is not sensed within 4 seconds, gas and spark are de-
energized. The control will recycle to prepurge, only if the selected number of retry
attempts is not exceeded.
Figure 18
Figure 19
