FUNAI LC5-D32BB - LCD Panel Adjustments; Purity Check and Flicker Adjustment

6-3 A73F0EA
2. Purity Check Mode
This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.
1. Enter the Service mode.
2. Each time pressing [7] button on the service
remote control unit, the display changes as
follows.
3. Flicker Adjustment
*This adjustment is required when reparing T-CON
CBA.
1. Operate the unit for more than 20 minutes.
2. Set the color analyzer and bring the optical
receptor to the center on the LCD-Panel surface
after zero point calibration as shown above.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.
3. Enter the Service mode.
4. Press [2] button on the remote control unit.
5. Press [P / ] buttons on the remote control
unit so that the color analyzer value becomes
minimum.
[7] button
Note:
When entering this mode, the default setting is White mode.

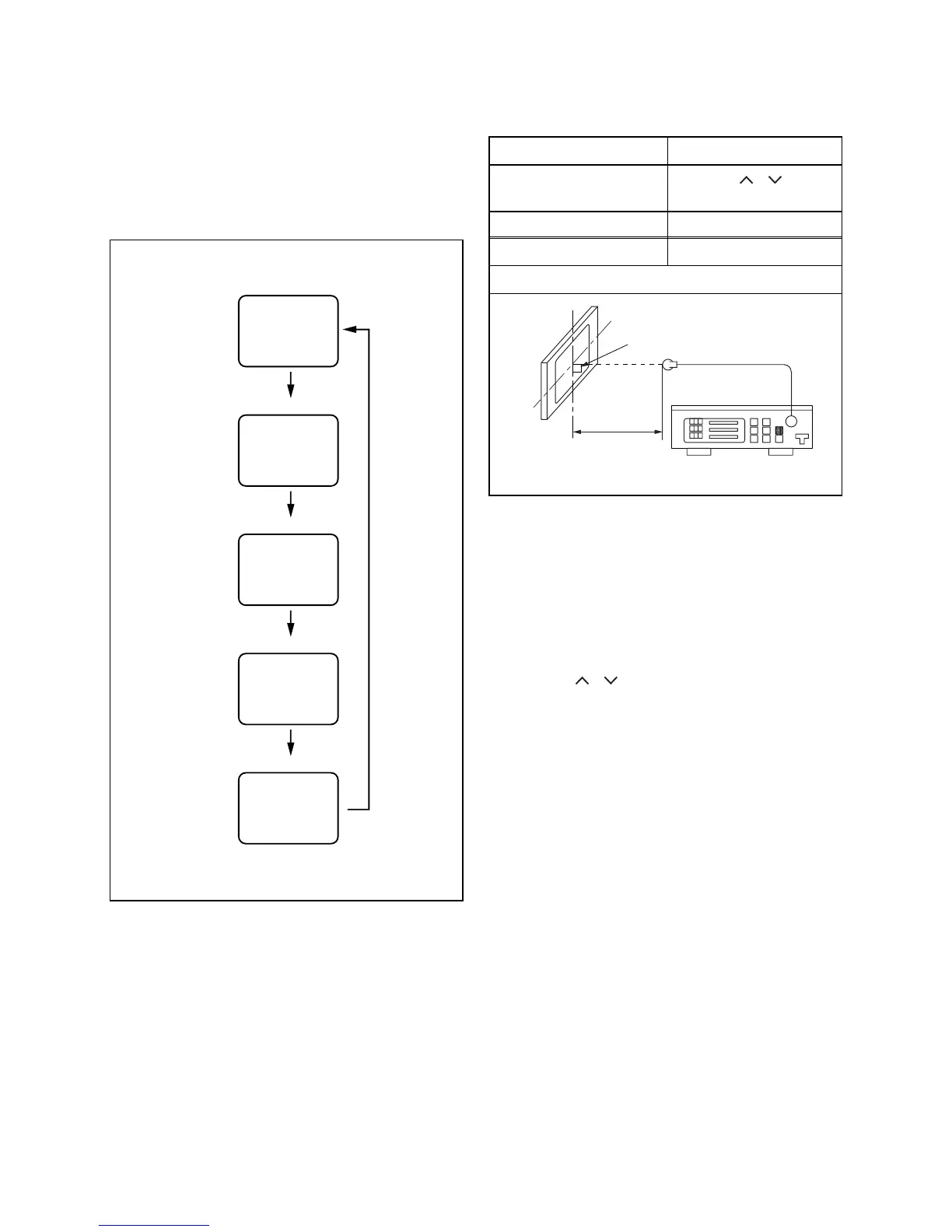

Purity Check Mode
[7] button
Red mode
Green mode
Blue mode
Black mode
[7] button
White mode
[7] button
[7] button
Test Point Adj. Point
Screen
[P / ]
buttons
M. EQ. Spec.
Color analyzer
See below
Figure
Color Analyzer
It carries out in a darkroom.
L = 3 cm
Perpendicularity
