FUNAI LC5-D32BB - Power Supply CBA Bottom View

8-18

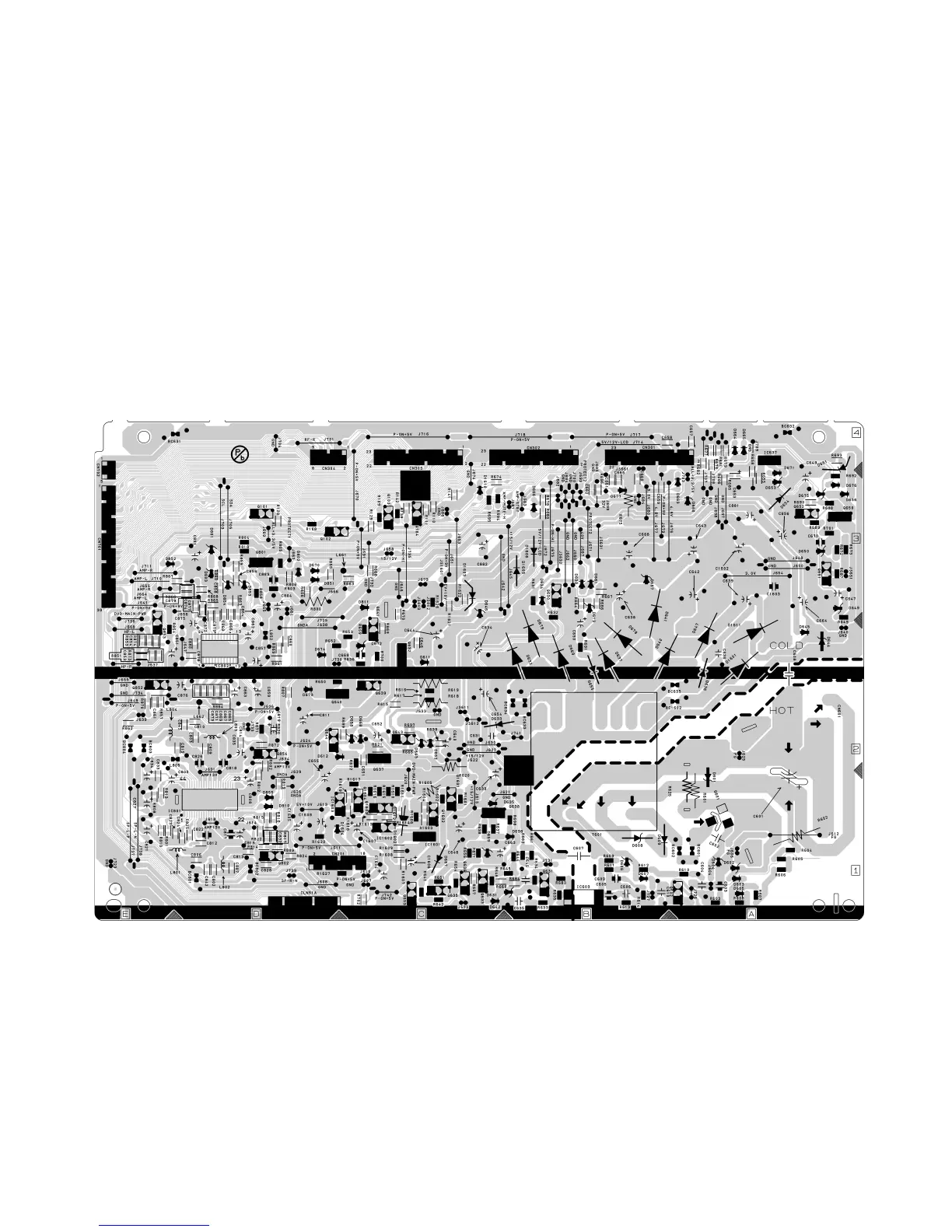

Power Supply CBA Bottom View
BA73F0F01022-1
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.
