FUNAI LC5-D32BB - Inverter and Junction Schematic Diagram

8-6
A73F0SCINV

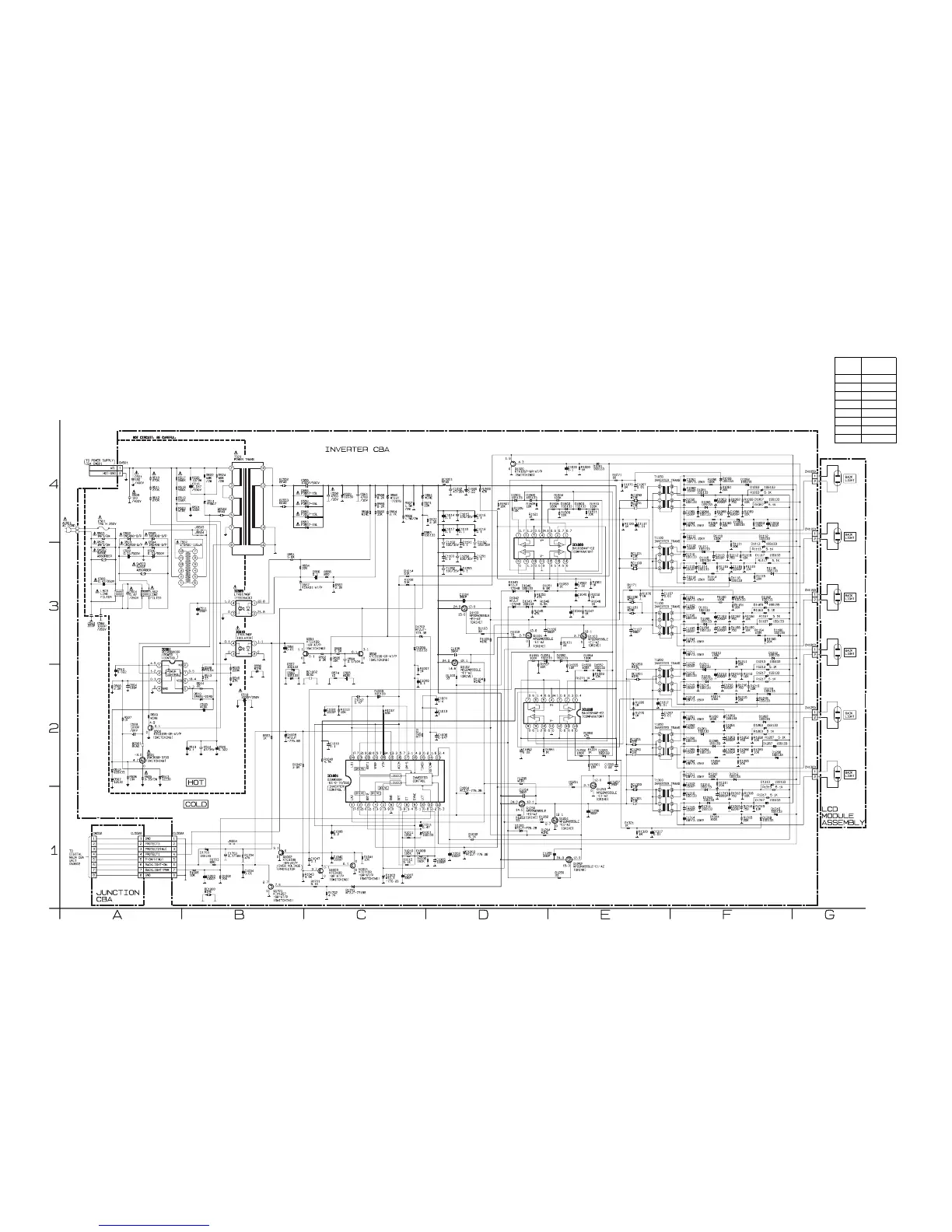

Inverter & Junction Schematic Diagram
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F501) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
CN552
10
23.1
3---
43.1
5---
63.2
73.4
80
VOLTAGE CHART
Pin No. Voltage
