FUNAI LC5-D32BB - Waveforms

9-1
A73F0WF

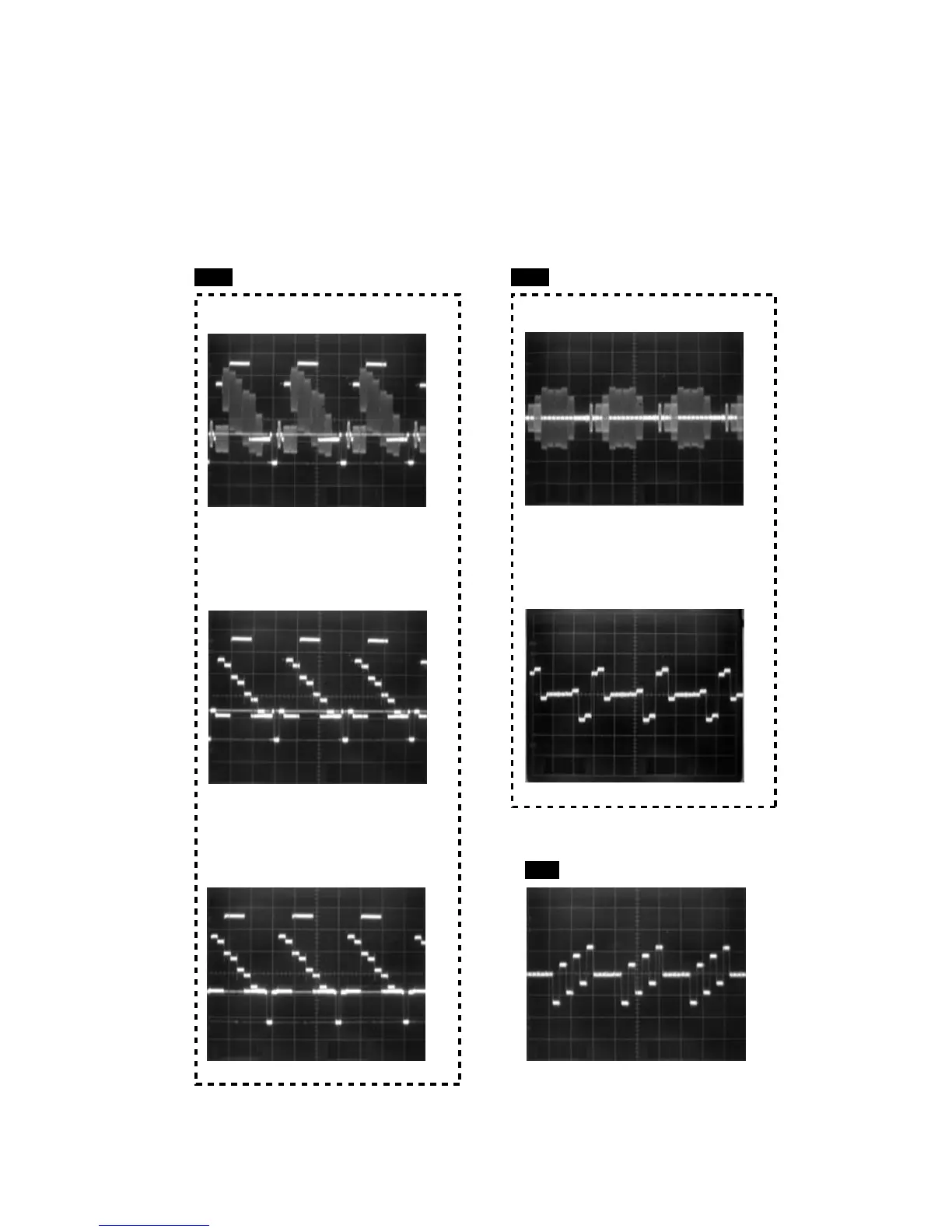

WAVEFORMS
Input: PAL Color Bar Signal (with 1kHz Audio Signal)
WF1 ~ WF3 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
S-VIDEO-Y 0.2V
20
µ s
S-VIDEO-C 0.2V
20
µ s
COMPONENT-Y 0.2V 20 µ s
20
µ s
COMPONENT-Pr 0.2V 20 µ s
COMPONENT-Pb 0.2V 20 µ s
Pin 20 of CN7001
WF3
CVBS 0.2V 20 µ s
(VIDEO IN)
(S-VIDEO IN)
(COMPONENT IN)
WF1
Pin 10 of CN7001
WF2
Pin 12 of CN7001
(S-VIDEO IN)
(COMPONENT IN)
