FUNAI LC5-D32BB - Page 54

9-2
A73F0WF
B 0.5V
WF4
Pin 16 of CN7001
WF5
Pin 14 of CN7001
WF6
Pin 18 of CN7001
AUDIO 0.5V 0.5ms
WF7
Pin 8 of CN7001
20 µ s
G 0.5V
20
µ s
R 0.5V
20
µ s

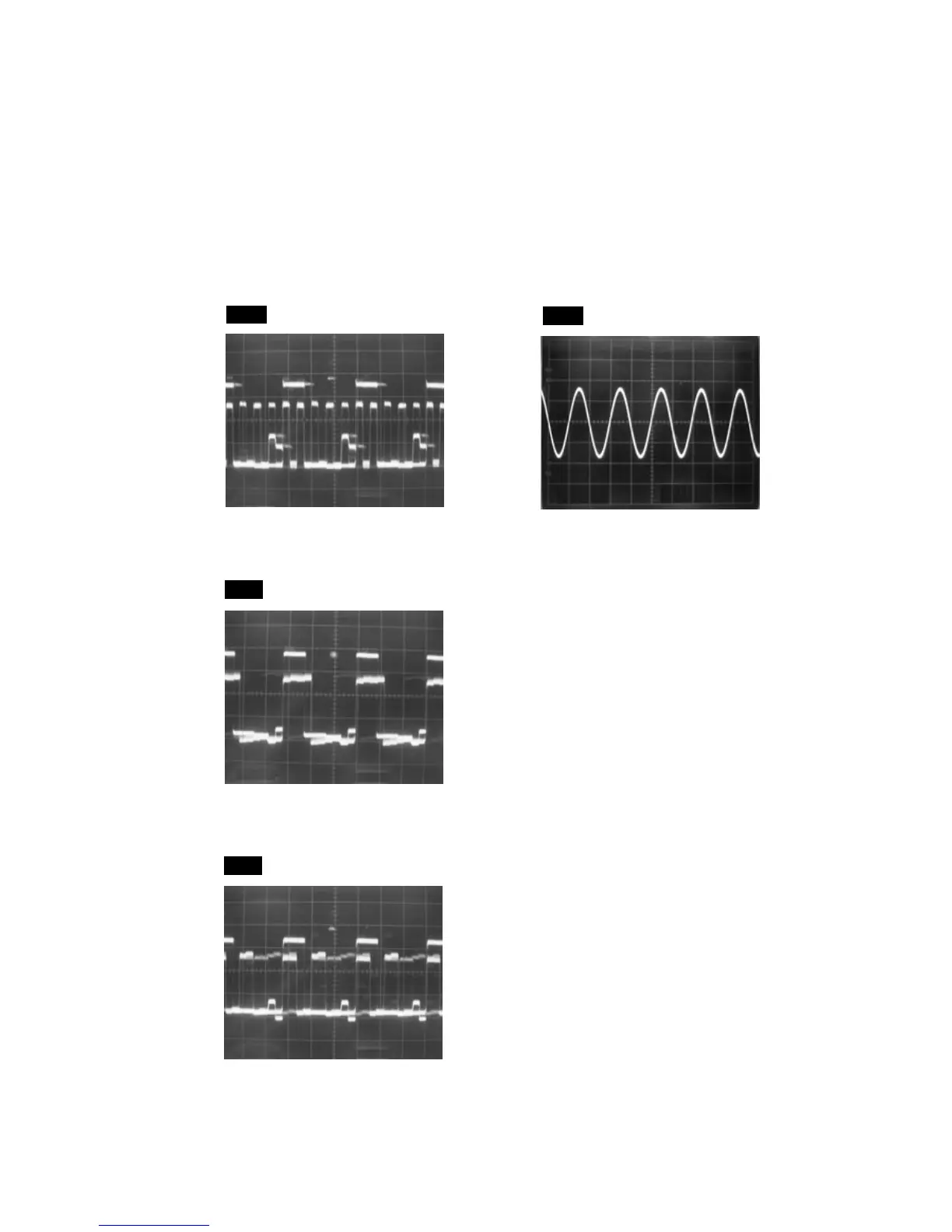

Input: PAL Color Bar Signal (with 1kHz Audio Signal)
WF4 ~ WF7 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
