FUNAI LC5-D32BB - Page 32

8-4
A73F0SCP2

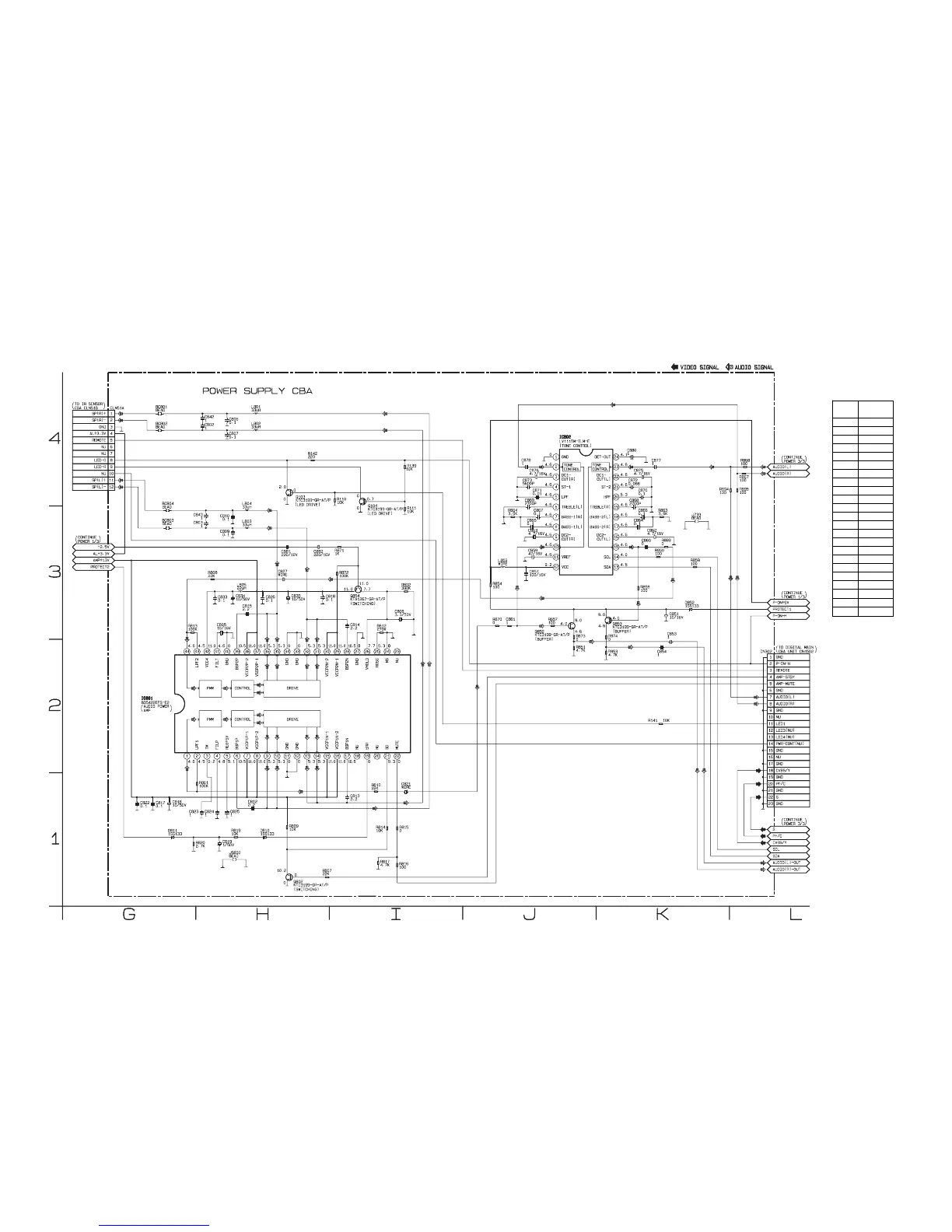

Power Supply 2/3 Schematic Diagram
CN302
10
22.4
33.4
40
53.3
60
74.5
84.5
90
10 3.3
11 0
12 ---
13 ---
14 ---
15 0
16 ---
17 0
18 2.4
19 0
20 2.4
21 0
22 2.4
23 0
VOLTAGE CHART
Pin No. Voltage
