FUNAI LC5-D32BB - Page 40

8-12

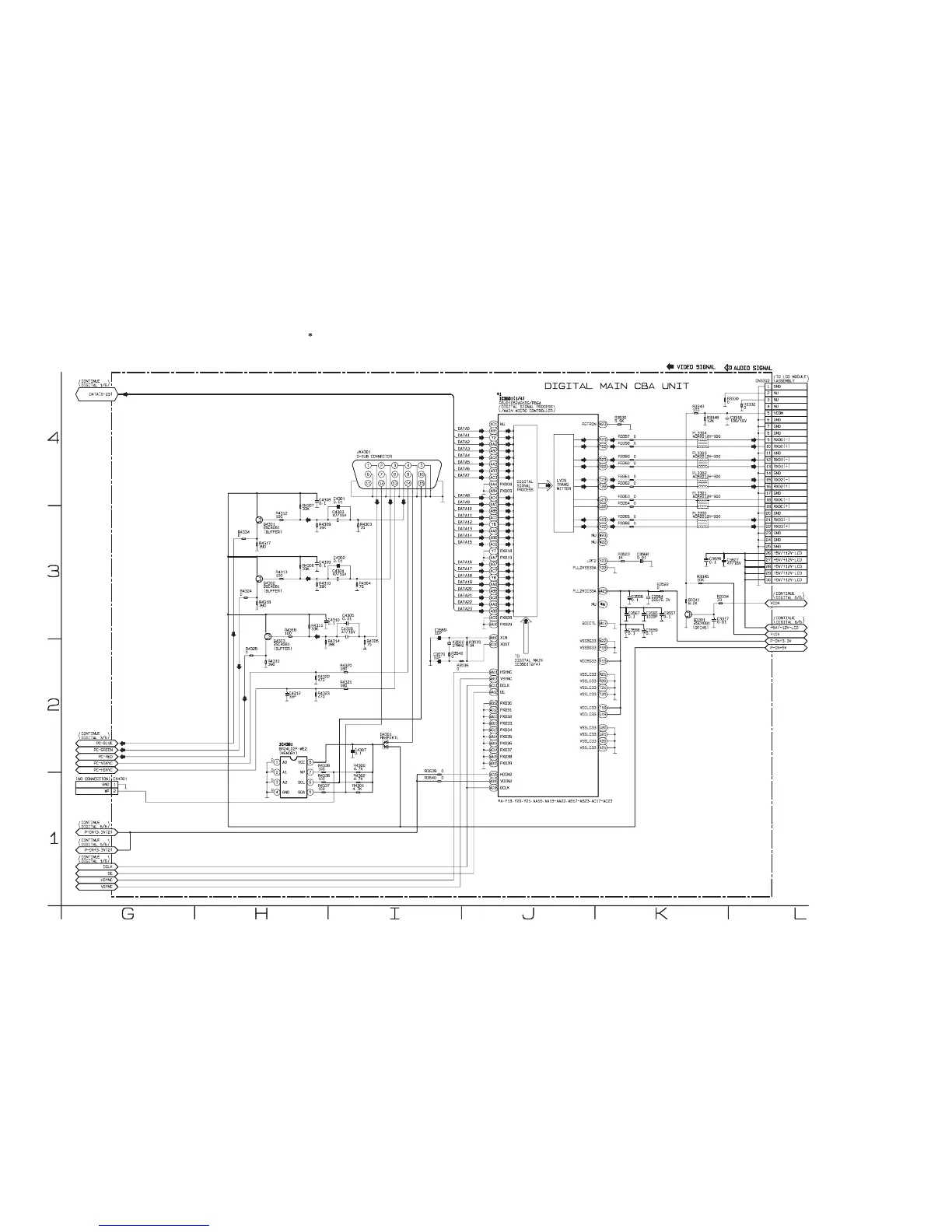

Digital Main 2/6 Schematic Diagram
A73F0SCD2
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3501.
IC3501 is divided into four and shown as IC3501 (1/4) ~ IC3501 (4/4) in this Digital Main Schematic Diagram Section.
