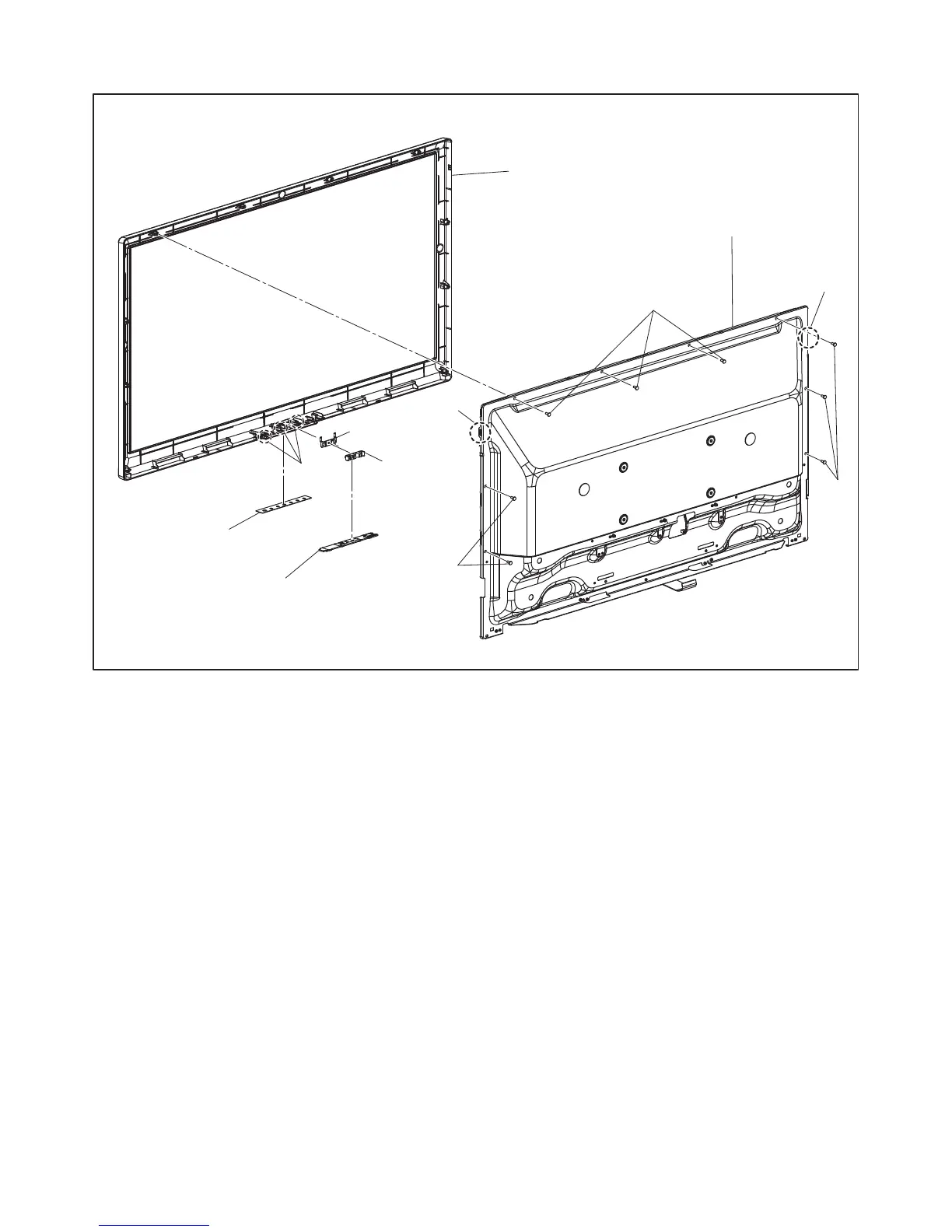

FUNAI LF320EM4 A - Figure D4

4-5 FL14.10-A_DC
[9] Function CBA Unit
*
1
Shield Plate*
1
Hook*
1
Control Plate*
1
[8] Front Cabinet
*
1
[7] LCD Panel Assembly
(S-9)
(S-9)
(S-9)
Sensor Lens*
1
(L-3)
(L-3)
Fig. D4
*
1
: Make sure to read all the precautions on page 4-1 when you disassemble/re-assemble
the Front Cabinet or Function CBA Unit.
