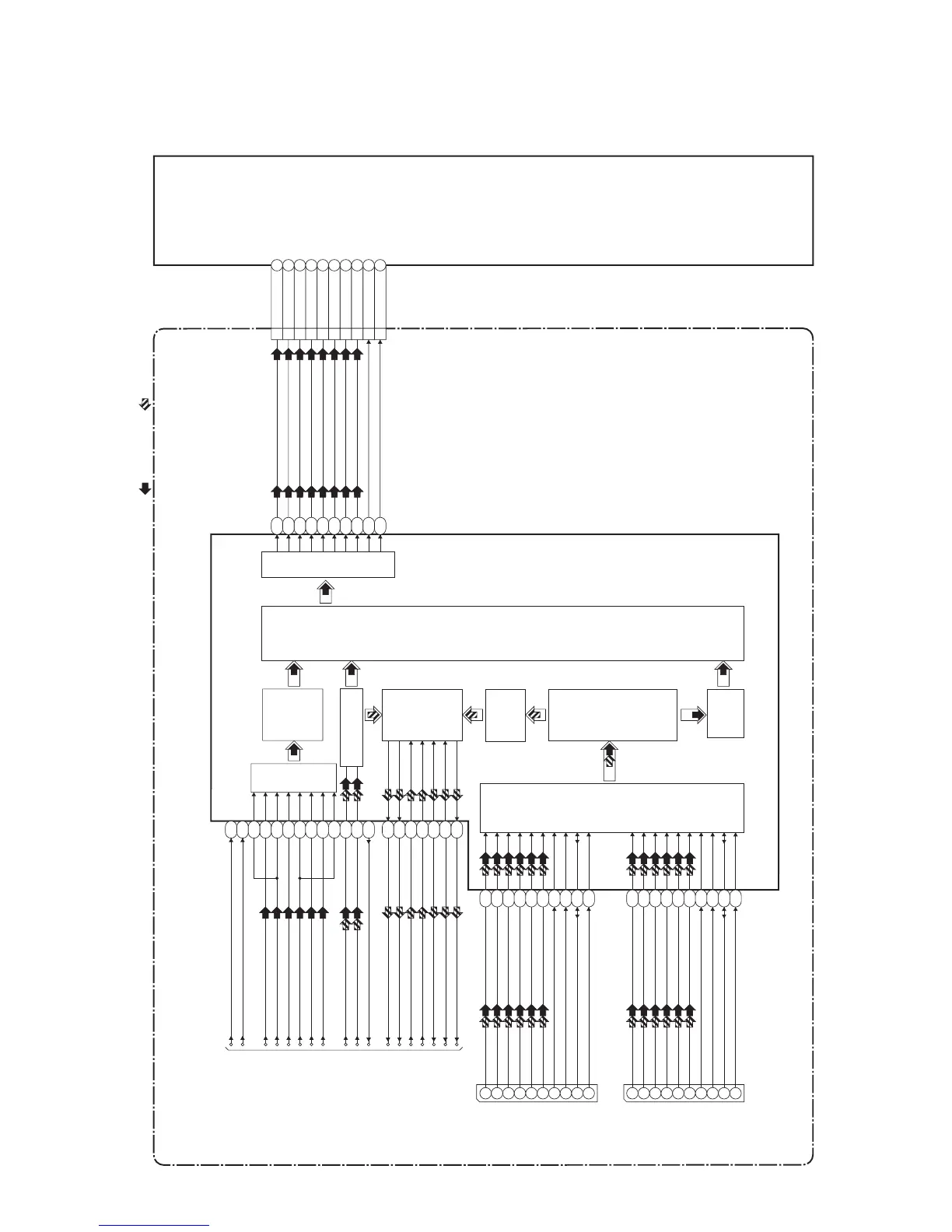

FUNAI LF320EM4 A - Digital Signal Process Block Diagram (Type C)

9-8
FL14.10CBLD
DIGITAL MAIN CBA UNIT
IC3101 (DIGITAL SIGNAL PROCESS)
CN3102
DIGITAL SIGNAL PROCESS
HDMI-IN1 HDMI-IN2
JK3007
DATA0(+) DATA0(-) DATA1(+) DATA1(-) DATA2(+) DATA2(-) HDMI-DATA HDMI-CLOCK
7 9 4 6 1 3
10 12 16 15
7 9 4 6 1 3
10 12 16 15
JK3003
CLOCK(+) CLOCK(-)
AUDIO DECODER
HDMI I/F
HDMI SW
TO VIDEO/AUDIO BLOCK DIAGRAM
VIDEO DECODER
VIDEO SIGNAL
AUDIO SIGNAL
A/D CONVERTER
DEMODULATOR /MPEG DECODER
AUDIO I/F
DIF-OUT1 DIF-OUT2 IF-AGC
IF-AGC
LVDS TX
AMP(L)-OUT AMP(R)-OUT
SPDIF
AUDIO(L)-IN AUDIO(R)-IN HP(L) HP(R)
DATA0(+) DATA0(-) DATA1(+) DATA1(-) DATA2(+) DATA2(-) HDMI-DATA HDMI-CLOCK CLOCK(+) CLOCK(-)
46 47 35
34 44 45
62
156 155
2 1 4 3
154 153 139 140 148 147 150 149 152 151 146 145 135 134
50 49 48
90 89
88
84 83 82 81 86 85
91
5 6 8 9
11 12 14 15 17 18
RX0(-) RX0(+) RX1(-) RX1(+) RX2(-) RX2(+) RXCLK(-) RXCLK(+) RX3(-) RX3(+)
LCD PANEL ASSEMBLY
SW
VGA-R-IN VGA-G-IN VGA-B-IN
COM-VIDEO-Y/VIDEO-IN COM-VIDEO-Pb-IN COM-VIDEO-Pr-IN VGA-HSYNC VGA-VSYNC
VGA-HSYNC VGA-VSYNC
14
20 19 17 16 15 24 22 26 23
3. Digital Signal Process Block Diagram
