EVO EXPERT Manual 37/105
To choose one of the test profile options, hit the log key corresponding to the desired log setting
(for example 1 M1, would select log M1). The names correspond to symbols on each key on the
viscometer’s keyboard. After that, hit the ‘ENTER’ key to validate the option.

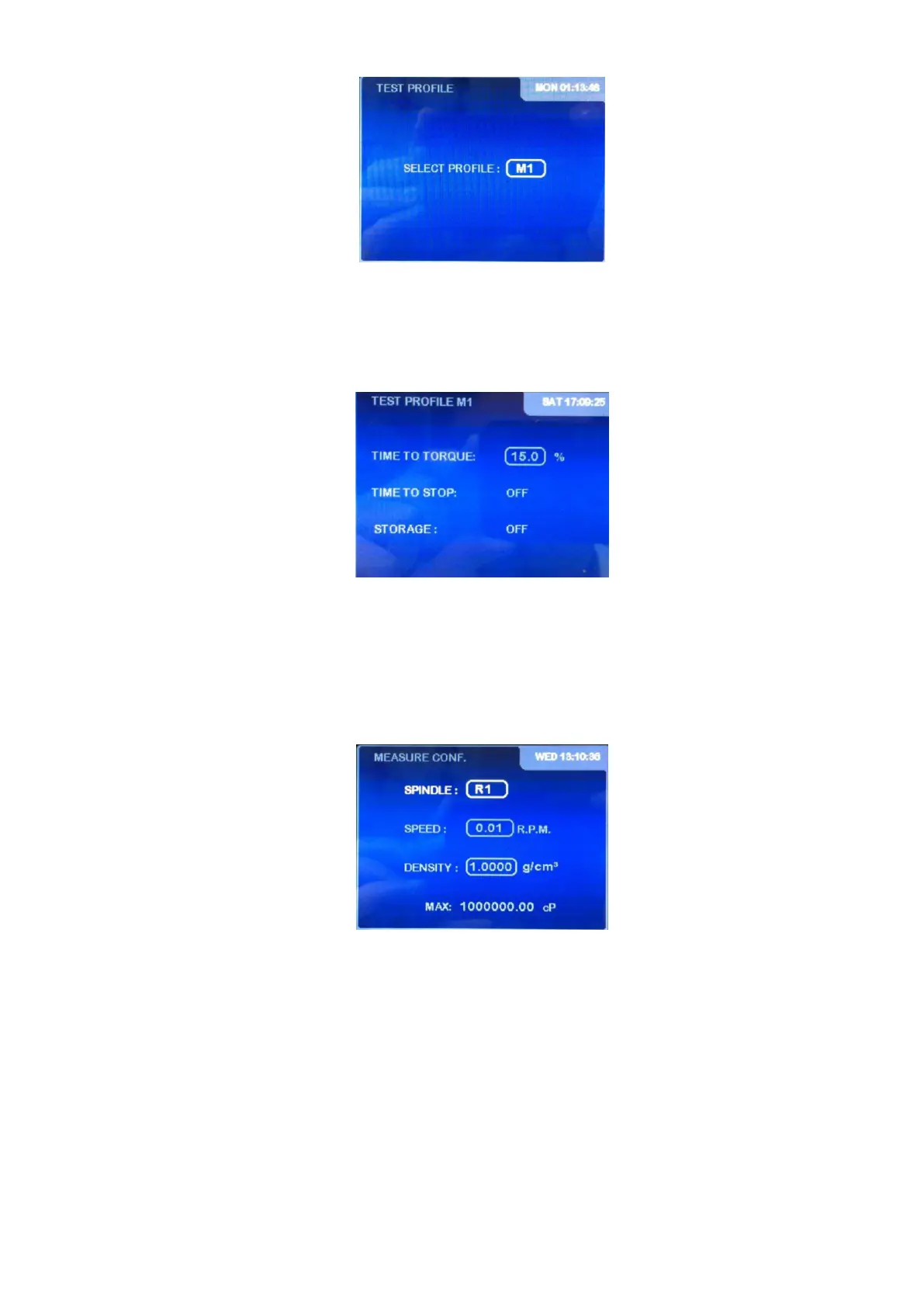

Once the test profile is chosen the following information screen will appear:
The disabled options appear in the ‘OFF’ status. The activated ones appear with some configuration
information (‘TTT’ and ‘TTS’ options) or with the ‘ON’ indication (‘STORAGE’ option). The
information shown will not be able to be modified under any condition; it is only shown to inform
the user. Once on this screen, the key ‘◄’ takes the user to the log selection screen and the
‘MEM/CLEAR’ key would take the user back to the main menu of the machine. Press the ‘ON’ key to
directly start the measurement. Press the ‘ENTER’ key to hide this screen and the instrument will
bring the measurement configuration information on the screen (example):
Once on the measurement configuration screen, its details can be seen but not modified. Now if
the ‘0N’ key is hit, the measurement can begin. If the ‘◄’ key is pressed, it goes to the log
selection screen and the ‘MEM/CLEAR’ key would take the user back to the main menu of the
instrument.
If by error a test profile is selected that has not been recorded on previously (the viscometer comes
from the factory with empty tests profile) and if the ‘ENTER’ key is hit, a ‘MEMORY EMPTY’ message
will appear:
