EVO EXPERT Manual 69/105

10. 3. 1 Heldal unit Mounting

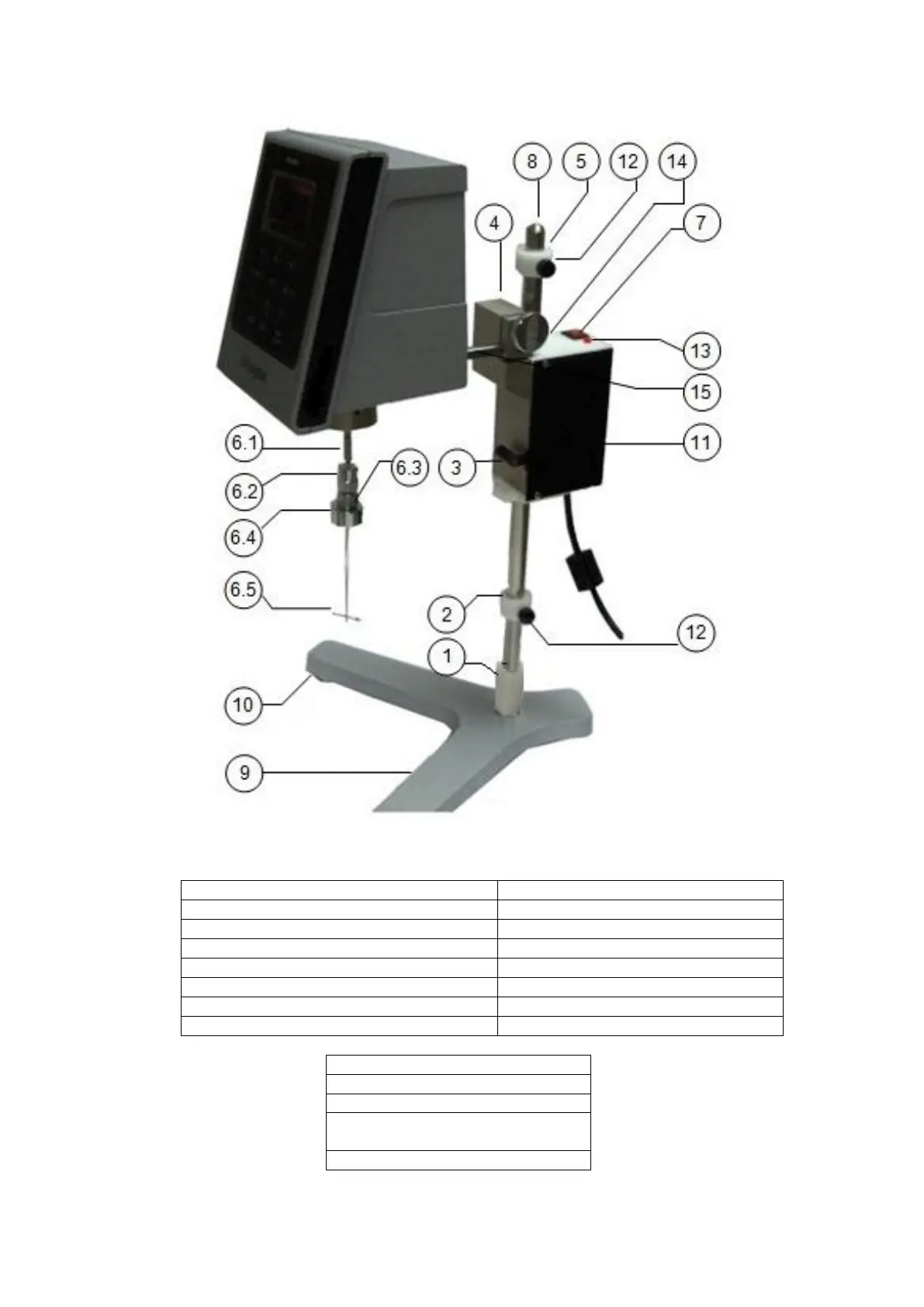

Fig. 16 Heldal unit set in the viscometer

1. Rib joint

9. Base

2. Lower stop ring

10. Levelling knobs

3. Displacement command

11. Heldal engine unit

4. Viscometer fastening bolt

12. Knobbed fastening rib

5. Upper stopper ring

13. Functioning pilot

6. Heldal fastening group

14. Nut bolt

7. ON/OFF switch

15. Viscometer fastening rib

8. Fastener

6.1 Spindle connector

6.2 Upper spindle receptor

6.3 Lower spindle receptor

6.4 Counterweight, spindle

connector

6.5 Spindle
