EVO EXPERT Manual 41/105

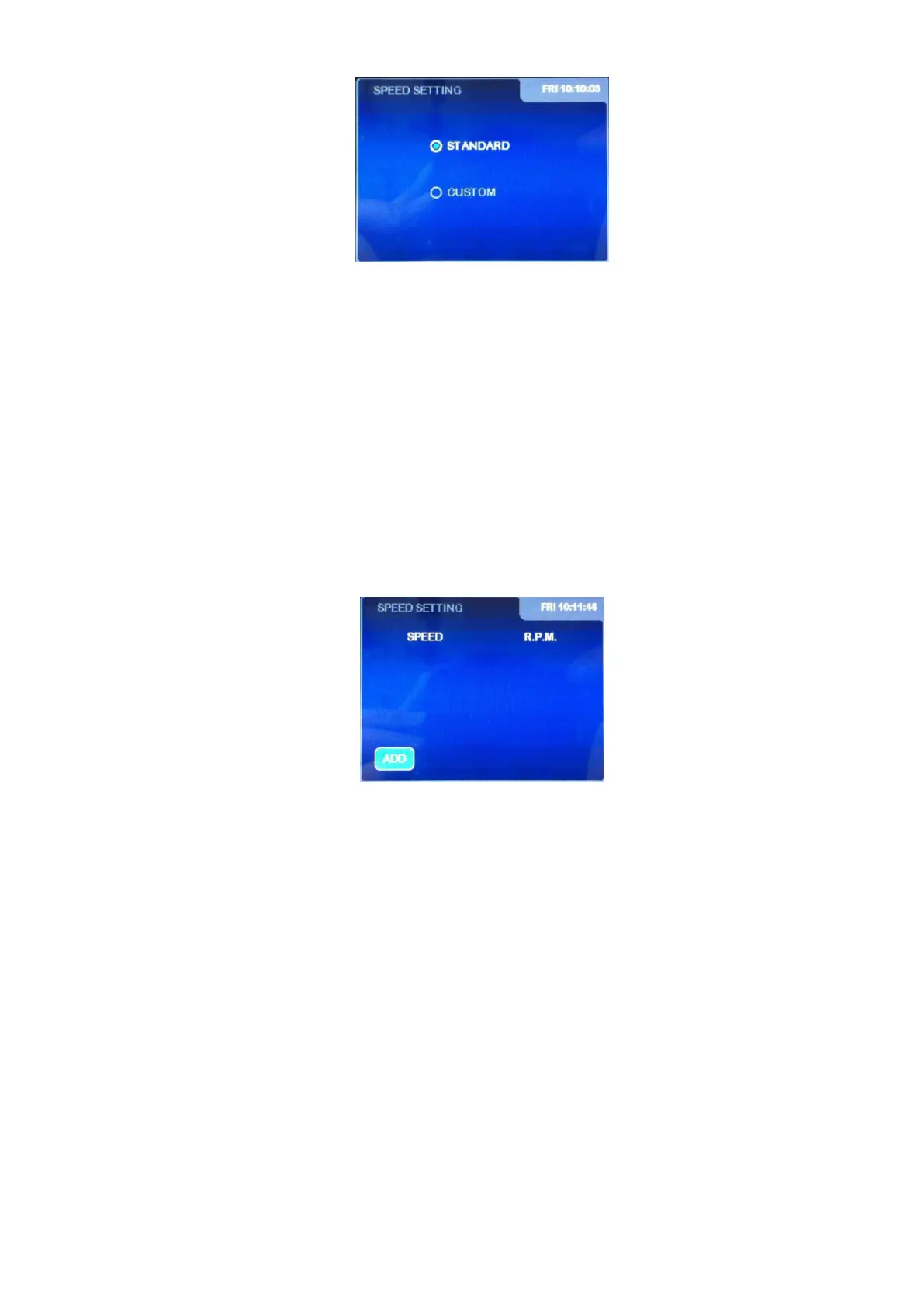

This is the ‘SPEED SETTING’ submenu screen. The Evo EXPERT series viscometer has a pre-set
speed with a total of 56 RPMs (revolutions per minute) as well as speeds in which the RPMs can be
set manually. In some cases, when the work speeds are repetitive, the user can personalize these
speeds configuring a profile for the measurement.
This way, there are two methods of working with different speeds: selecting speeds directly out of
the pre-set group (STANDARD option) or creating a personalized profile which includes the speeds
most frequently used (CUSTOM option). This ‘CUSTOM’ profile will allow you to select up to 18
speeds.
The viscometer provides a default range of speeds, through the ‘STANDARD’ option. You must use
the ‘’ and ‘’ keys to select this option and press ‘ENTER’ to choose it.
Using the same ‘’ and ‘’ keys, you can change the method to ‘Custom’ and press ‘ENTER’ to
confirm. You can have only one personalized profile, so if you aren’t programmed yet, you will see
the following screen:
If you already had a personalized profile programmed, you would see a screen with the speeds that
you could add to your programmed ones (with a maximum of 18).
In both cases the ‘MEM/CLEAR’ and ‘◄’ exit keys will continue to serve their normal functions,
bringing you to the main menu or previous screens, respectively.
The personalized profile can have up to 19 speeds; 18 programmable by the user and one primary
speed which is 0 rpm by definition. At the end of the profile editing all of the programmed speeds,
with the exception of speed 0 rpm will be displayed on the screen.
By selecting the ‘ADD’ field and by pressing ‘ENTER’ you will start the creation of a new profile
adding the first of the custom speeds. When you start the creation of a new personalized profile,
the viscometer will display the following screen:
