32
Funktion One Minibass 212
The Minibass 212 is a smaller iteration of Funktion One’s patented Infrabass technology and is the
perfect complement to the F81 where a more powerful bass extension is required.
The Minibass incorporates 2 x
Funktion One 16 Ohm 12''
loudspeakers which drive a ported
resonant chamber enclosure.
It handles 600 Watts with an
average sensitivity of 104dBspl
(1W/1m) between 40Hz and 125Hz.

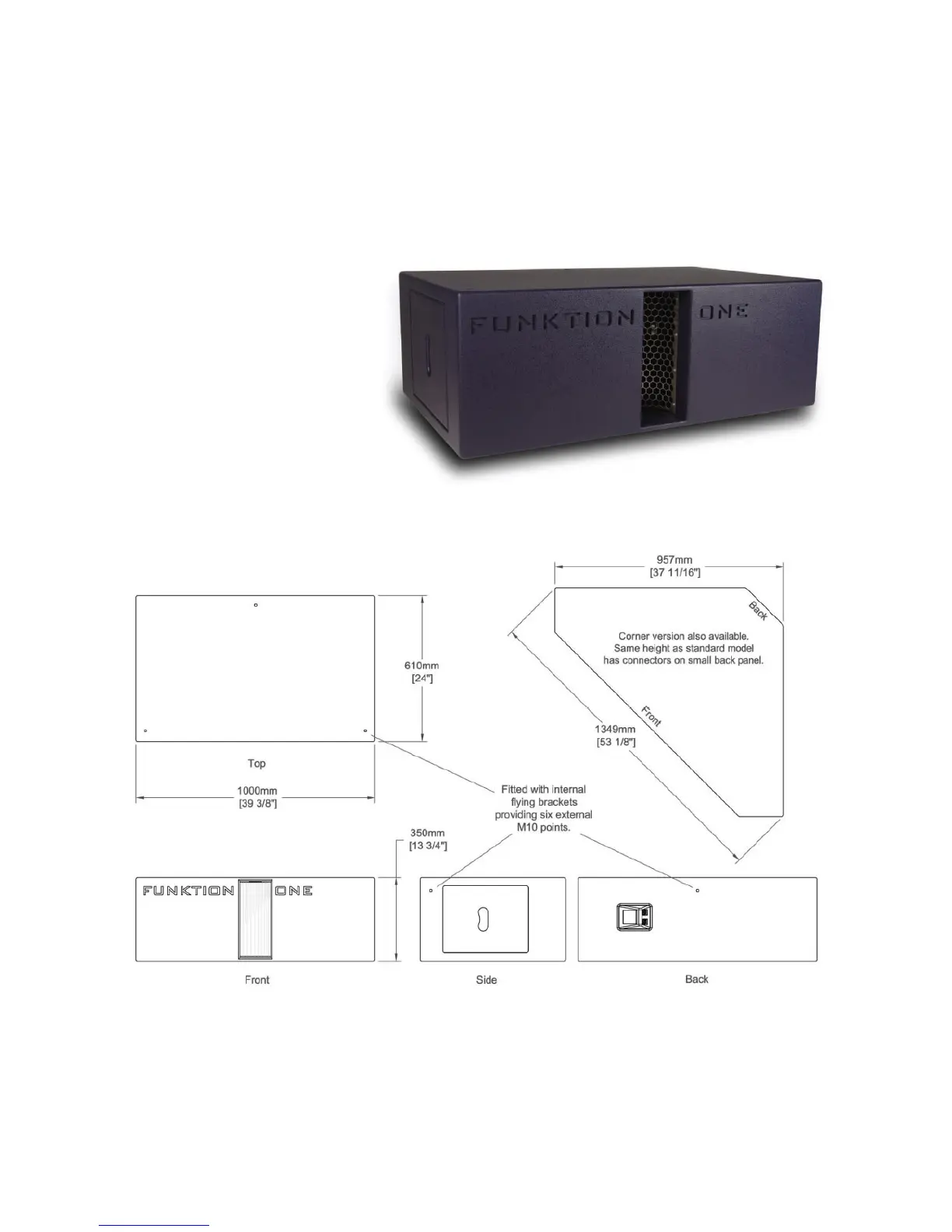

Fig 10-3 MB210 LP
Again, the efficient 8ohm enclosure allows multiple units to be driven by one amplifier.
Fig 10-4 MB210 LP dimensions (in millimetres and feet & inches)
A corner version is also available - see above. This is the same height as the standard Minibass = 350mm.
www.funktion-one.com © Funktion One Research Limited 2011
