33
Funktion One BR115 and the Bass Reflex range
The BR115 single 15” bass reflex system provides excellent
bass performance from a compact enclosure.
The BR115 has a sensitivity of 103dB for 1W at 1m and
covers the frequency range 45Hz – 320Hz
The system can be supplied with optional pole mountings
and is well matched with products including F81, F101 etc.
Ideal for smaller applications including studios and
monitoring.
Other Funktion One bass reflex enclosures are available,
including the dual 15” BR215 for larger installations.
See www.funktion-one.com/products/bass-reflex-range/
for more information.

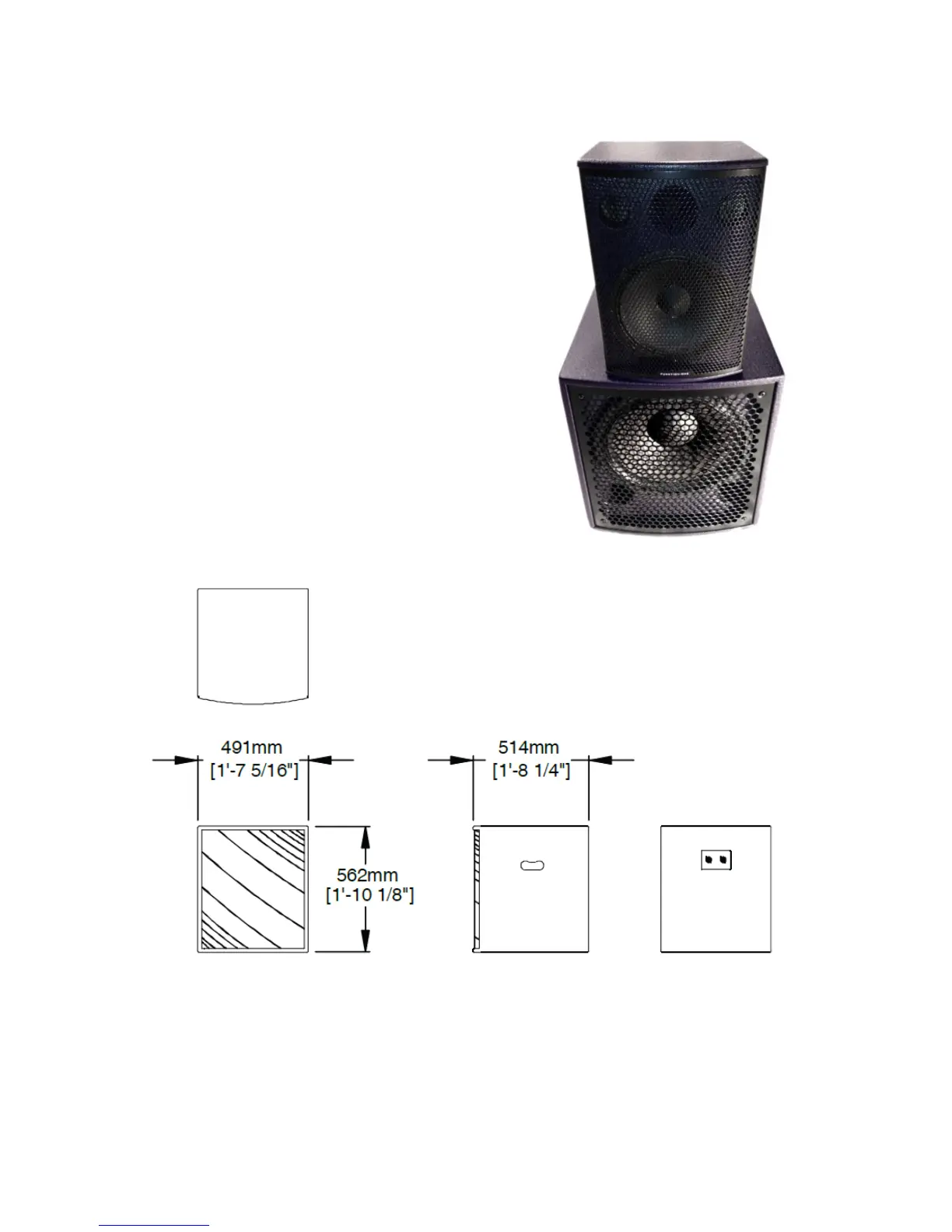

Fig 10-5 BR115 (shown with F101)
Fig 10-6 BR115 dimensions (all dimensions in millimetres and feet & inches)
www.funktion-one.com © Funktion One Research Limited 2011
