during installation, ensure that the antenna faces into
the passenger cell (see Fig. 02). Vertical mounting is
ideal. Metallic screening between the front panel and the
passenger cell, such as metal or metallised plastic panels,
are unsuitable and may interfere with the Bluetooth
®
connection. Locations behind the dashboard or in a metal-
lined glove compartment are also unsuitable.
A covering in plastic, fabric or wood presents no problems
whatsoever.
Suitable locations for the electronics box:
Passenger side, next to the middle console under the
paneling, model-specifi c installation console (dealer).
Our suggested installation locations are shown in the illustration on the right.
Further unsuitable locations are:
Leg and knee height, potential head impact zone, airbag infl ation space, engine compartment
6.2.3 Selection of the point of installation for the microphone
Suitable for the microphone:
Where voice can reach the microphone unhindered (distance
between the speaker and the microphone should be
approx. 13.78 in), on the A-column (between windshield and
driver’s side window), next to the driver‘s sun visor, on the
dashboard
Unsuitable for the microphone:
Close to the speakers (less than 31 in), under the dashboard,
in the air stream from open windows or air vents.
10
|
11

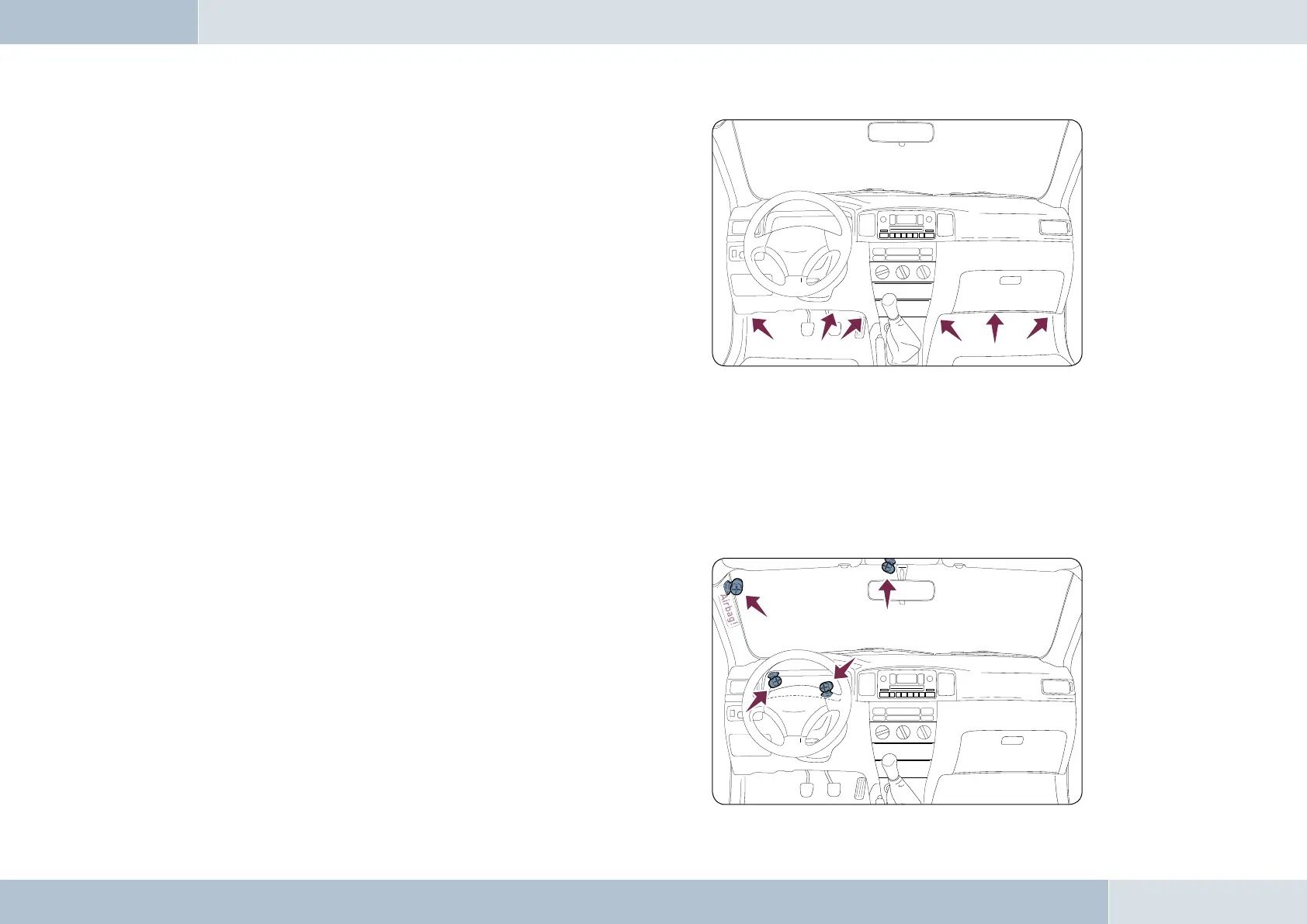

Fig. 03:
Installation locations
for the electronics box
Fig. 04:
Installation location
for microphone
The illustration shows
one of the potential
microphone mounting
locations. Alternatively,
the microphone may
be attached to the
sun visor with the clip
provided.
