6.5 Installation of the ISO connecting cable
The battery must be disconnected before starting cable installation. Disconnect the grounding cable from the negative pole
of the battery. The cable installation procedure is shown in the illustrations.
When the installation is completed, reconnect the grounding cable to the negative pole of the battery.
6.5.1 Checking the mute inputs

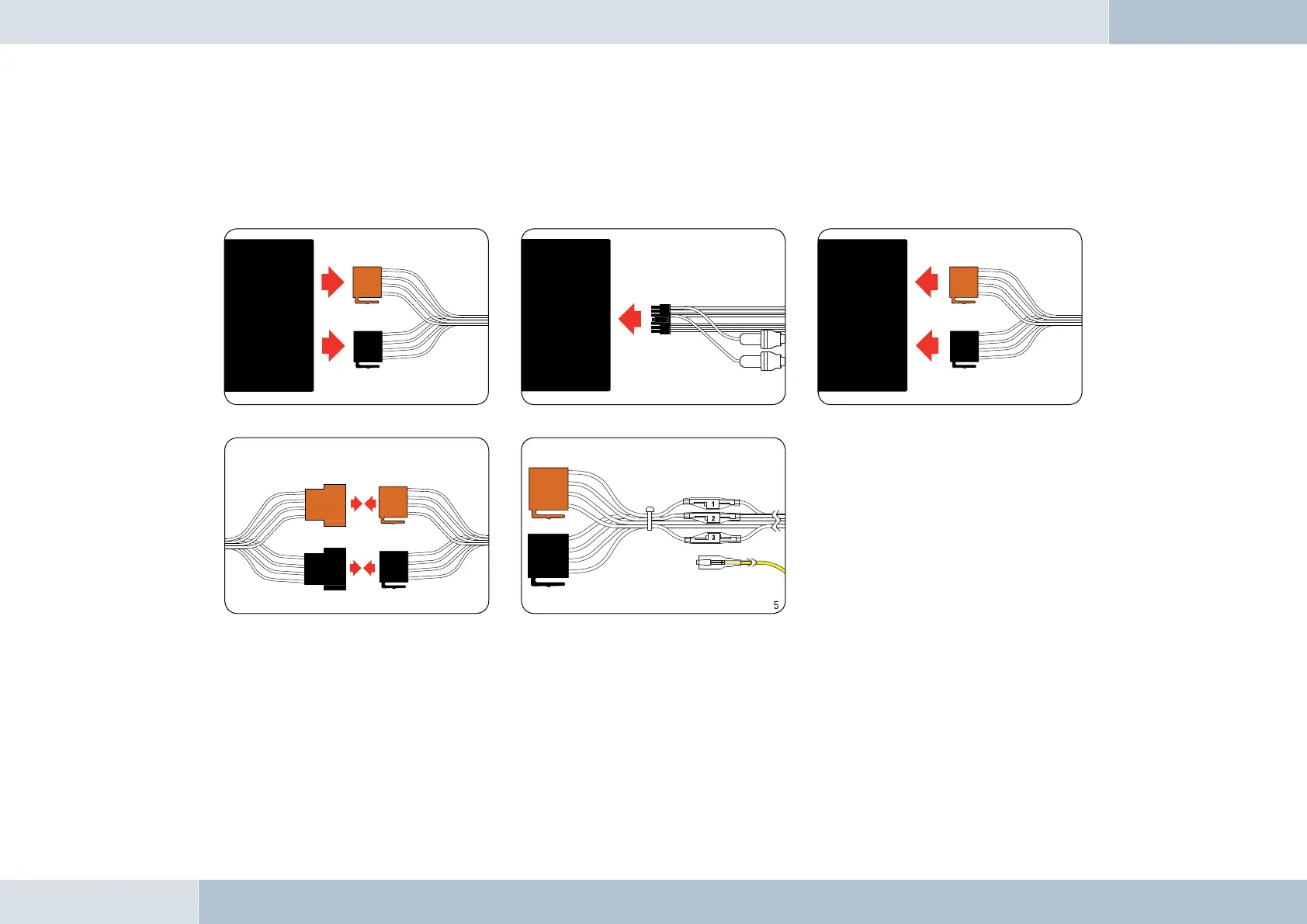

Picture 5 of Fig. 07 shows mute inputs 1–3. The yellow mute lead of the hands-free system should be connected to one of
these inputs. Which mute input should be selected is shown in the tables:
Fig. 07:
Installation
procedure
1
2
3
4
Connect 14-pin ISO
connecting cable to
EGO TALK
Disconnect car wiring
harness from car radio
Connect EGO TALK ISO
connector to car radio
Connect EGO TALK ISO connectors to car
wiring harness ISO connectors
Connect yellow mute lead to
one of the three mute inputs
(see table)
Car audio
Car audio
Electronics box
EGO TALK
