Funkwerk EGO TALK - Fig. 13 Connecting the Electronics Box

[4] The 14-pin plug of the ISO connecting cable must be connected with the electronics box.
[5] The base plate for the charging cradle may also be connected to the “charger” output socket.
[6] The USB port is exclusively reserved for servicing purposes.

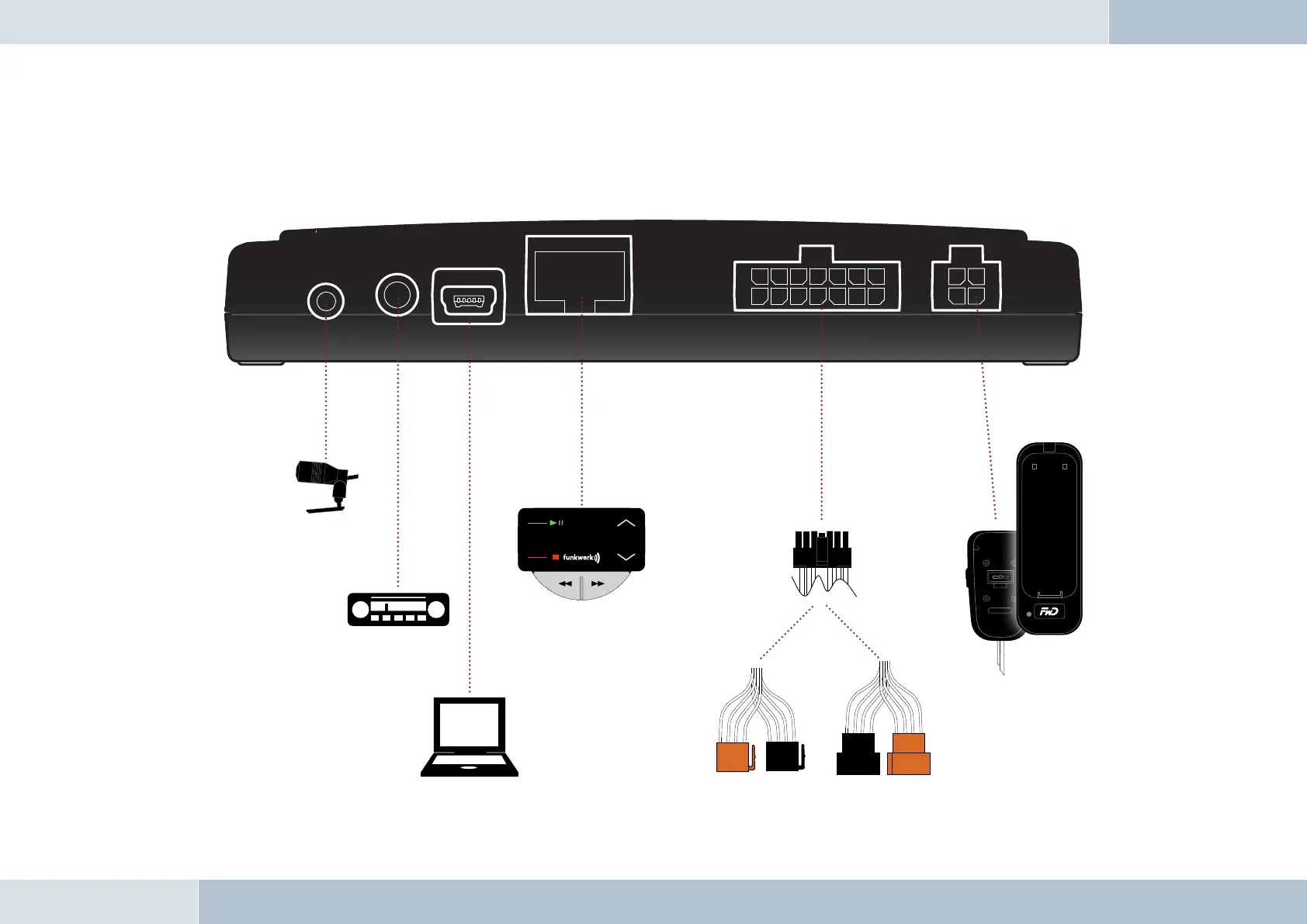

Fig. 13:
Electronics box
connection
[1]
[2]
[3]
[6] [4]
[5]
EGO TALK
