1. OPERATIONAL OVERVIEW
1-8

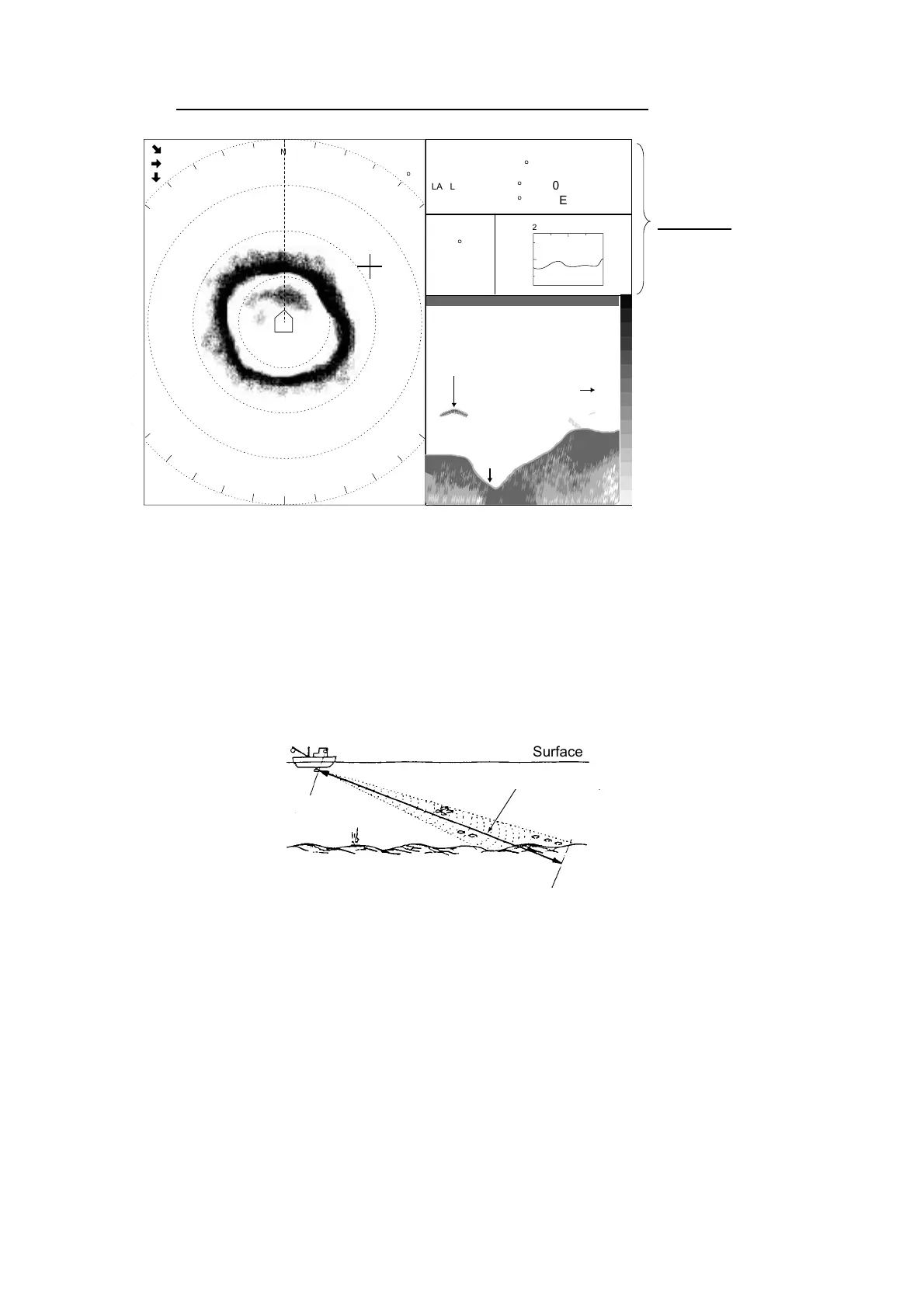

COMBI-2 display (sonar display + echosounder display)
Text Window
For description see
Chapter 5.
500
R 1000
T 30
°
(30)
G 10.0
S
E
N
N
545
472
272
B 60S
-
-
Bottom
Fish School
Depth Scale
WATER TEMP
12.4 ° C
20min 10 0
14
12
10
SHIP SPEED 12.4 kt DEPTH 126m
SHIP COURSE 246 °

LAT/LON 32 ° 52.150N
132 ° 12.150E
0
-
100 -
-
200 -
COMBI-2 display (sonar display + echosounder display)
1.3.6 Choosing the display range
The [RANGE] control chooses a display range. Each time the range is changed
the newly selected range appears in large characters for five seconds at the top
of the sonar display. The current range is always displayed at the top right corner
of the sonar display. The ranges (in meters) available are 50, 85, 100, 150, 200,
250, 300, 350, 400, 450, 500, 600, 800, 1000, 1200 and 1600.
SEA SURFACE
Range indicated
on the screen.
BOTTOM
Surface
Bottom
Range displayed
on screen
Detection range
