7. MARKS AND SYSTEM MENUS
7-2

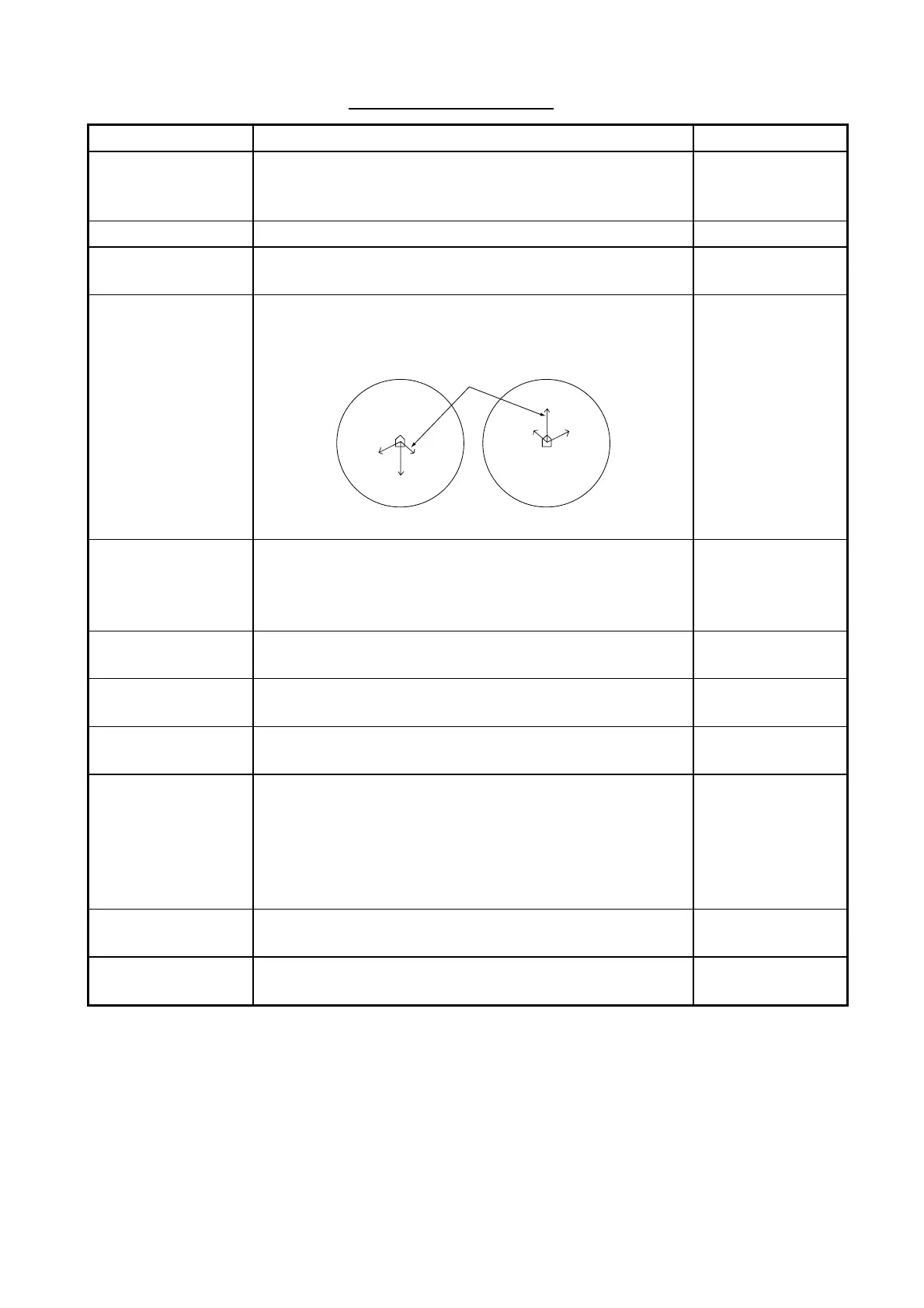

MARKS menu description
Item Description Ref. Page
RANGE RINGS Turns the range rings on/off and chooses range ring
interval, 1/4 or 1/2 the range. When turned off, the north
mark and heading mark are also turned off.
5-3
BEARING SCALE Turns the electronic bearing scale on/off. 5-3
CURRENT
VECTOR
Turns the current (tide) mark on/off. 5-3
Turns current (tide) data on or off. “FROM” shows what
direction the current is flowing; “TO” shows the direction
the current is heading. Requires a current indicator.
CURRENT DIR
Current Mark
FROM TO
3
1
2
3
1
2
5-3
SHIP’S TRACK Turns ship’s track display on/off. 5R and 10R are the
amount of track to display; that is, the length of the track
shown on the display is five and ten times the range,
respectively.
5-3
COURSE Chooses how to display course, in 32 compass points
or 360° true.
5-3
HEADING Chooses how to display heading, in 32 compass points
or 360° true.
5-2
CURRENT DATA Choose how to display current (tide) data, 32 compass
points, 360° true, ±180° or 360° relative.
5-3
EVENT/FISH Choose how to display event and fish marks, 32 CMPS,
360° TRUE, ±180° or 360°. For “±180°,” starboard
direction is shown as “xxxS” and port direction as
“xxxP.” True requires a heading sensor. 32 CMPS
shows direction in compass points such as N, N/E,
NNE, NE/N, etc.
Event MK: 5-5
Fish MK: 5-4
Tgt Lock MK: 5-3
OTHER MARKS Chooses how to display other marks, ±180° or 360°. R/B MK: 5-4
Trackball MK: 5-2
POSITION DATA Chooses how to display position, in latitude and
longitude or Loran TDs.
5-3
