4. INSTALLATION
32

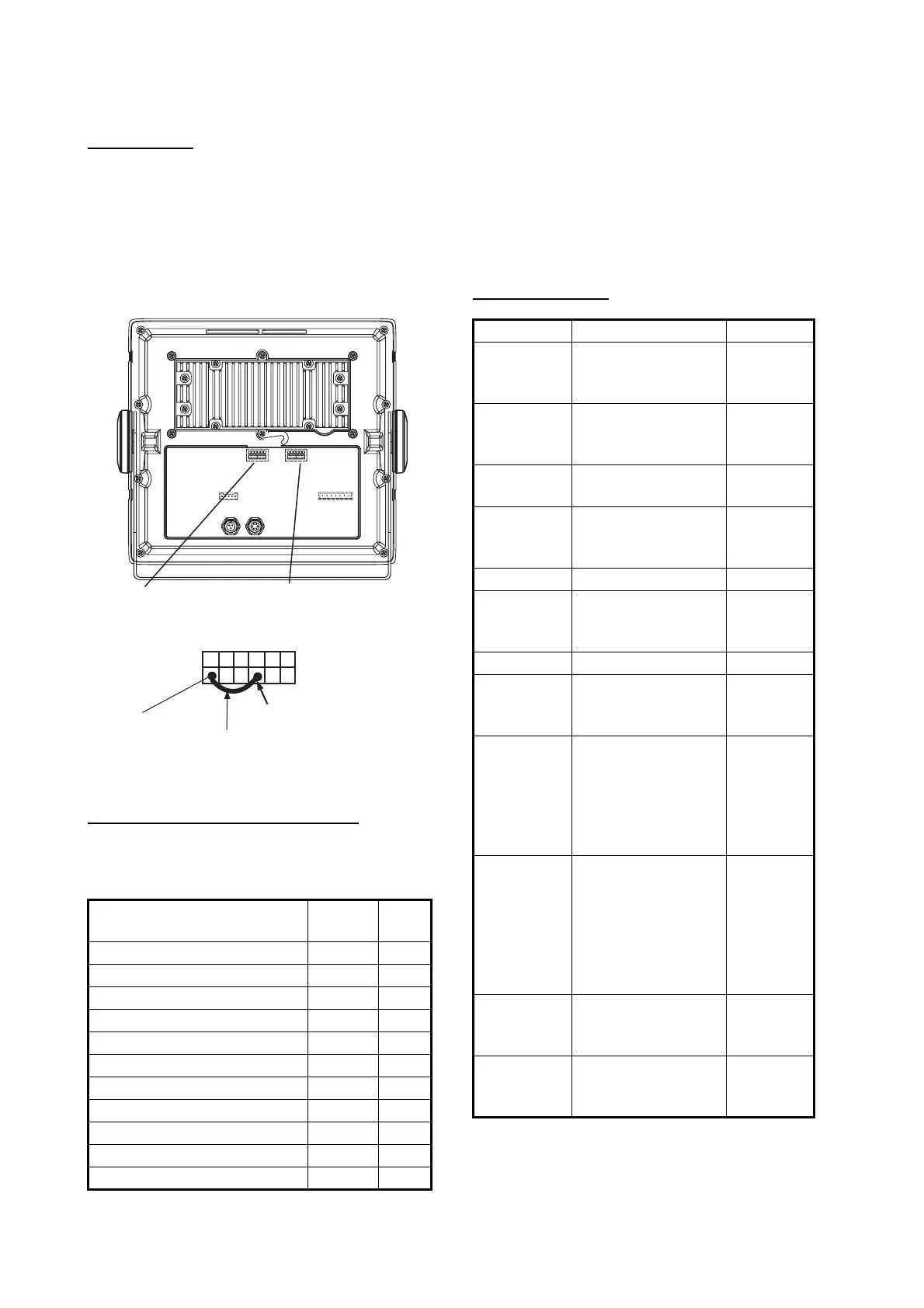

4.7 Transducer Setting
Tap location
Set the tap according to the transducer type.
Refer to the tap setting table below. The op-
tional strain relief plate provides easy access
to the WAGO connectors.
Transducer type and tap setting
The following table shows the transducers
programmed in the FCV-288.
4.8 Input/Output Sen-
tences
The table below shows the NMEA0183 data
sentences which can be input to and output
from your fish finder. The transmission speed
for both input and output is 4,800 bps. Data is
output at two-second intervals.
Input sentences
Type
Output
(kW)
Tap
50B-6 1 A
50B-6B 1 A
50/200-1T (50 kHz) 1 A
50B-9B 1 A
50BL-12HR 2 C
50BL-24HR 3 E
200B-5S 1 E
50/200-1T (200 kHz) 1 E
200B-8 2 D
200B-8B 2 D
200B-12H 3 C
E D C B A
Tap setting plug
(for high frequency,
200 kHz ONLY.)
Tap setting plug
(for low frequency,
50 kHz ONLY.)
Set this end in
applicable slot
according to
alphabet
indication.
Jumper
connection
Common
point
Display unit rear panel
(connector cover removed)
Sentence Data Remarks
GGA Time, Global posi-
tioning system
(GPS) fix data
GPS
position
GLL Geographic posi-
tion - latitude and
longi-tude
GPS
position
GNS GNSS position fix-
ing
HDG Ship's heading,
devi-ation, varia-
tion
HDT True heading
MDA Weather informa-
tion, atmospheric
pressure
MTW Water temperature
MWV Wind direction,
wind speed (true or
ap-parent)
RMA Recommended
mini-mum specific
LO-RAN-C data.
Latitude, longitude,
TD, ground speed
and course
Loran C
RMC Recommended
mini-mum specific
GPS/TRANSIT da-
ta. Lati-tude and
longitude, speed
over ground and
course over ground
GPS
VHW True/magnetic
bear-ing, speed
through water
VTG Speed over ground
and course over
ground
