1. HOW TO INSTALL THE UNIT
15
4. Fix the case with four M4x8 screws (supplied) to the flush mount plate.
5. Pass the cable from the CU through the bottom of the case.
6. Connect the cable to the port on the lid.
7. Attach the cable fixture (supplied) with two screws.
8. Fasten the cable to the cable fixture with the cable tie (supplied).
9. Reattach the lid to the case with four screws.

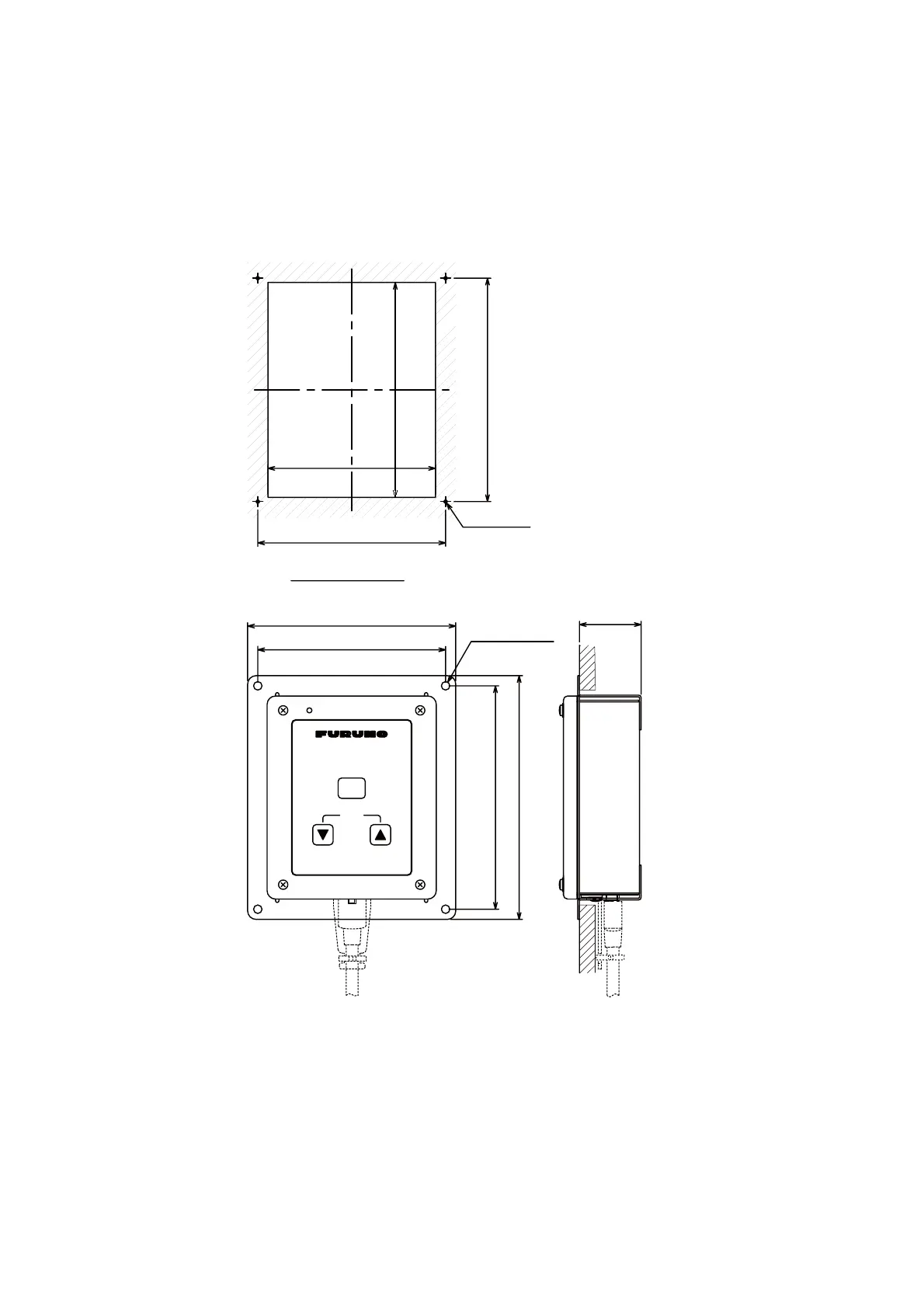

111±0.5 (4.37")
132±0.5 (5.20")
144 (5.67")
123 (4.84")
99±1 (3.90")
127±1 (5.00")
132±0.5 (5.20")
111±0.5 (4.37")
4-
φ
5 (0.20")
36.5 (1.44")
Inmarsat FleetBroadband
VOLUME
INCOMING INDICATOR
ACK
FIXING HOLES
CUTOUT DIMENSIONS
4-PILOT HOLES
