Configuration with the web interface
5-34

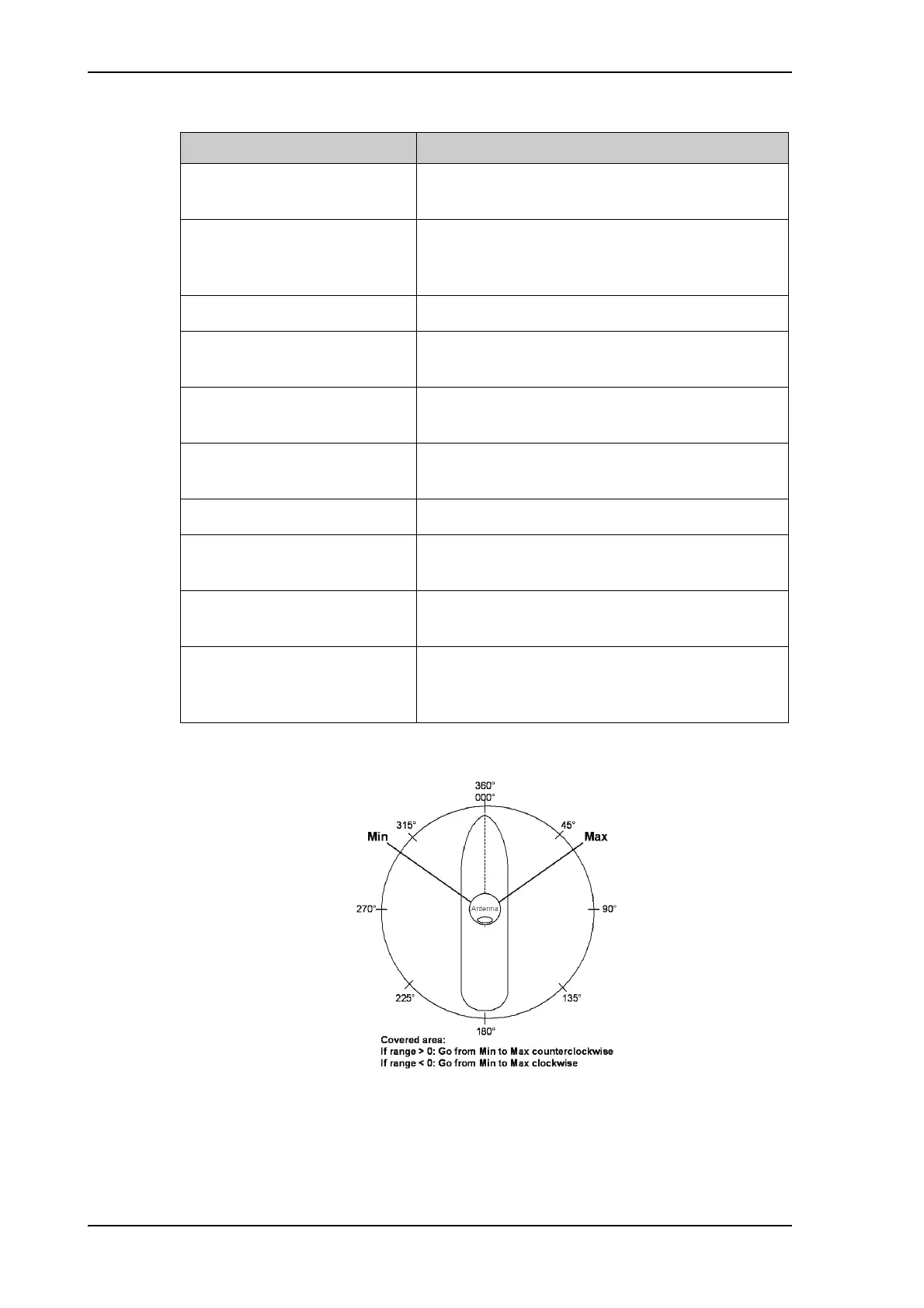

Figure 5-26: Statistics — how to read data for a range
Vsat.rx_lo_freq (GHz)
Vsat.tx_lo_freq (GHz)
Rx frequency of VSAT modem for this record.
Tx frequency of VSAT modem for this record.
Tracking.rf freq (GHz)
Tracking.type
Tracking RF frequency for this record.
Narrow filter, DVB-S2 decoder and VSAT modem
RSSI.
Sat.long (degree) Longitude position of the satellite.
Carrier rf.rx (GHz)
Carrier rf.tx (GHz)
Rx frequency of carrier for this record.
Tx frequency of carrier for this record.
Pol.rx
Pol.tx
Current Rx and Tx polarisation modes
Rx Lock (%)
Logon (%)
Rx locked and logon time, in percent, for the
sampling interval.
Pos Ok (%) Valid position, in percent of the sampling interval.
VMU Connection (%) Link with VSAT modem, in percent of the sampling
interval.
Blocking (%) Ship in blocking zone, in percent of the sampling
interval.
DualAntenna.mode
DualAntenna.logon_remote (%)
DualAntenna.active (%)
Shows the current mode and the time active and
remote logon.
Parameter recorded Description
Table 5-18: Parameters recorded in a statistics report (Continued)
