How to connect cables to DVI-D, VIDEO, AUDIO or USB ports
The above-mentioned ports are behind the connector cover on the rear panel. Access to the ports
and connect cables as shown in the procedure below. There are two methods, i.e., for waterproof-
ing or non-waterproofing.
For waterproofing
This method requires the optional connector boot (Type: OP19-7, Code No.: 001-028-090).

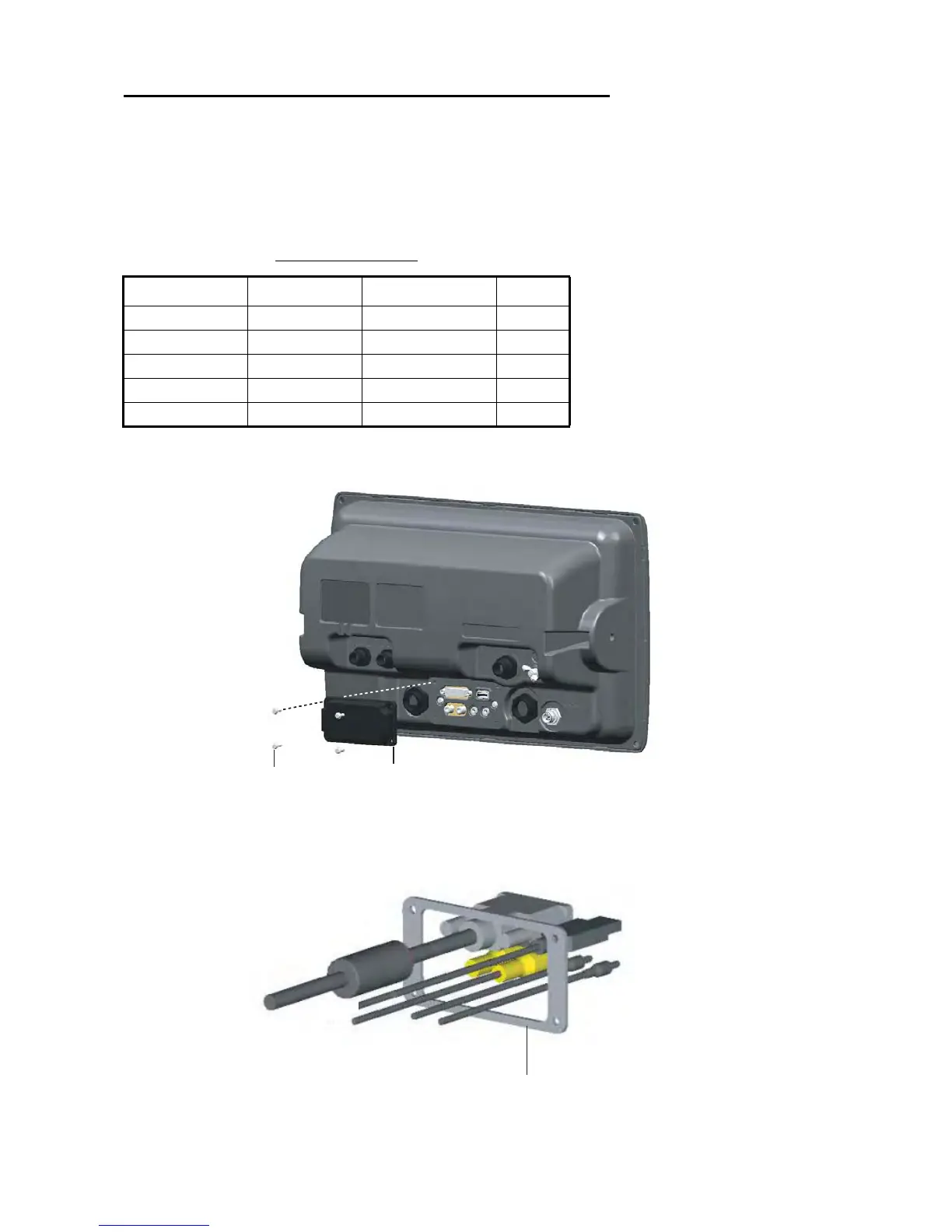

1. Unfasten four binding screws to remove the connector cover at the rear of the display unit.
Discard binding screws.
2. Pass DVI-D, VIDEO, AUDIO and/or USB cables through the fixing metal (supplied).
Contents of OP19-7
Name Type Code No. Qty
Boot cover 19-028-3141 100-342-642-10 1
Fixing metal 19-028-3142 100-342-650-10 1
Rubber stopper 19-028-3143 100-342-660-10 1
Cable tie CV-150B 000-167-183-10 1
Binding screw M3x10 000-162-662-10 4
Connector cover
Binding screw
(4 pcs.)
Fixing metal
To Next Page
