Global-Data Source tab

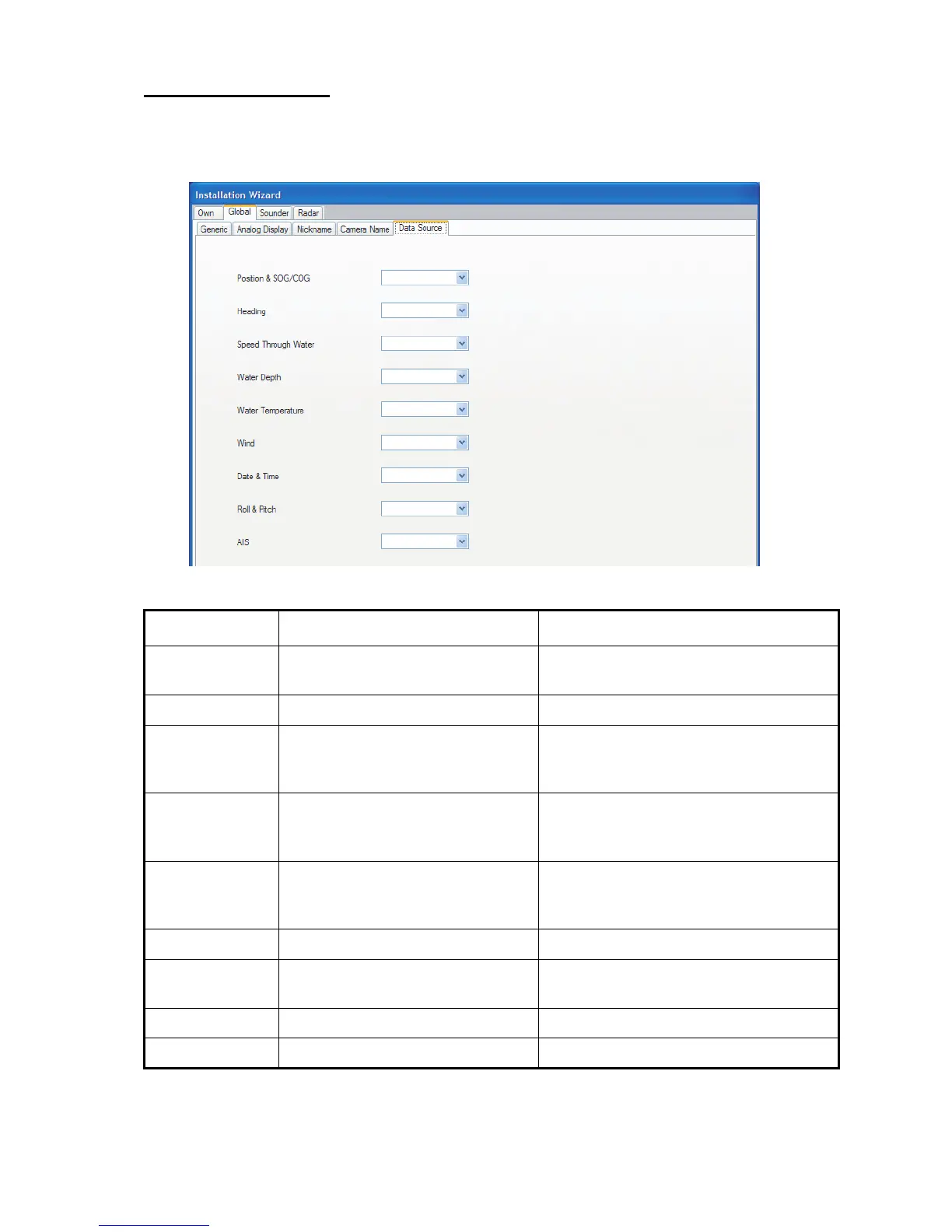

The Data Source dialog box shows the sources of various nav data. In case of multiple sensors
for a nav data item, for example, several position-fixing equipment, choose the sensor to use, with
the pull-down menu.
26.Click the [Next] button.
When the GP-330B or WS-200 is connected to the NMEA2000 network, go to the GPS Mode.
Set the WAAS, referring to the step 29. If not, go to step 30.
Item Description Setting
Position & SOG/
COG
Choose the position-fixing sensor to
use.
GP-320B, GP-310B, NMEA 2000 format
GPS
Heading Choose the heading sensor to use. SC-30, PG-500, PG-1000, Other
Speed Through
Water
Choose the speed (STW) sensor to
use.
Smart sensor (NMEA 0183), Speed sensor
(DFF), Smart sensor (NMEA 2000), Other
(NMEA 0183)
Water Depth Choose the depth sensor to use. Smart sensor (NMEA 0183), Speed sensor
(DFF), Smart sensor (NMEA 2000), Other
(NMEA 0183)
Water Tempera-
ture
Choose the temperature sensor to
use.
Smart sensor (NMEA 0183), Speed sensor
(DFF), Smart sensor (NMEA 2000), Other
(NMEA0183)
Wind Choose the wind sensor to use. FI-303, FI-501/502, WS-200, Other
Date & Time Choose the date and time source to
use.
GP-320B, GP-310B, SC-30, NMEA 2000
format GPS, Other
Roll and Pitch Choose the motion sensor to use. SC-30, WS-200, Other
AIS Choose the AIS equipment to use. FA-150, FA-30, Other
