1. INSTALLATION OF UNITS
1-2
1.1.1 Flush mounting
Follow the procedure below to mount the control unit in a console panel.
1. Prepare a cutout in the mounting location using the template sheet supplied.
2. Screw four threaded rods (supplied) into holes on the back of the control unit tightly.
3. Pass four threaded rods screwed at step 2 through holes made at step 1, flat washers,
spring washers and wing screws (supplied).
4. Screw four thumbscrews tightly.
Flat washer
Spring washer
Wing screw
Wing screw

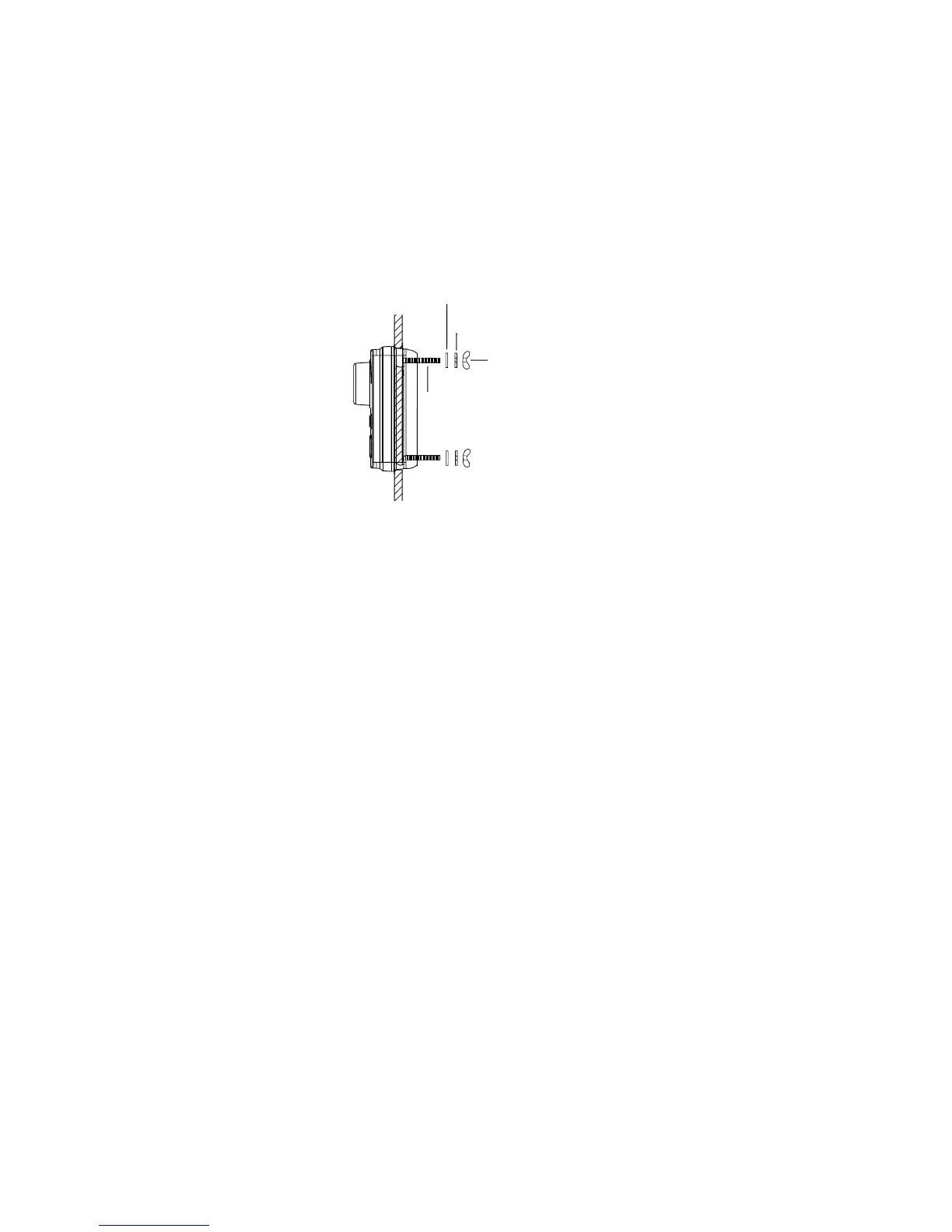

Flush mounting of control unit
