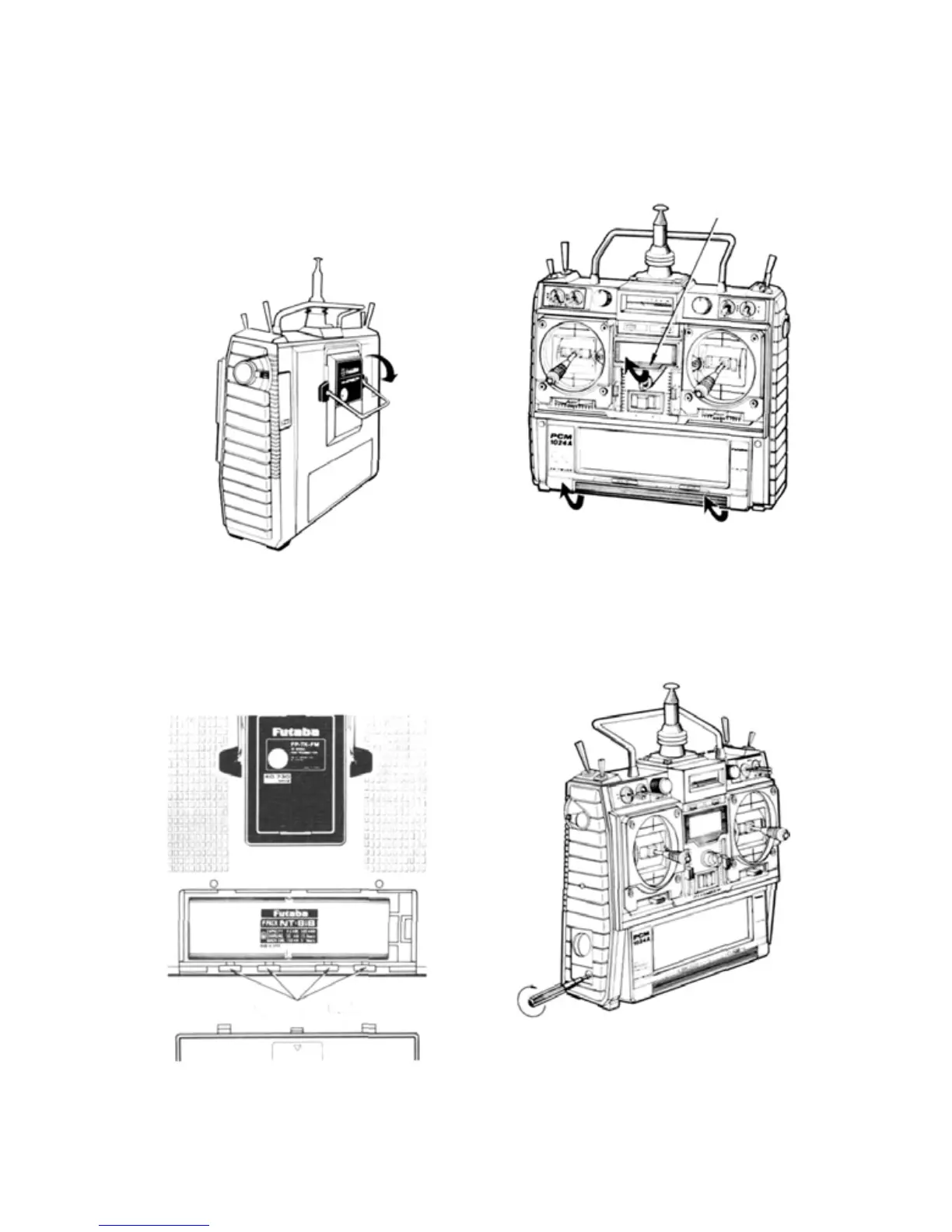

Mini Stand
Use this fold-out Mini Stand as shown when lay-
ing the transmitter down. This makes operation
easier and protects the transmitter and module.
Opening Trimmer Panel and Key Cover
NOTE:
Flip
up
at
both
sides
with
your
fingers. Do not try to open the
panel at the center. The cover
may be damaged.
Flip up with
the
tab
Transmitter Battery Pack Replacement
Remove the battery box cover. Lift out
the Nicd battery pack and disconnect the
connector.
Spare crystal holder
NOTE: Be careful not to drop the Nicd
battery pack.
Screen contrast adjustment
Adjust the screen contrast with the spe-
cial screwdriver provided. The contrast
increases when the adjusting screw is
turned clockwise.
[8]
