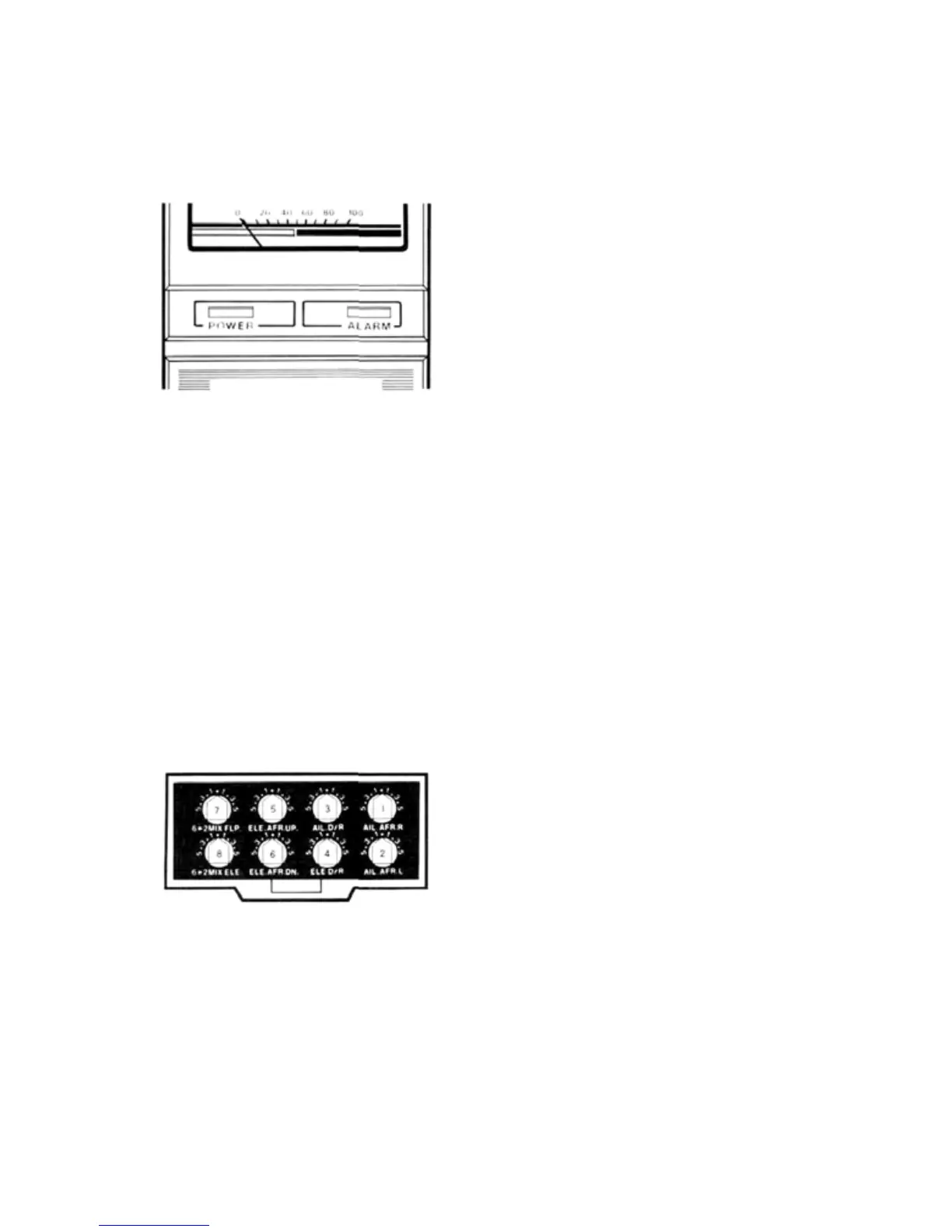

Monitor Lamps
4. ELE.D/R Elevator Dual Rate throw
adjustment
(This trimmer is ineffective if ELV D/R is not
set
to
ACT)
See D/R instructions page
5. ELE.AFR.UP Elevator up endpoint adjust-
ment.
6. ELE.AFR.DN Elevator down endopoint
adjustment.
7 . 6 - > 2MIX FLP. Airbrake Mixing Flap ad-
justment.
8 . 6 - > 2MIX ELE. Airbrake Mixing Elevator
adjustment.
(Trimmer No. 7 and 8 are ineffective if the
Airbrake Mixing program is not set to ACT).
See page
The POWER Lamp lights when the trans-
mitter power is turned ON.
The ALARM LED Lamp at the right:
• Blinks off once per minute during Fail
Safe data transmission.
• Blinks on and off when an activated
mixing switch is ON (Snap roll. Air
brake)
• Lights steadily at all other times.
Functions of Sub-Trimmers
Sub-trimmers are located on the front panel to
allow convenient trimming of programmed set-
tings on the field or during flight. Master the
computer functions before using them.
1. AIL.AFR.R Aileron right endpoint ad-
justment.
2. AIL.AFR.L Aileron left endpoint adjust-
ment.
3. AIL.D/R Aileron Dual Rate throw ad-
justment
(This trimmer is ineffective if AIL D/R is not
set
to
ACT)
See D/R instructions page
[9]
