FUTABA 9z - Figure 18 Assembling a New Joystick (Note: DIY Strengthening Collet Modification); Figure 19 Remove the Vertical Axis POT Retaining Plates and Withdraw the POT

V
FUTABA 9Z
THE UNOFFICIAL WORKSHOP MANUAL
WARNING: THE INFORMATION IN THIS MANUAL IS FOR INFORMATION PURPOSES ONLY AND MAY BE INCORRECT, CAUSE DAMAGE
TO YOUR RADIO OR INJURY TO YOURSELF AND OTHERS. IF YOU USE THIS MANUAL YOU DO SO SOLEY AT YOUR OWN RISK.
www.jamesandtracy.co.uk
Copyright 2012 jamesandtracy.co.uk
Page 27 of 84

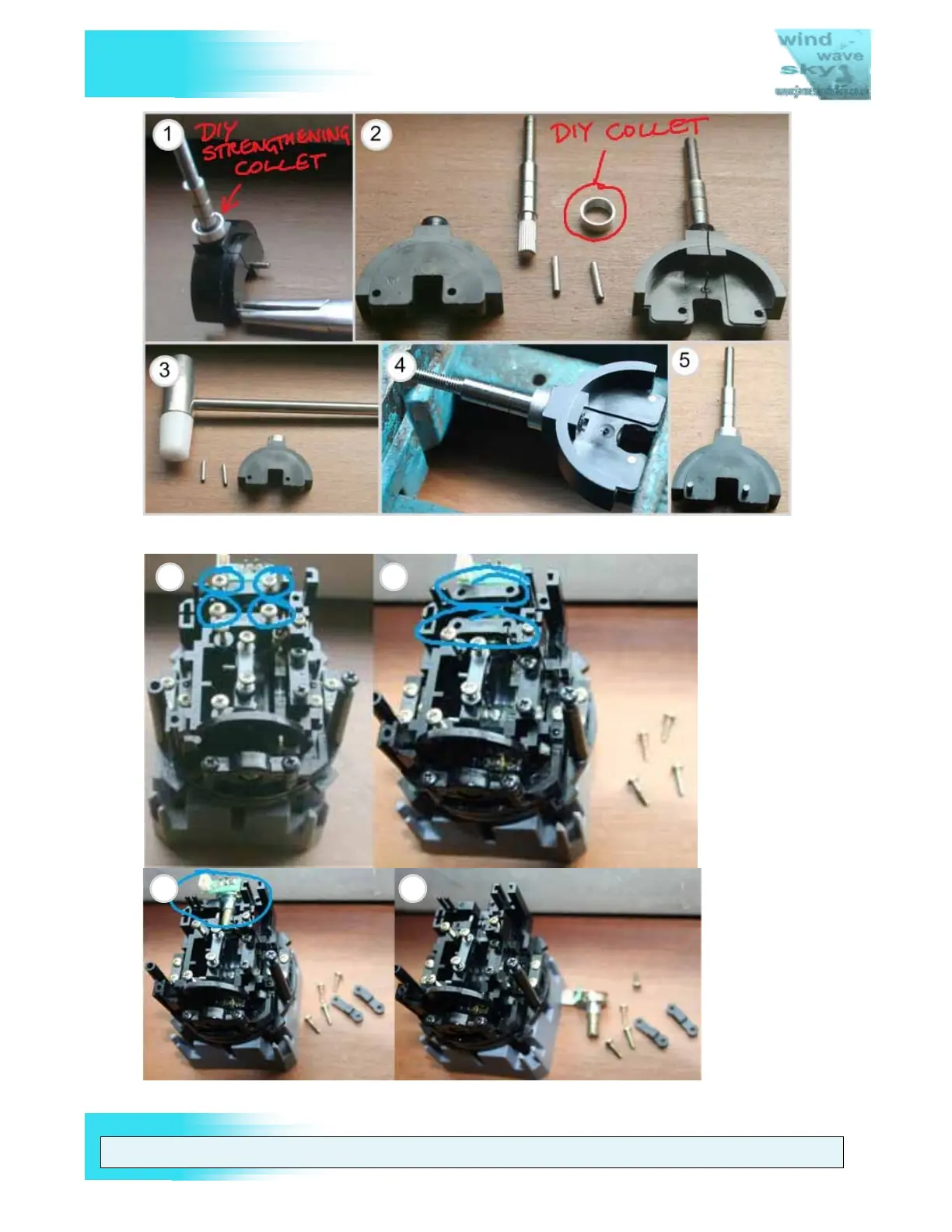

Figure 18 Assembling a new joystick (note: DIY strengthening collet modification)
1 2
3 4
Figure 19 Remove the vertical axis POT retaining plates and withdraw the POT
