FUTABA 9z - Figure 55 Removing the Comfort Grips; Figure 56 Removing the Bottom Cover

V
FUTABA 9Z
THE UNOFFICIAL WORKSHOP MANUAL
WARNING: THE INFORMATION IN THIS MANUAL IS FOR INFORMATION PURPOSES ONLY AND MAY BE INCORRECT, CAUSE DAMAGE
TO YOUR RADIO OR INJURY TO YOURSELF AND OTHERS. IF YOU USE THIS MANUAL YOU DO SO SOLEY AT YOUR OWN RISK.
www.jamesandtracy.co.uk
Copyright 2012 jamesandtracy.co.uk
Page 60 of 84

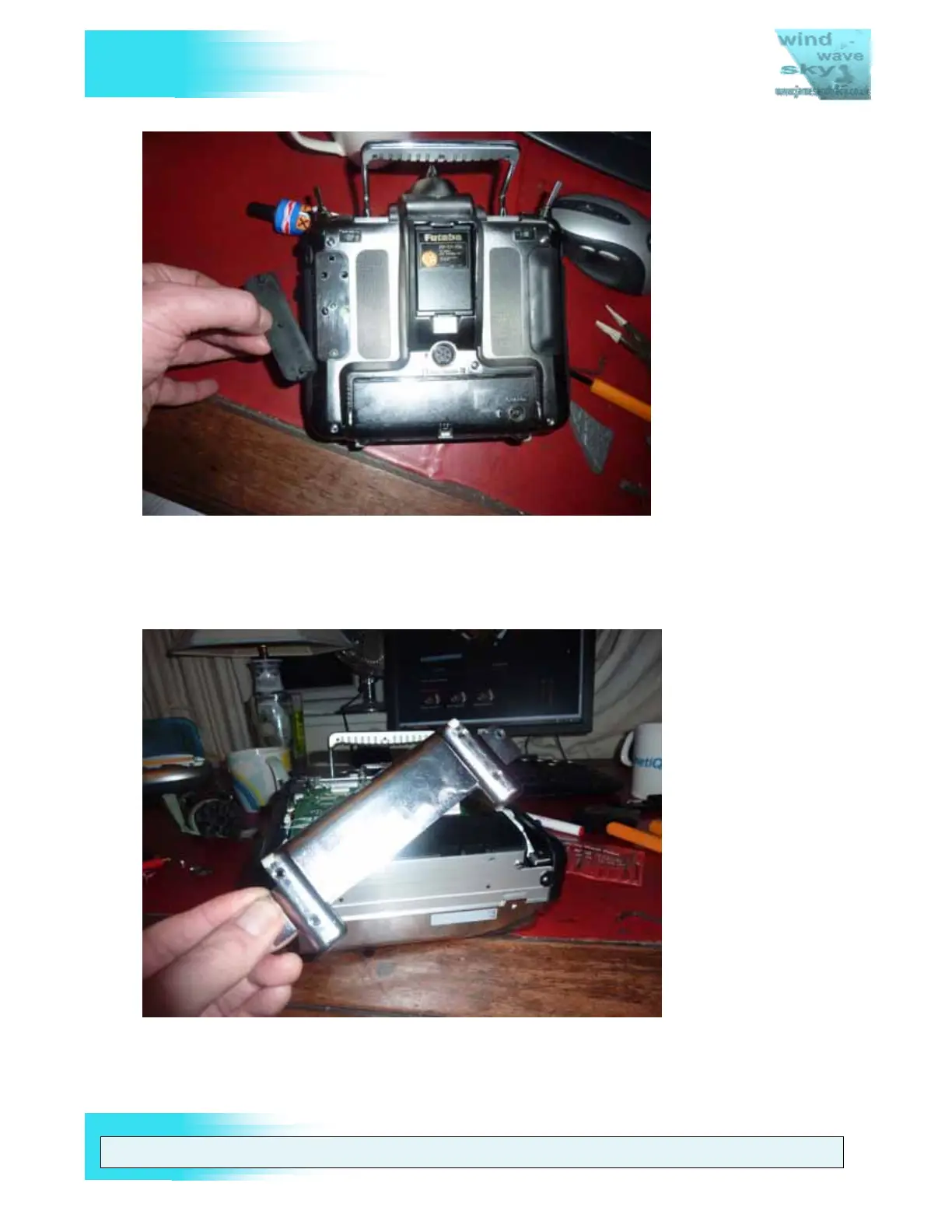

Figure 55 Removing the comfort grips
2. Remove the case bottom cover
Warning: Do not skip this step. Failure to remove the bottom cover is one of the
primary reasons why people find reassembling the 9Z case back such a nightmare!
Figure 56 Removing the bottom cover
