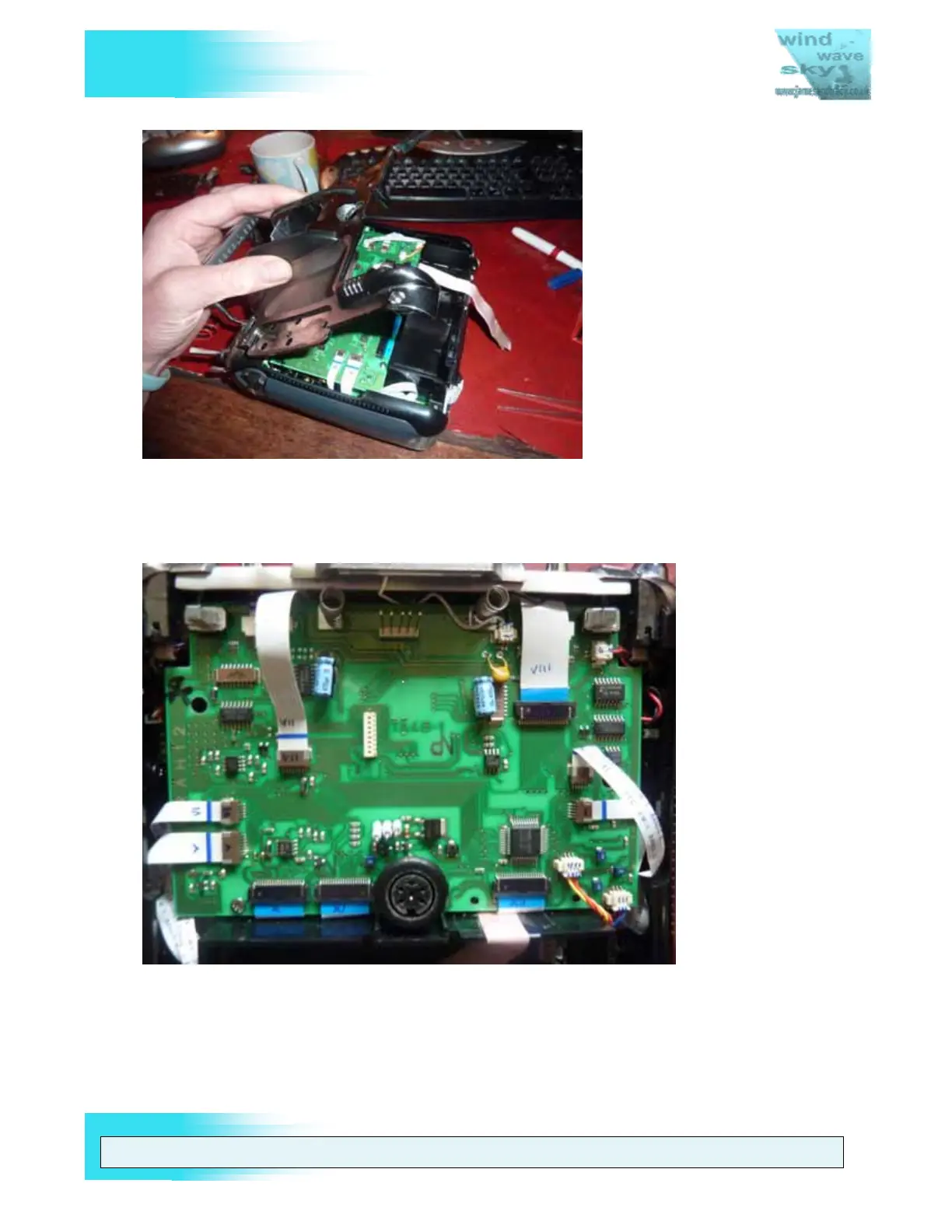

Figure 58 Lever up back cover
5. As depicted in Figure 59, label all ribbon cables on the main PCB that is now
exposed. You should know where and how to refit each and every one so take a
photo with a camera.
Figure 59 Label all ribbons and cables on the PCB
This completes Stage 2 disassembly
