FUTABA CGY755 - Mounting the CGY(CGY760 R;CGY755)

18
AIL ----------N
ELE --------- R
RUD --------N
AIL ----------R
ELE --------- N
RUD --------N
AIL ----------N
ELE --------- N
RUD --------R
AIL ----------R
ELE --------- R
RUD --------N
AIL ----------N
ELE --------- N
RUD --------N
AIL ----------R
ELE --------- R
RUD --------N
AIL ----------N
ELE --------- R
RUD --------R
AIL ----------R
ELE --------- N
RUD --------R
AIL ----------R
ELE --------- N
RUD --------R
AIL ----------N
ELE --------- N
RUD --------N
AIL ----------R
ELE --------- R
RUD --------N
AIL ----------N
ELE --------- R
RUD --------R

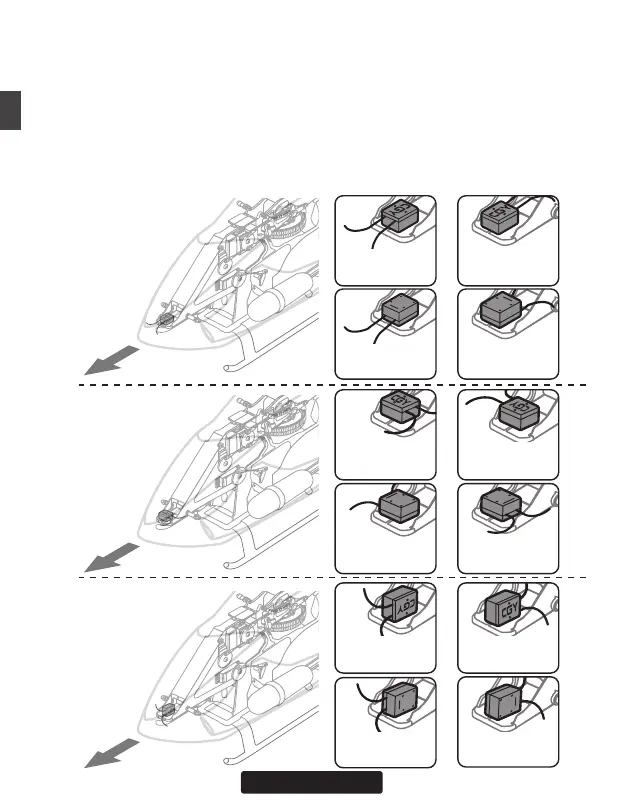

Mounting The CGY
The CGY760R/CGY755 can be mounted in the orientation shown below unless it is installed so
that the roll and pitch detection axis are aligned with the model. However, if there is a deviation
of , equal to, or greater than 1/2 degrees, performance will degrade. In this step, please pay special
attention to ensure optimum ight performance. Refer to the installation example below and select
the gyro mounting direction with
"
Gyro Set Dir
"
of the
"
SWH BASIC
"
menu.
*The surface with the
"
CGY
"
mark in the gure is the top (LED) side of the CGY.
*This is when the reverse function of each axis of the transmitter is initialized.
Gyro Set Dir--- 1
Gyro Set Dir--- 2
Gyro Set Dir--- 3
CGY755 has no antenna
