FUTABA CGY755 - SWH. DETAIL MENU (Swash Detail Setting)

81
SWH
.
D
ETAIL
M
ENU
(
SWASH DETAIL SETTING
)
The swash detail setting is used to keep the swash plate level at high and low col-
lective pitch to cyclic interactions and cyclic pitch to collective pitch interactions.
"
SWH. DETAIL
"
screen from the
"
EXPERT MENU 3D
"
screen.

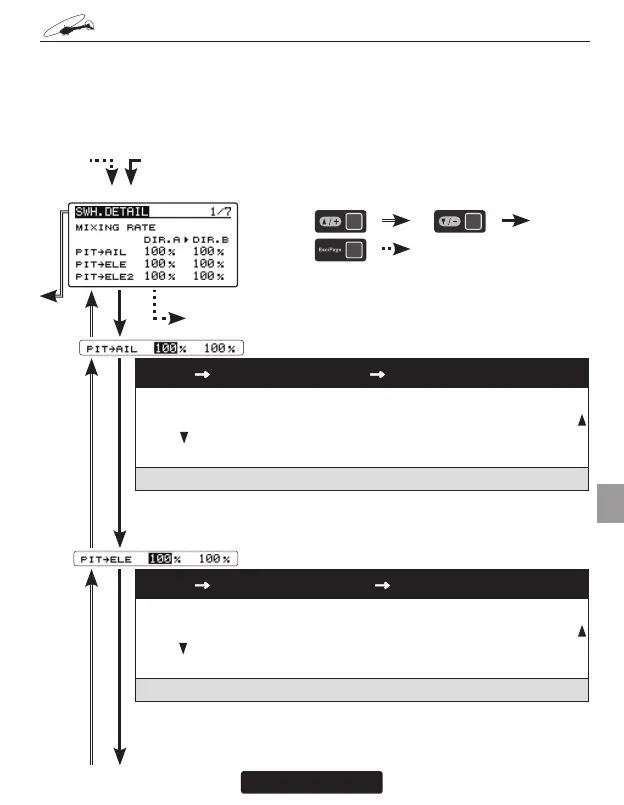

SWH. DETAIL screen 1/7
From 2/2 From the "RESET" of
FLT. DETAIL screen 7/7
Go to 2/7 from any cursor position
: :
:
(1) PIT AIL: collective pitch aileron mixing rate
Going from MID to HIGH and MID to LOW collective pitch check that the
swash plate is traveling flat throughout the entire range. Using the [
/+] or [ /-] key to level the swash plate on the aileron axis to the middle
point by raising or lowing the aileron servo.
Setting ranges: 30 ~ 150% Initial value: 100%
(2) PIT ELE: collective pitch elevator mixing rate
Going from MID to HIGH and MID to LOW collective pitch check that the
swash plate is traveling flat throughout the entire range. Using the [
/+] or [ /-] key to level the swash plate on the elevator axis to the middle
swash position by raising or lowering the elevator servo.
Setting ranges: 30 ~ 150% Initial value: 100%
