S.BUS BASIC SETTING
)
The
"
SBUS BASIC
"
screen is accessed via the
"
BASIC MENU
"
screen. Set the
CH for each function according to the transmitter to be used. Any unused functions
should be set to INH (Inhibited). For example, if the Gain A/E and Gain RUD re-
mote gain functions are not going to be used, then set them to [INH]. The CGY760R/
CGY755 will then allow you to make gain adjustments within the respective menu.
WARNING
Always verify that the S.BUS function as-
signments match your transmitter’s function
(in the FUNCTION menu) assignments. If any
changes are made within the transmitter func
-
tion assignments, then it will also be neces-
sary to make the changes within the S.BUS
function assignments. To change the channel,
CGY and GPB-1 must be connected.
From 3/3
Go to 2/3 from any
cursor position
From the "RESET" of
SBUS BASIC screen 3/3
(1) S. BUS connection: AIL (Aileron) channel
Move the cursor to "AIL CH #" by pressing the [
/
+] or [
/
-] key and
press the [Enter] key to enter the setting mode. Use the [
/
+] or [
/
-]
key to set the aileron channel of the transmitter. When you are done,
press [Enter] key to finish. Follow this procedure to make the adjust-
ments to to all channels below.
(2) S. BUS connection: ELE (Elevator) channel
Using the [
/
+] or [
/
-] key to set the correct channel number.
(3) S. BUS connection: THR (Throttle) channel
Using the [
/
+] or [
/
-] key to set the correct channel number.
(4) S. BUS connection: RUD (Rudder) channel
Using the [
/
+] or [
/
-] key to set the correct channel number.
(5) S. BUS connection: PIT (Pitch) channel
Using the [
/
+] or [
/
-] key to set the correct channel number.

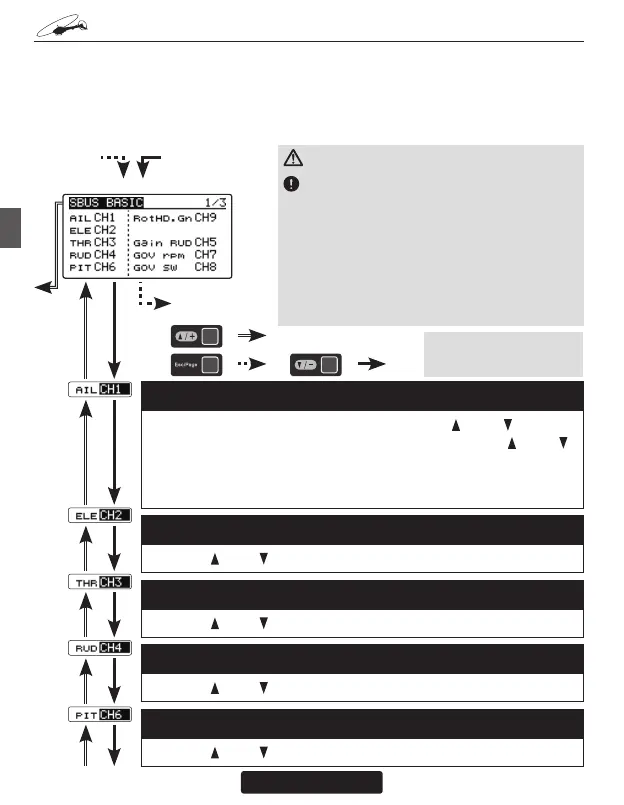

SBUS BASIC screen 1/3
:
: :
Settings (all in common):
1 to 16
ch, DG 1, DG 2, INH
