＜ Linkagemenu ＞
Tapthevaluesyou
wishtoadjustand
valueinputbuttons
willappearon-screen.
Travelrate Limitpoint
Nextpage
Ch7-16
Left/Top Right/Bottom
30 〜
140%
30 〜
140%
Indicatesthecurrent
directionofthestick,etc.

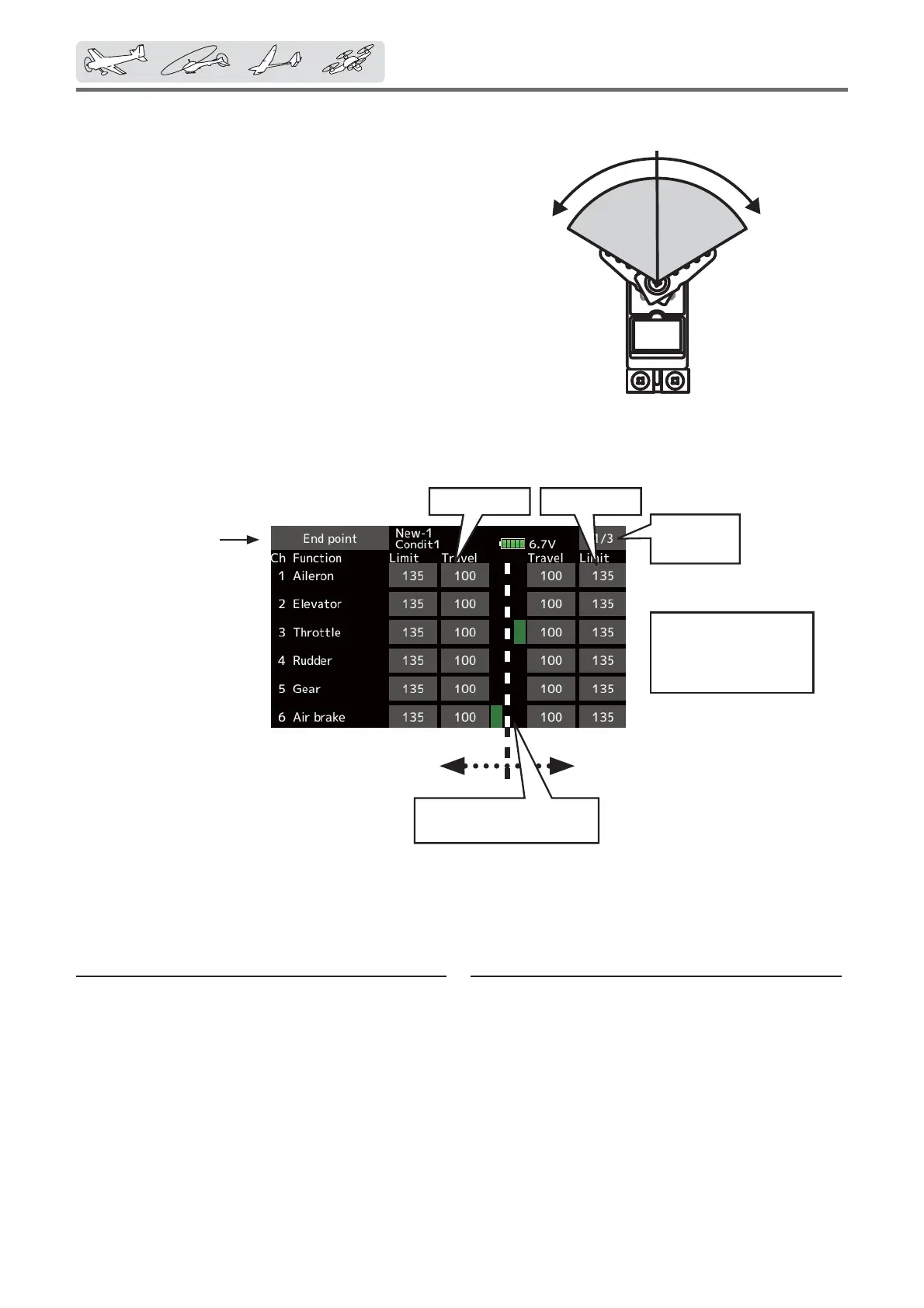

ŏ Tap the [End point] button in the
Linkage menu to call the setup
screen shown below.
Endpoint
Sets the travel, limit point.
(Thedisplayscreenisanexample.Thescreendependsonthemodeltype.)
The End point function adjusts the left and right
servo throws, generates differential throws, and
will correct improper linkage settings.
The travel rate (normal full stick movement at
high rates) can be varied from 30% to 140% in
each direction on channels 1 to 16. Also, the limit
point (how far the servo travels when a mix is
involved) where servo throw stops may be varied
from 0% to 155%.
Servo travel adjustment
1. Tap the travel button of the channel you
want to set. Value input buttons appear on
the screen.
2. 8se these buttons to adjust the rate.
ŏInitial value: 100
ŏAdjustment range: 30~140
3. Repeat the procedure above for each rate.
Limit point adjustment
1. Tap the limit button of the channel you want
to set.
2. 8se the value input buttons to adjust the limit
point.
ŏInitial value: 135
ŏAdjustment range: 0~155
3. Repeat this procedure for each limit point.
ŏReturn to
Linkage menu
