Removing:
1. Lift the front rigging vertically up such that the
hanger bushing clears the frame front pin.
2. The rigging should be placed near the
commode so when needed it may be placed
back onto the commode
3. Repeat this procedure with the other front
rigging assembly.

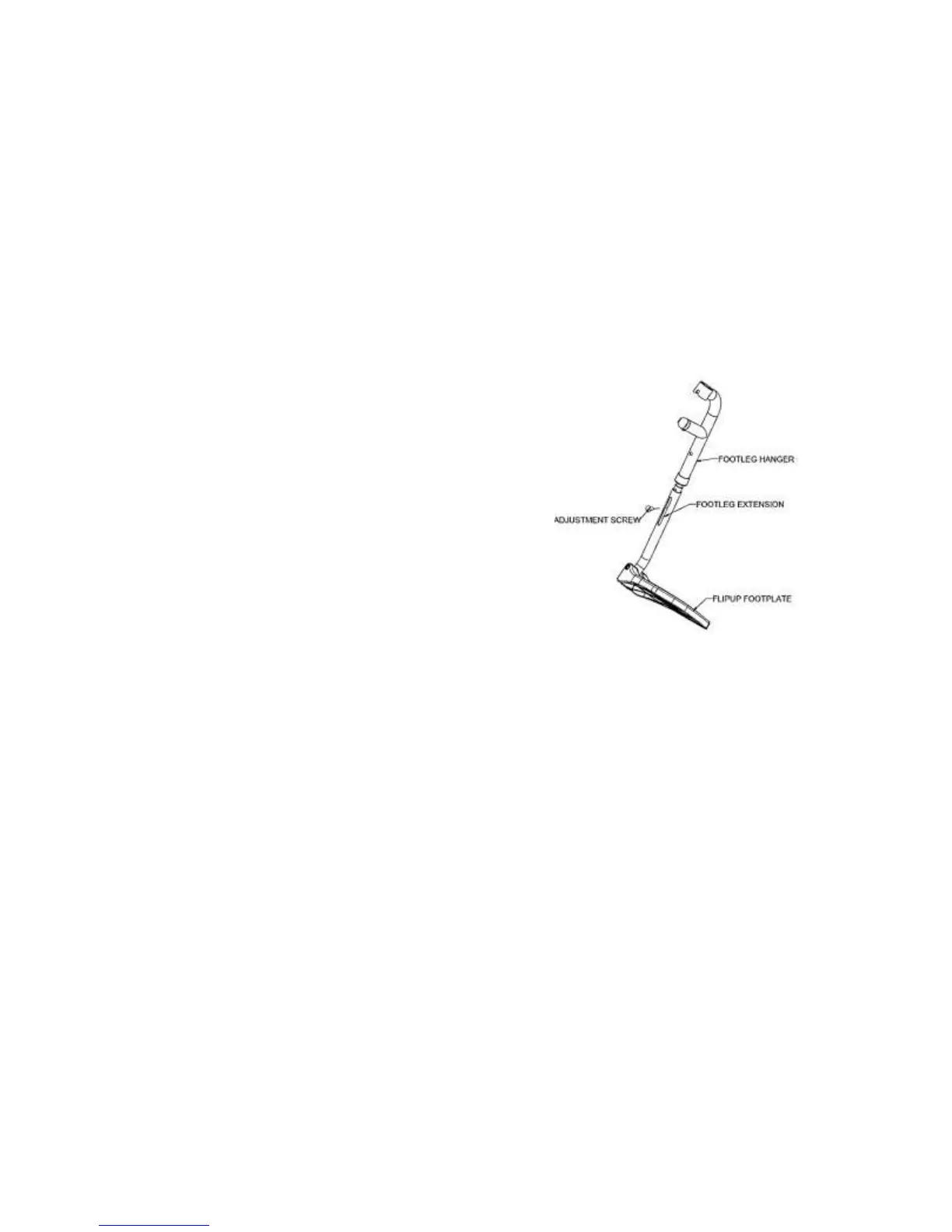

Adjusting Footplate Height
1. Remove the front rigging assembly. Refer to
INSTALLING/REMOVING THE FRONT
RIGGING in this section of the manual.
2. Loosen the 1/4-20 x 1/2” socket head button
screw which fastens the footrest hanger to the
footrest extension. Slide the footrest extension
up or down to desired height. There should be
approximately 2-3/8” of range for the footrest
extension.
3. Re-tighten socket head button screw.
4. Repeat this procedure with the other footplate
assembly.
